Mounting the Camera

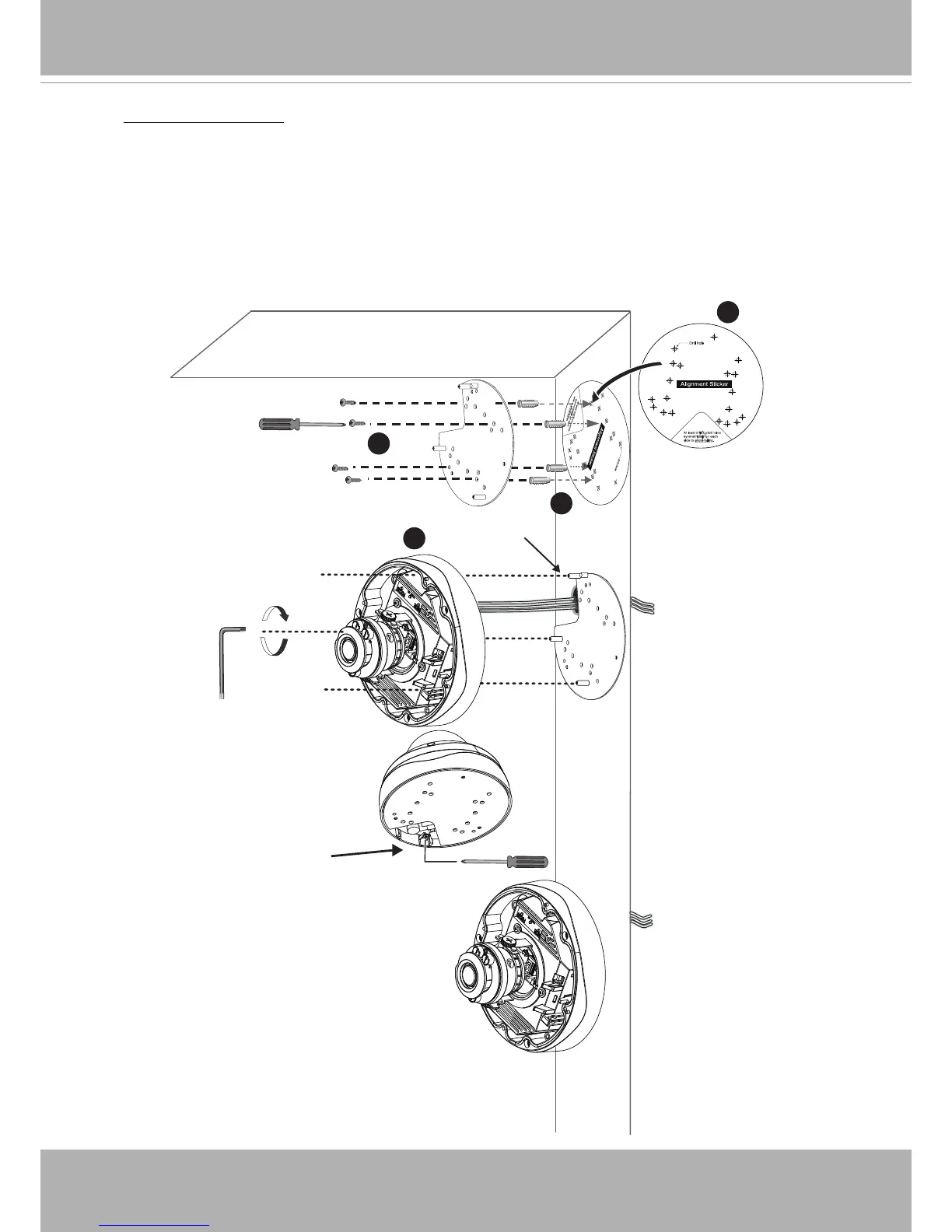

1� Attach the supplied alignment sticker to the wall�
2� Using the circle marks on the sticker, drill at least 2 pilot holes symmetrically on each
side into the wall� Then hammer the four supplied plastic anchors into the holes�
3� Through three or four holes on the mounting plate, insert the supplied screws into the
corresponding holes and secure the mounting plate with a screwdriver�
4� Feed the cables through the triangular cutout A or side opening B� If you want to use hole
B, remove the side cover using a screwdriver� Secure the camera base to the mounting
plate with three supplied screws�
1
2
3
A
4
B
