Physical Description

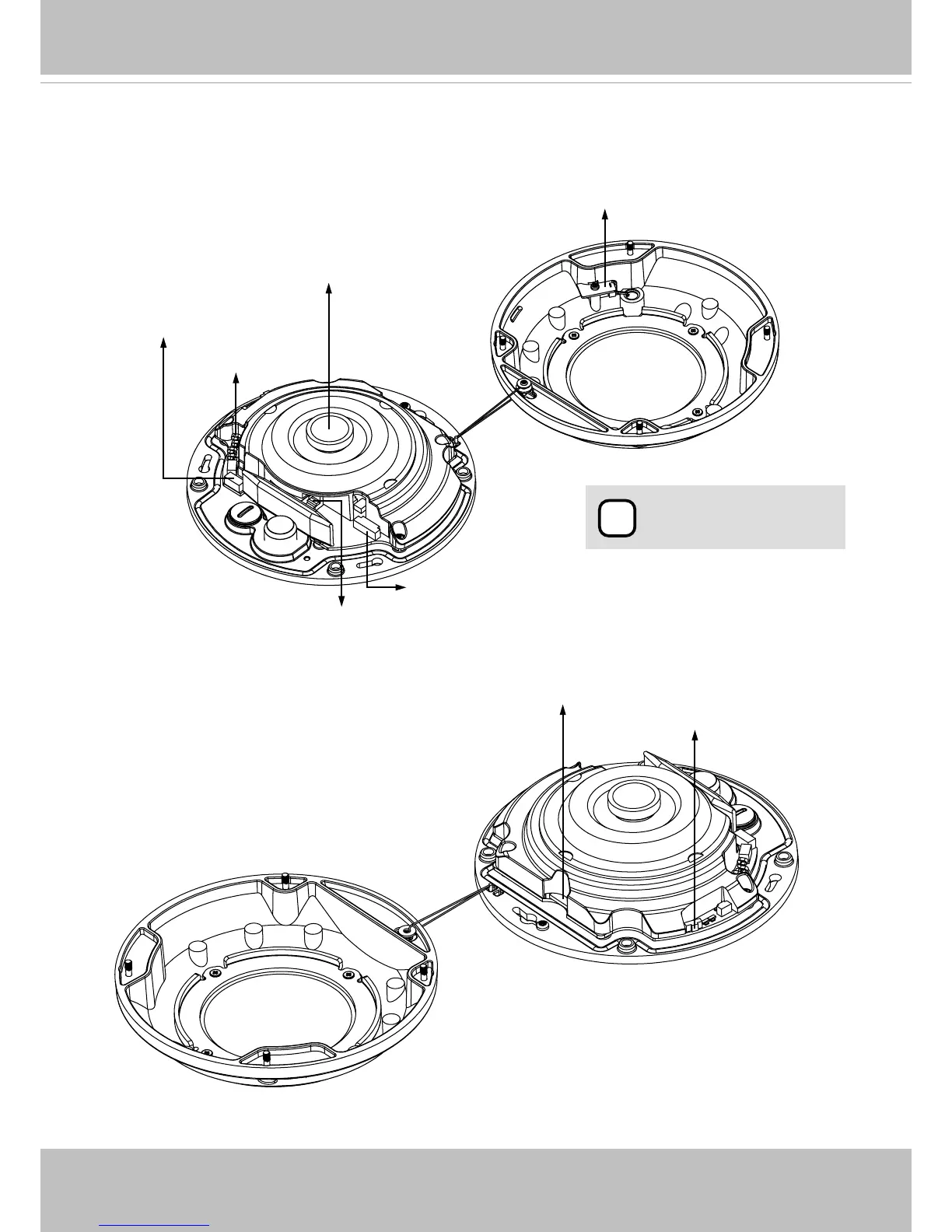

Inner View
Pin Header (J7)
Spring Contacts
(A)
Lens
Contacts for Internal Microphone (B)
Pin Header (J6)
Ethernet 10/100 RJ45 Socket
Align (B) to (A) when
attaching the dome cover
i
MicroSD/SDHC/SDXC Card Slot
Reset Button
