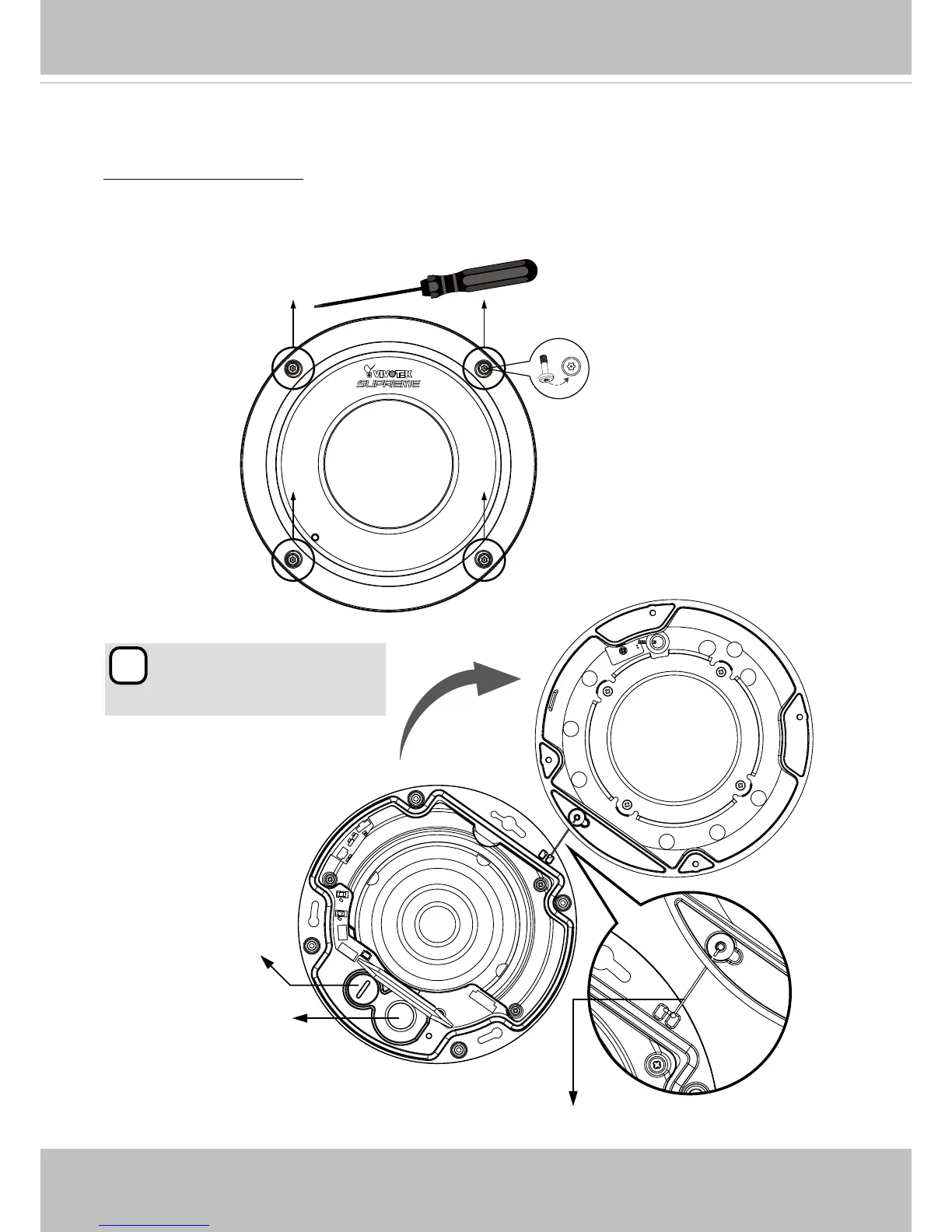

First, use the included T20 hex key stardriver to loosen the four screws and detach the dome
cover from the camera base. Follow the steps below to install the camera either to a ceiling or a
wall.
Hardware Installation
Opening Dome Cover
Tamper-proof Screw
Dome Cover Retainer
Rubber Stopper on the
Hole for Power & IO
Cables
Rubber Seal Plug
for RJ45 Ethernet
Cable
i
Connect the supplied power &
IO cables if your switch does
not support PoE.
Dome Cover Retainer
