Main Page
This chapter explains the layout of the main page� It is composed of the following sections:
VIVOTEK INC� Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live
Video Window�
VIVOTEK INC. Logo
Click this logo to visit the VIVOTEK website�
Host Name
The host name can be customized to t your needs. For more information,
please refer to
System on page
29�
Camera Control Area
Video Stream: This Network Cmera supports multiple streams (stream 1 ~ 4) simultaneously� You can
select either one for live viewing� For more information about multiple streams, please refer to page 64
for detailed information�
Digital Output: Click to turn the digital output device on or off�
IR Illuminators: Click to turn on the IR LEDs for 20 seconds�
PTZ Panel: This Network Camera supports both “digital“ (e-PTZ) and “mechanical“ pan/tilt/zoom control.
Please refer to Camera Control on page 75 for detailed information�
Global View: Click on this item to display the Global
View window� The Global View window contains a full
view image (the largest frame size of the captured
video) and a oating frame (the viewing region of the
curruent video stream)� The floating frame allows
users to control the e-PTZ function (Electronic
Pan/Tilt/Zoom). For more information about e-PTZ
operation, please refer to E-PTZ Operation on page
80� For more information about how to set up the
viewing region of the current video stream, please
refer to Viewing Windows on page 64�

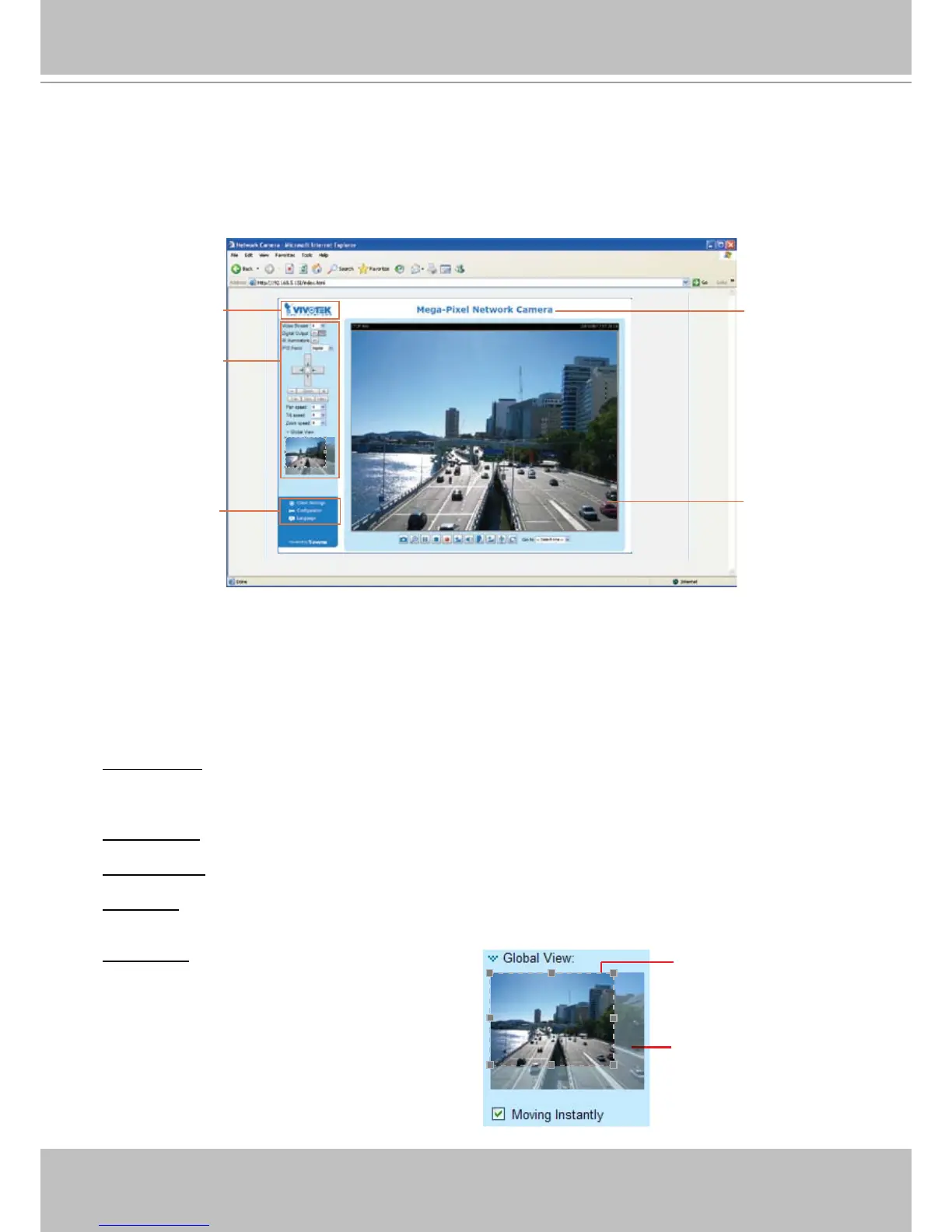

VIVOTEK INC. Logo
Camera Control Area
Configuration Area
Host Name
Live View Window
The viewing region of
the curruent video
stream
The largest frame size
