VIVOTEK
12 - User's Manual

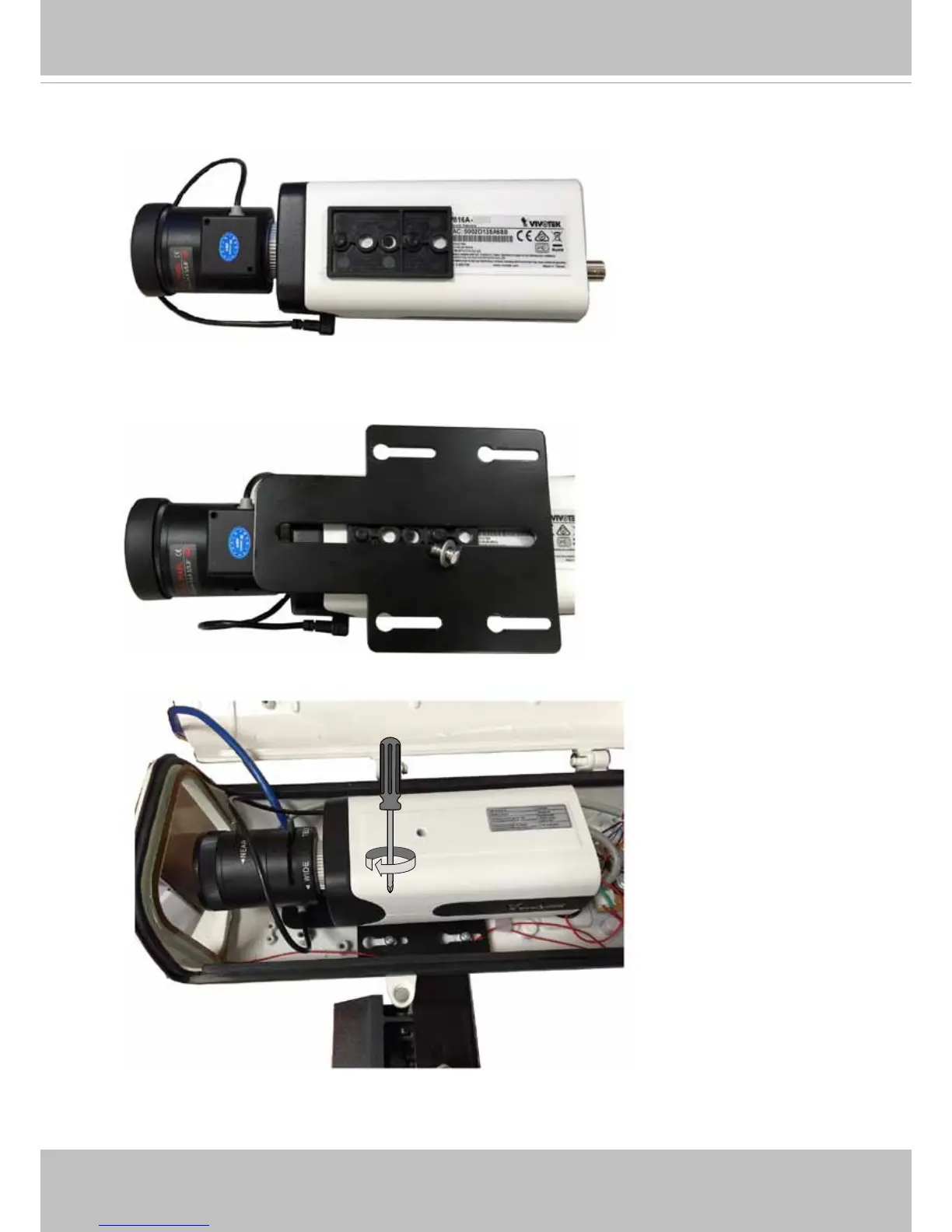

9. Assemble the camera components, e.g., the CS ring and lens module. Align the buffer
pad with the mounting hole at the bottom of the camera (the label side).
LPC
10. Place the mounting plate on top of the buffer pad and then secure it to the camera. You
may need adjust its position so that the lens module can ush align with the tempered
glass.
11. Secure the camera to the enclosure by securing screws through the keyhole slots.
