VIVOTEK
User's Manual - 11

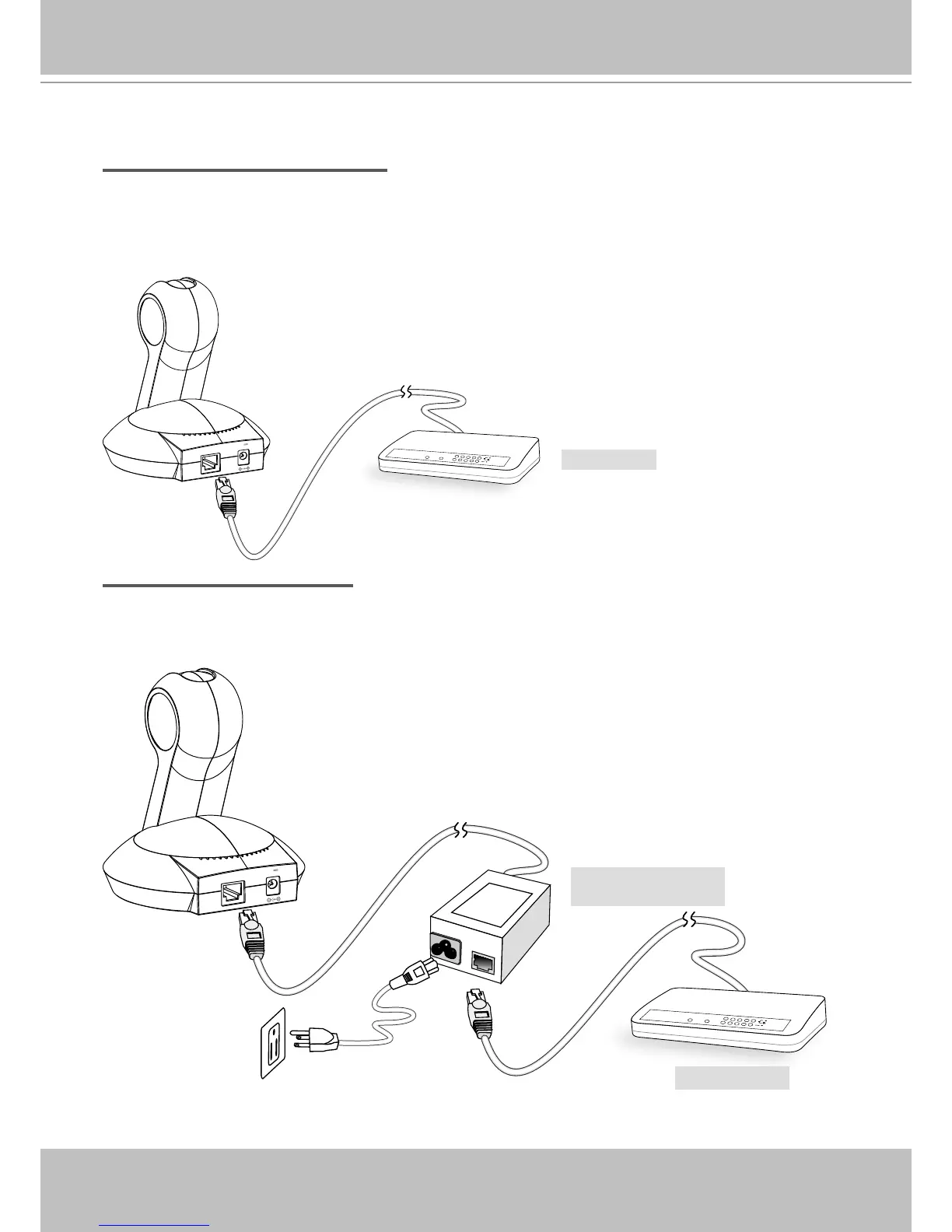

Set up the Network Camera through Power over Ethernet (PoE) (PT8133)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, which allows it to be powered via a single Ethernet
cable. If your switch/router supports PoE, refer to the following illustration to connect the
Network Camera to a PoE-enabled switch/router.
12V
1.5A
ETHERNET
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
When using a non-PoE switch
If your switch/router does not support PoE, use a PoE power injector (optional) to connect
between the Network Camera and a non-PoE switch/router.
PoE Switch
12V
1.5A
ETHERNET
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Non-PoE Switch
PoE Power Injector
(optional)
power + data transmission
