STRUCTURE - START-UP STRUCTURE - START-UP
8.4 MM RF
6.1 MM RF
a) b) c)
*optional accessories, not included

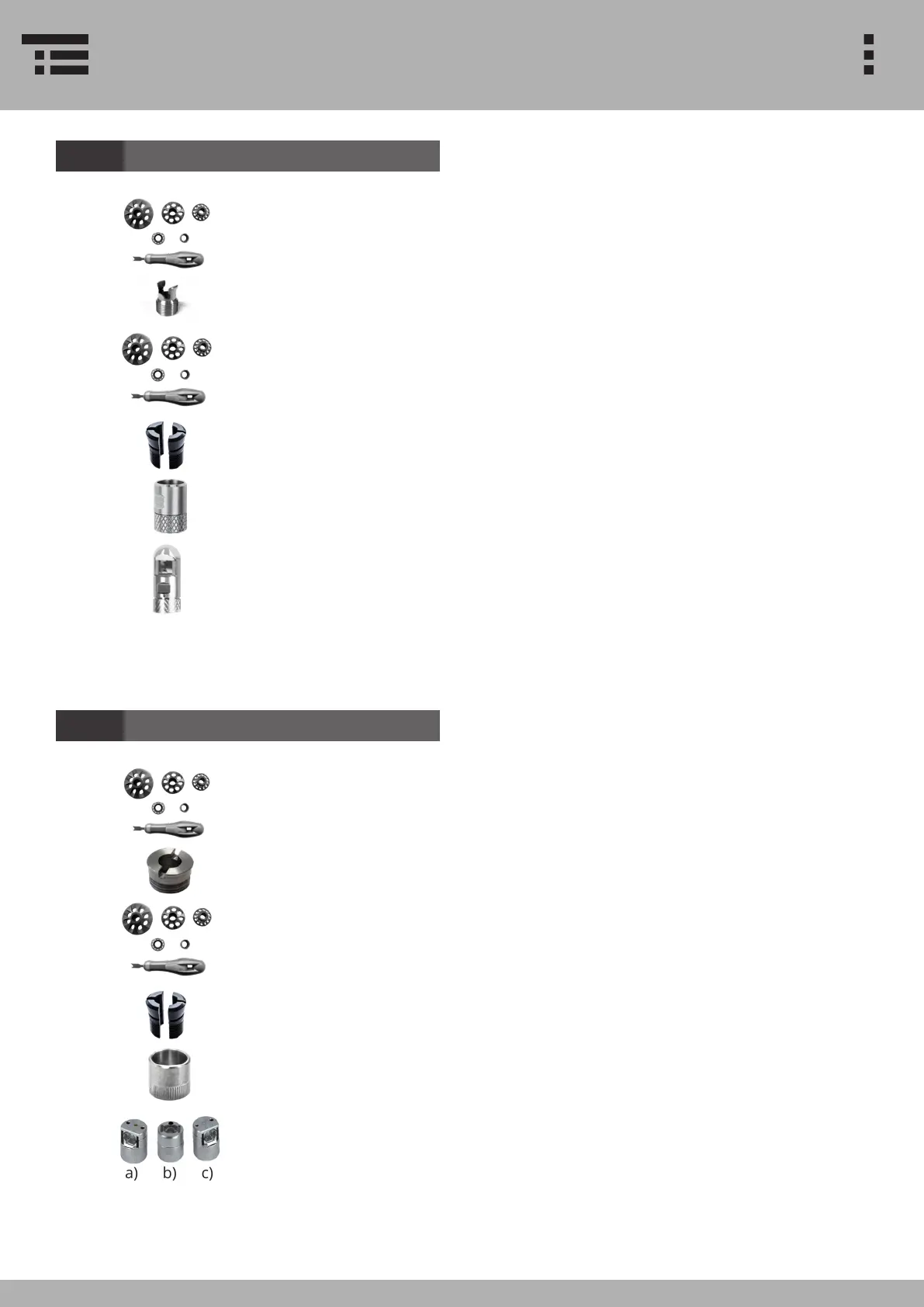

1.
Centering device tool kit* for 6.1 mm RF non articulation probes.
2 weight optimized centering discs:
44 mm, 19 mm.
Mounting on camera head, incl. mounting tool
1.1.
Centering device tool kit for 6.1 mm RF non articulation probes:
Mounting clip for centering disc
2.
Centering device tool kit* for 6.1 mm RF X-WAY probes.
5 weight optimized centering discs:
60 mm, 44 mm , 34 mm, 24 mm, 17 mm.
Mounting on camera head, incl. mounting tool.
2.1
Centering device tool kit for 6.1 mm RF X-WAY probes:
Mounting clip for centering disc.
3. Camera head protection ring (for operation without side view optic).
4.
Optical adapters*
a) side view optic, b) wide angle optic, c) side view with wide angle optic
1.
Centering device tool kit* for 8.4 mm RF non articulation probes.
5 weight optimized centering discs:
60 mm, 44 mm, 34 mm, 24 mm, 17 mm.
Mounting on camera head, incl. mounting tool.
1.1
Centering device tool kit for 8.4 mm RF X-WAY probes:
Mounting clip for centering disc
2.
Centering device tool kit for 8.4 mm RF X-WAY probes.
5 weight optimized centering discs:
60 mm, 44 mm, 34 mm, 24 mm, 17 mm.
Mounting on insertion tube, incl. mounting tool.
2.1
Centering device tool kit for 8.4 mm RF non articulation probes:
Mounting clip & O-ring for centering disc.
3. Camera head protection ring (for operation without side view prism).
4. 90° side view prism*
