STRUCTURE - START-UP STRUCTURE - START-UP
Following the safety instructions is the responsibility
to the user. Connect the system to a low-impedance
neutral conductor to route stray currents and electrical
charging to the ground. Please refer to
l 1.3.3 safety instructions: putting into service,
page 7
To ensure safe operating with the VUMAN
®
E3 / E3+,
a protective earth conductor must be available in the
AC power plug. The plug of the AC power cord must
include an earthing pin. The power cord must be in
proper condition. The socket should include a plug for
the earthing pin.

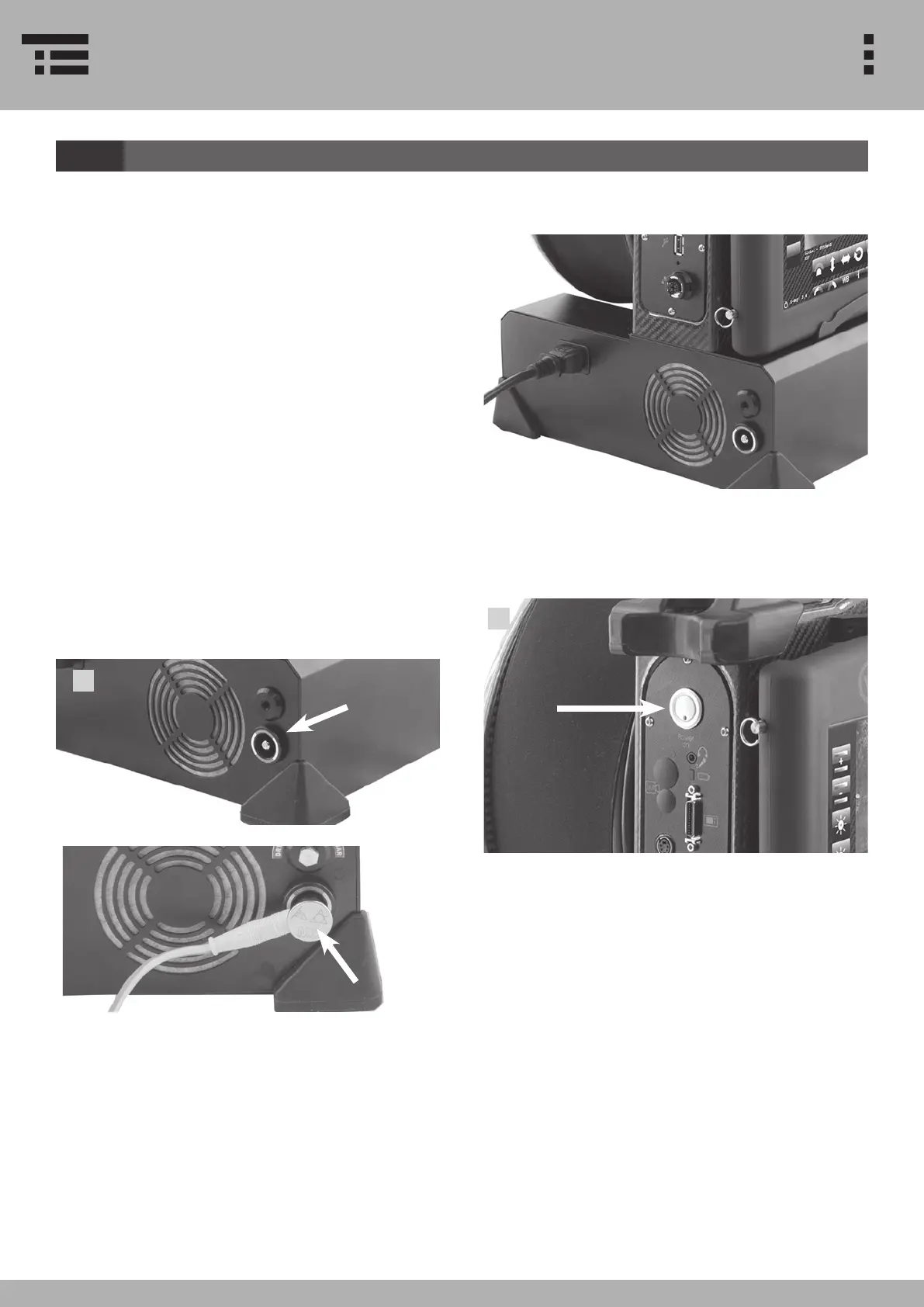

3.3.3 HARDWARE SETUP
1
1. Connect the earth cable to the earth plug on your
VUMAN
®
E3 / E3+ base unit. Then connect the earth
cable to protective earth or the application.
2
2. Connect the power cable
3
3. Turn on the main switch. The system will boot while
the integrated micro compressor will audibly charge up
the system.
