VIZIO VA22L FHDTV10T User’s Manual
Version 9/12/2008 22
www.VIZIO.com

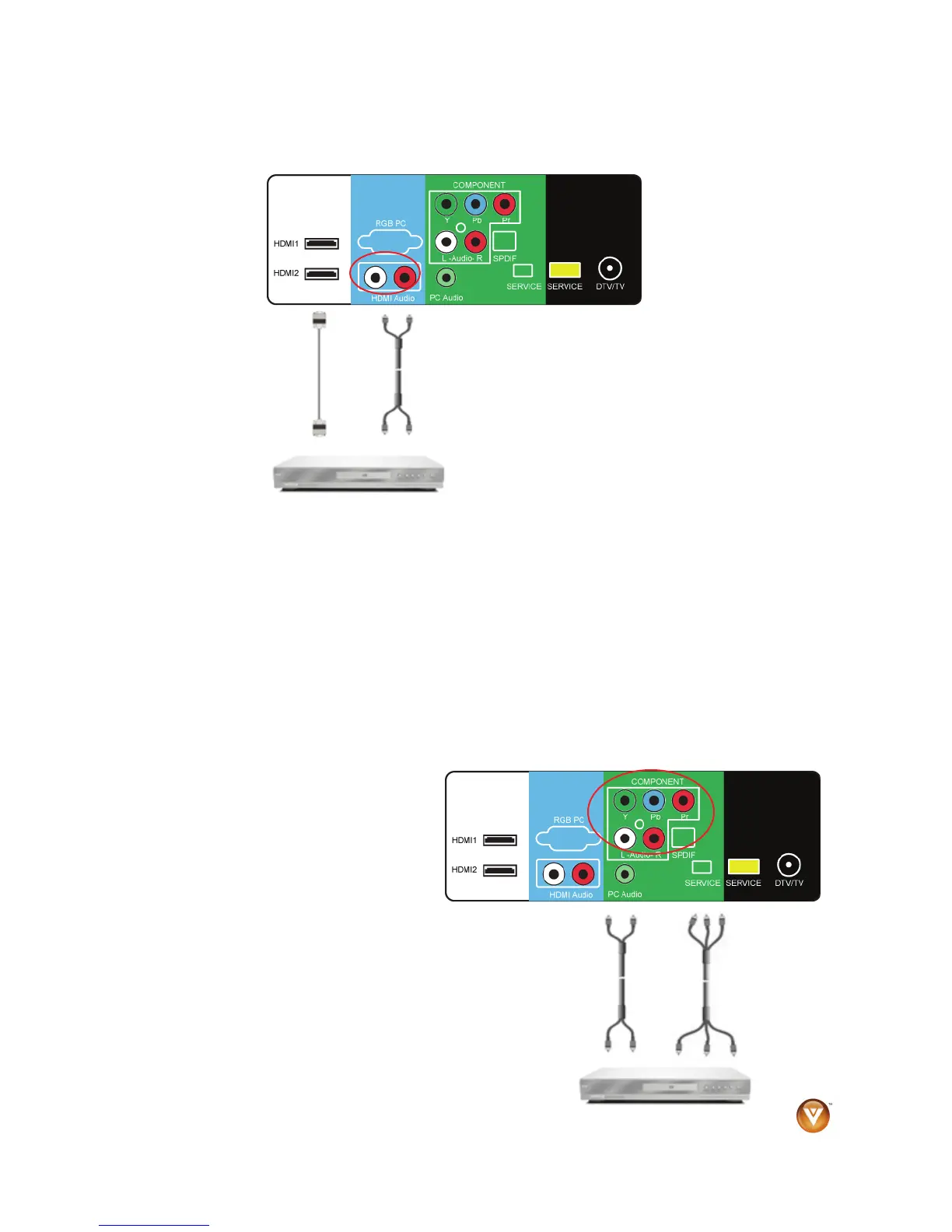

HDMI Connections for DVD Players with DVI
1. Turn off your HDTV and DVD Player.
2. Using an HDMI-DVI cable, connect the DVI end to the DVI Out jack on your DVD player and the
HDMI end to the HDMI 2 jack on the back of your HDTV.
3. Connect the audio cables (white and red) from the DVI audio output jacks on the DVD player to
the adjacent HDMI 2 L and R AUDIO jacks on the back of your HDTV.
4. Turn on your HDTV and set-top box.
5. Press HDMI repeatedly on the remote control to view the content. You can also press INPUT on
the remote control.
NOTE:
! If HDMI2 is being used, connect to the HDMI1 port instead.
Using Component Video (Better)
1. Turn off your HDTV and DVD player.
2. Connect the component cable (green,
blue, and red) from your DVD player to an available set of
COMPONENT jacks on the back or side of your HDTV.
3. Connect the audio cables (white and red) from your DVD
player to the COMPONENT L and R AUDIO jacks on the
back or side of your HDTV.
4. Turn on your HDTV and DVD player.
5. Press COMPONENT on the remote control to view the
content. You can also press INPUT on the remote control.
