VIZIO VA22L FHDTV10T User’s Manual
Version 9/12/2008 23
www.VIZIO.com
Using S-Video (Better)
1. Turn off your HDTV and set-top box.
2. Connect the S-VIDEO cable from your set-top box to the S-VIDEO jack on the
side of your HDTV.
3. Connect the audio cables (white and red) on your set-top box to the
corresponding L and R AUDIO jacks on the side of your HDTV.
4. Turn on your HDTV and set-top box.
5. Press AV on the remote control to view the content. You can also press INPUT
on the remote control.

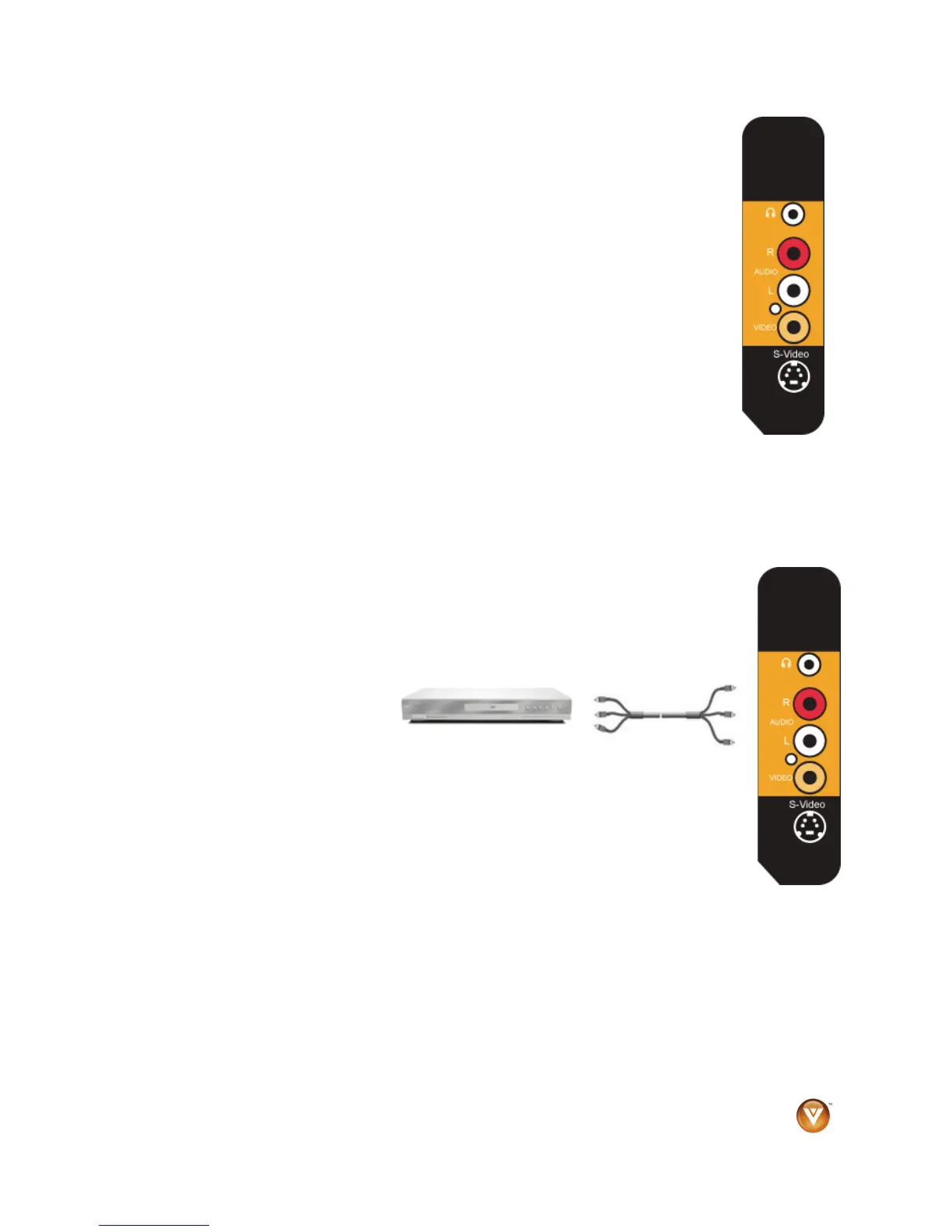

Using Composite (AV) Video (Good)
1. Turn off your HDTV and DVD player.
2. Connect the Video cable (yellow) from your DVD player to the AV/S-VIDEO jack on
the back of your HDTV.
3. Connect the audio cables (white and red) on your DVD player to the AV/S-VIDEO
L and R AUDIO jacks on the back of your HDTV.
4. Turn on your HDTV and DVD Player.
5. Press AV on the remote control to view the content. You can also press INPUT on
the remote control.
