Setting Up
Setting UpSetting Up
Setting Up

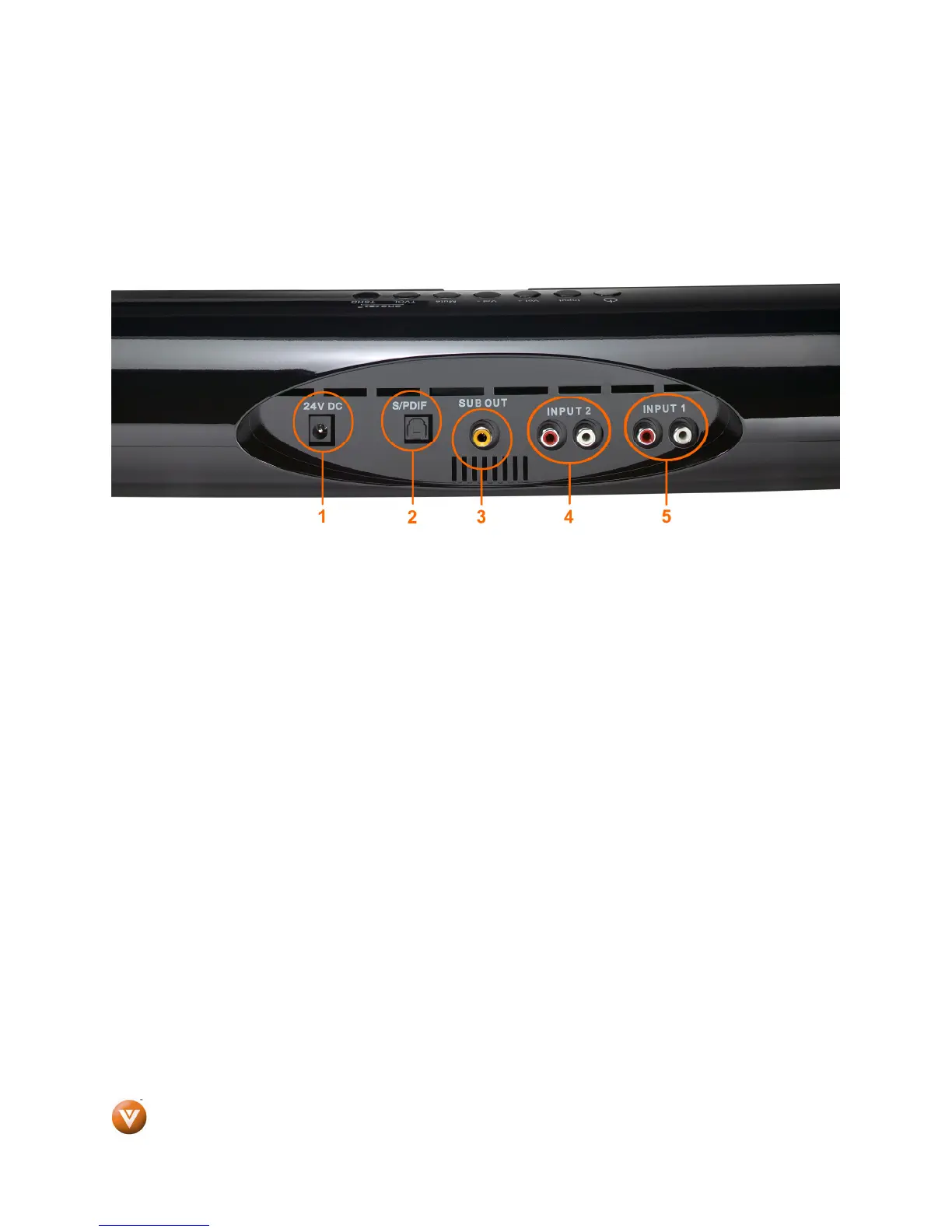

Figure 1 – Power, Input and Output connections
1. Connect an Optical (SPDIF) cable from the Optical Output on the source device to the OPTICAL
input (2), or connect one end of the left and right channel audio cables to AUDIO-INPUT-1 (5) or
AUDIO-INPUT-2 (4) on the back of the HD Sound Bar, and the other end to the Audio Output of
the signal source. The Inputs are shown in figure 1 above.
2. (Optional for Sub-Woofer): Connect one end of the Sub-Woofer audio cable to SUB OUT (3) on
the back of the HD Sound Bar, and the other end to the Analog Sub-Woofer Input of the
Stereo/Home Theater System. The output is shown in figure 1 above.
3. Before connecting the AC cord to an outlet, connect the HD Sound Bar power adapter DC
connector (1) (Fig 1).
4. Connect the AC cord of the power adapter to suitable AC outlet.
5. Switch the HD Sound Bar power to ON by either using the power button on the top of the HD
Sound Bar or the power button in the remote control.
6.
Select the desired input by pressing the Input button on the Sound Bar or the
Remote. The default input is Analog 2 when the Sound Bar is first plugged in.
Refer to Page 8 for additional information.
To Next Page
