Vizio VSB200 User Manual

Version 7/16/2009 15
www.VIZIO.com

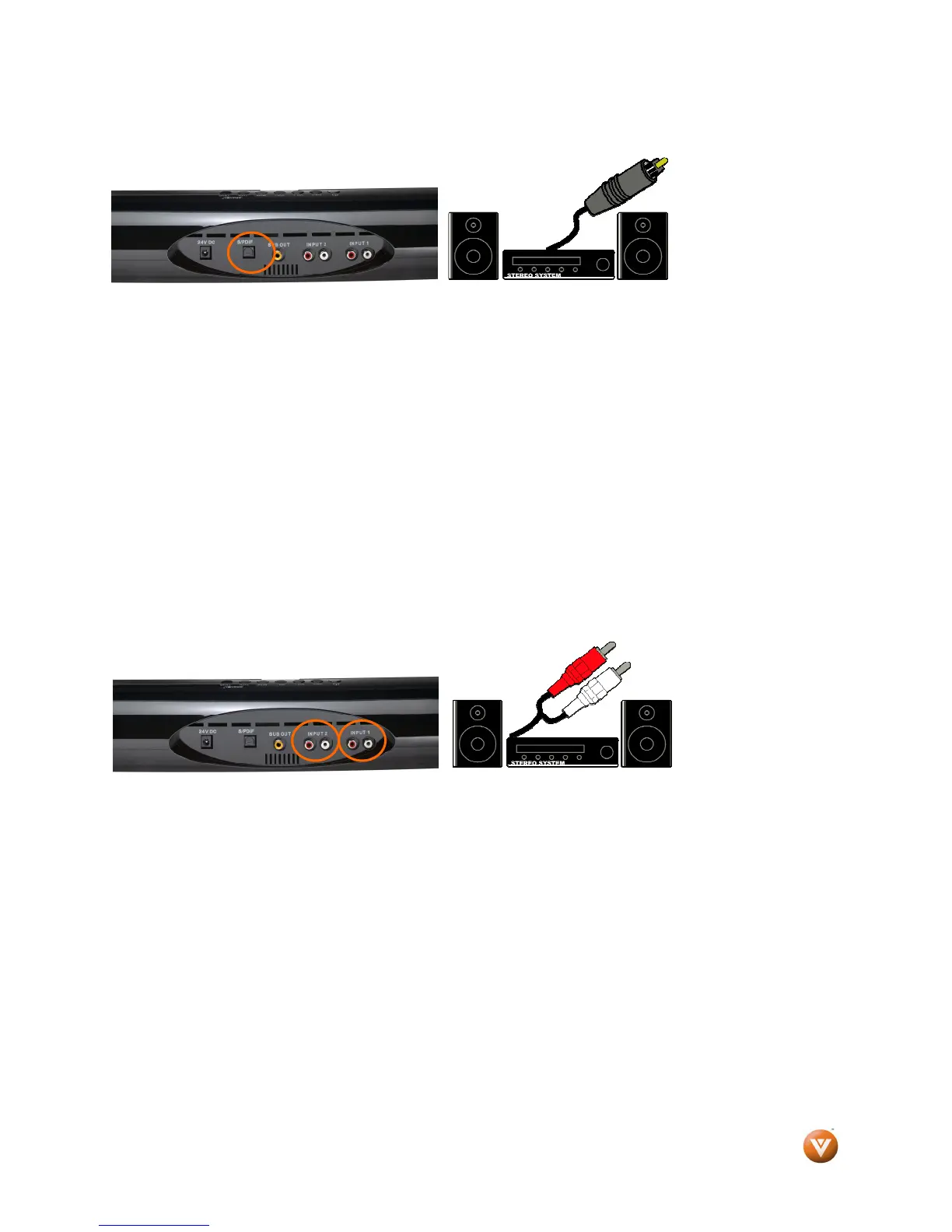

Connecting an external Receiver/Amp
Connecting an external Receiver/AmpConnecting an external Receiver/Amp
Connecting an external Receiver/Amp
*Digital Connection:
1. Turn off the power to the HD Sound Bar and Receiver/Amp.
2. Connect one end of the Optical (SPDIF) cable to the digital audio output on the Receiver/Amp
3. Connect the other end of the Optical (SPDIF) cable to the Digital audio input on the HD Sound Bar.
4. Turn on the power to the HD Sound Bar and Receiver/Amp.
5. Select the Optical input by pressing the Input Button on the top of the HD Sound Bar or Remote
Control.
Note: When using the Optical Input on the HD Sound Bar, be sure to set the source device output mode
to PCM. Refer to the Stereo/Receiver/Amp user manual for more information about the audio output
settings of the product.
*SPDIF Cable available separately.
Analog Connection:
1. Turn off the power to the HD Sound Bar and Receiver/Amp.
2. Connect one end of the audio cable (white and red connectors) to the analog audio output on the
Receiver/Amp.
3. Connect the other end of the audio cable (white and red connectors) to one of the analog audio inputs
on the HD Sound Bar.
4. Turn on the power to the HD Sound Bar and Receiver/Amp.
5. Select the associated input by pressing the Input Button on the top of the HD Sound Bar or Remote
Control.
.

Vizio VSB200 Specifications

General

Audio decoders	-
RMS rated power	- W
Audio output channels	- channels
Number of tweeter drivers	2
Tweeter diameter (imperial)	0.75 \
Total Harmonic Distortion (THD)	0.01 %
Subwoofer included	No
Product color	Black
Frequency range	60 - 20000 Hz
Apple docking compatibility	Not supported
HDMI ports quantity	0
Connectivity technology	Wired
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
