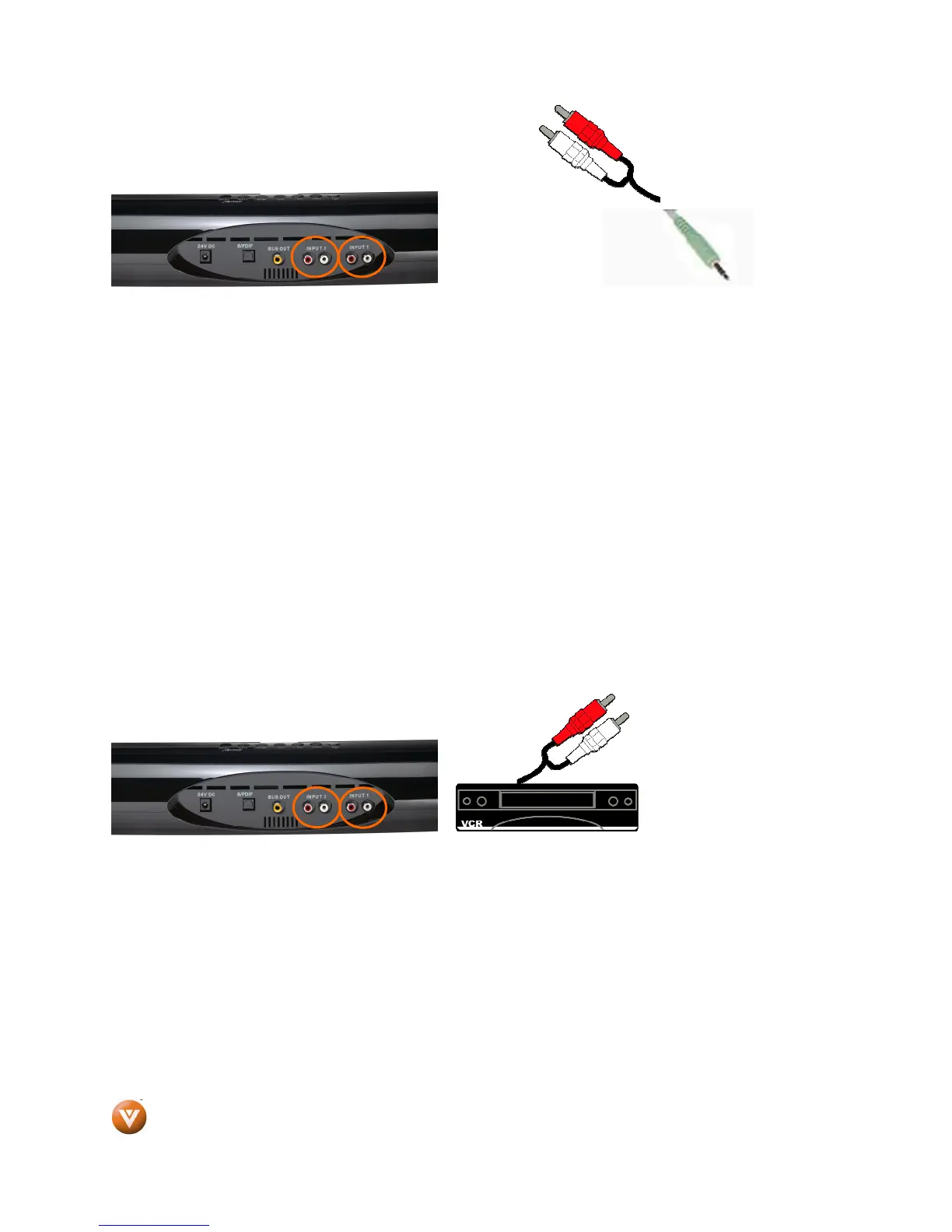

1. Turn off the power to the HD Sound Bar and MP3 Player.
2. Connect one end of the audio cable to the analog audio output on the MP3 Player Docking Unit*.
3. Connect the other end of the audio cable (white and red connectors) to one of the analog audio inputs
on the HD Sound Bar.
4. Turn on the power to the HD Sound Bar and MP3 Player.
5. Select the associated input by pressing the Input Button on the top of the HD Sound Bar or Remote
Control.
*Note: MP3 analog audio output commonly uses a 1/8” (35mm) Stereo Mini-Jack port. In this
configuration,
a 1/8” (3.5mm) Stereo Mini-Jack to RCA stereo cable will be required. If wall mounting of the Sound Bar
System is planned, purchase the above described cable having right-angle RCA connectors to
avoid mounting interference.
Refer to your MP3 Player user manual for more information about the audio output settings and
connections of the product.
CAUTION: Do not connect the MP3 Player headphone output directly to the HD Sound Bar. This can
result in damage to the devices. A docking unit or equivalent conversion unit is required to adapt line level
audio to the HD Sound Bar.
Connect
ConnectConnect
Connecting a
ing a ing a
ing a VCR
VCRVCR
VCR or Video Camera
or Video Camera or Video Camera
or Video Camera
6. Turn off the power to the HD Sound Bar and VCR or Video Camera.
7. Connect one end of the audio cable (white and red connectors) to the analog audio output on the
VCR or Video Camera.
8. Connect the other end of the audio cable (white and red connectors) to one of the analog audio inputs
on the HD Sound Bar.
9. Turn on the power to the HD Sound Bar and VCR or Video Camera.
10. Select the associated input by pressing the Input Button on the top of the HD Sound Bar or Remote
Control.
Note: Refer to your VCR or Video Camera user manual for more information about the audio output
settings of the product.
Connecting a MP3 Player
Connecting a MP3 PlayerConnecting a MP3 Player
Connecting a MP3 Player

Vizio VSB200 Specifications

General

Audio decoders	-
RMS rated power	- W
Audio output channels	- channels
Number of tweeter drivers	2
Tweeter diameter (imperial)	0.75 \
Total Harmonic Distortion (THD)	0.01 %
Subwoofer included	No
Product color	Black
Frequency range	60 - 20000 Hz
Apple docking compatibility	Not supported
HDMI ports quantity	0
Connectivity technology	Wired
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
