Rear Panel Connections
Rear Panel ConnectionsRear Panel Connections
Rear Panel Connections

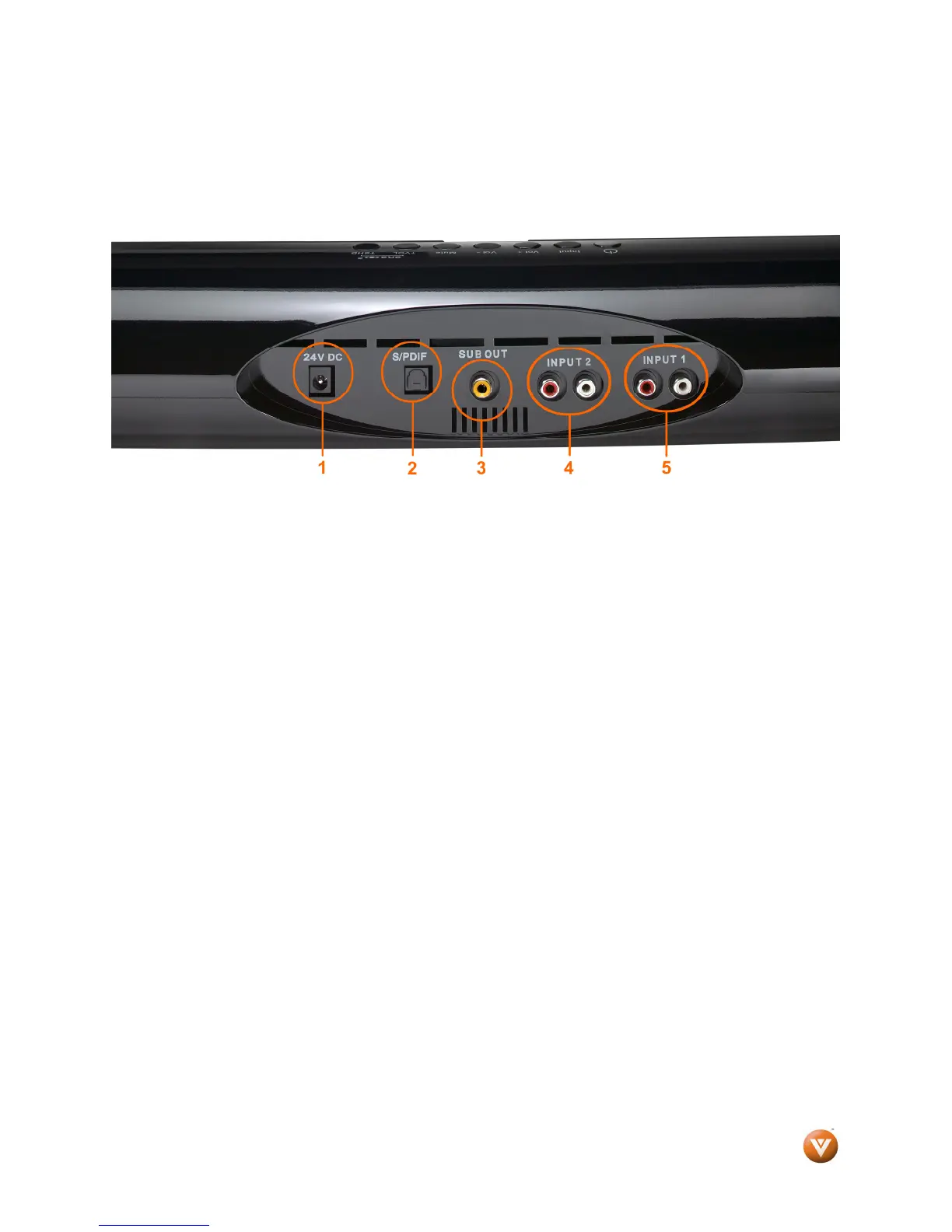

1. DC IN – Plug the connector from the AC/DC Power Adapter here.
2. OPTICAL AUDIO IN – SPDIF Optical connector for connection from a device such as a home
theatre system, Amplifier, Receiver, Set Top Box or DVD Player.
3. SUB OUT– (Analog Sub-Woofer Out) Connect to an amplified subwoofer input. Do NOT
connect this directly to another Home Theater System
4. ANALOG AUDIO IN 2 – (ANALOG L/R) Connect the analog audio from a device such as a TV,
Home Theatre System, Amplifier, Receiver, Set Top Box or DVD Player.
5. ANALOG AUDIO IN 1 – (ANALOG L/R) Connect the analog audio from an additional device
such as a TV, Home Theatre System, Amplifier, Receiver, Set Top Box or DVD Player.

Vizio VSB200 Specifications

General

Audio decoders	-
RMS rated power	- W
Audio output channels	- channels
Number of tweeter drivers	2
Tweeter diameter (imperial)	0.75 \
Total Harmonic Distortion (THD)	0.01 %
Subwoofer included	No
Product color	Black
Frequency range	60 - 20000 Hz
Apple docking compatibility	Not supported
HDMI ports quantity	0
Connectivity technology	Wired
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
