2.4 Connecting Your Basic Set-Top Box

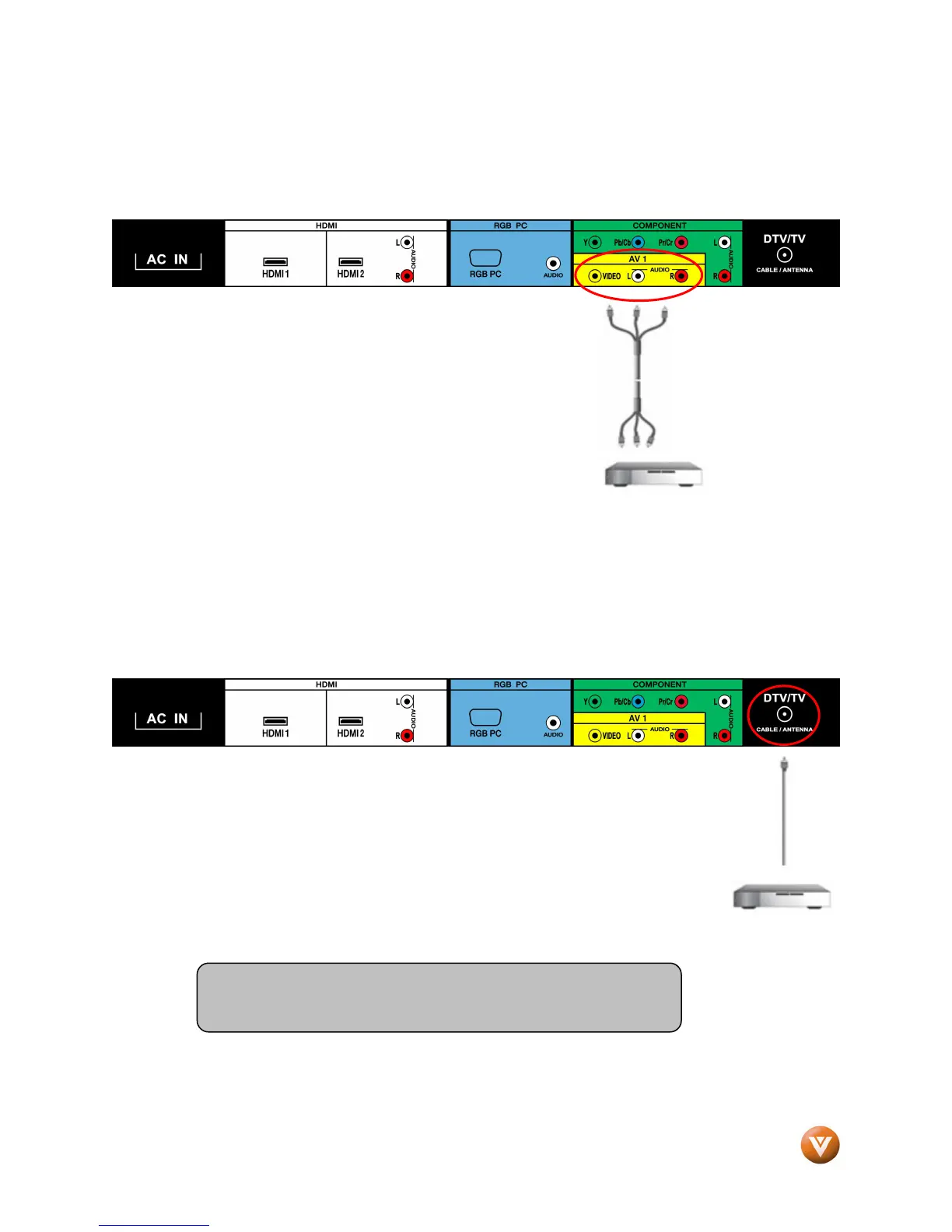

2.4.1 Using Composite Video
1. Turn off the power to the HDTV and Set-Top Box.
2. Using the AV Cable, connect the Video (yellow color)
connector on your Set-Top Box to the corresponding
Video (yellow color) connector in the AV1 group (yellow
color area) at the rear of the HDTV.
3. Using the white and red connectors, connect the cable to
the audio output connectors associated with the Video
output on your Set-Top Box and connect the other end
to the audio connectors associated with the AV1 input
(yellow color area) at the rear of the HDTV.
4. Turn on the power to the HDTV and Set-Top Box.
5. Select AV1 using the INPUT button on the remote or side of the HDTV, or directly by
pressing the AV button on the Remote Control.
2.4.2 Using Coax (RF)
1. Turn off the power to the HDTV and Set-Top Box.
2. Using a Coax (RF) cable, connect one end to the TV OUT (RF) on your Set Top
Box and the other end to the DTV/TV input at the rear of the HDTV.
3. Turn on the power to the HDTV and Set-Top Box.
4. Select TV using the INPUT button on the remote or side of the HDTV, or directly
by pressing the TV button (below the WIDE button) on the Remote Control.
Note: Refer to your Set Top Box user manual for more information
about selecting the video or RF output of the product.
