2.4 Connecting Your Basic Set-Top Box

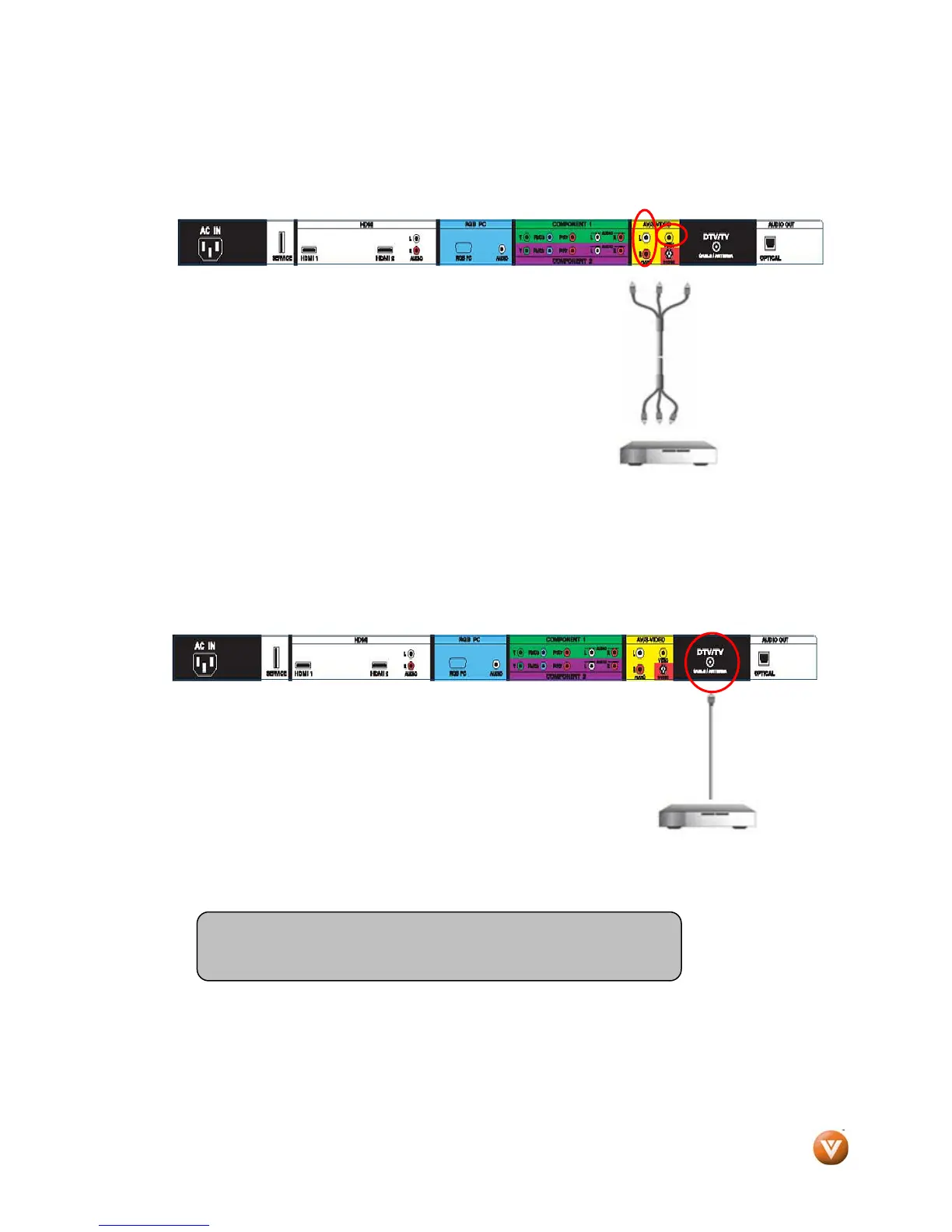

2.4.1 Using Composite Video
1. Turn off the power to the HDTV and Set-Top Box.
2. Using the AV Cable, connect the Video (yellow color)
connector on your Set-Top Box to the corresponding Video
(yellow color) connector in the AV group (yellow color area)
at the rear of the High Definition TV.
3. Using the white and red connectors, connect the cable to
the audio output connectors associated with the Video
output on your Set-Top Box and connect the other end to
the audio connectors associated with the AV input (yellow
color area) at the rear of the High Definition TV.
4. Turn on the power to the TV and Set-Top Box.
5. Select AV using the INPUT button on the remote or side of the High Definition TV, or directly
by pressing the AV button on the Remote Control.
2.4.2 Using Coax (RF)
1. Turn off the power to the HDTV and Set-Top Box.
2. Using a Coax (RF) cable, connect one end to the TV OUT (RF) on your
Set Top Box and the other end to the DTV/TV input at the rear of the
High Definition TV.
3. Turn on the power to the HDTV and Set-Top Box.
4. Select TV using the INPUT button on the remote or side of the
High Definition TV, or directly by pressing the TV button (below
the GUIDE button) on the Remote Control.
Note: Refer to your Set Top Box user manual for more information
about selecting the video or RF output of the product.
To Next Page
