VIZIO
®
VW32L HDTV40A User Manual
Version 10/17/2008 9
www.VIZIO.com
Chapter 1 Basic Controls and Connections

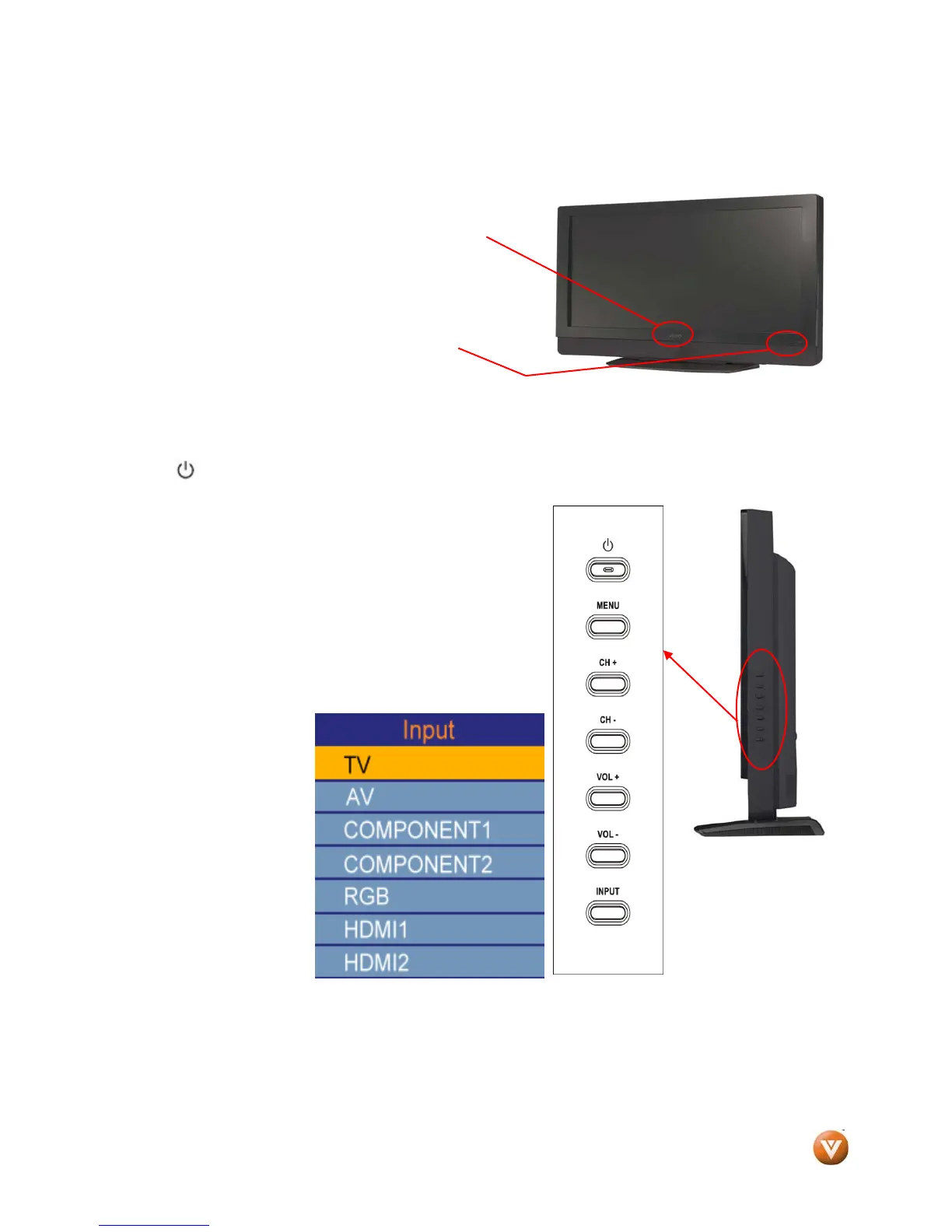

1.1 Front Panel
Power ‘VIZIO’ light – The VIZIO name lights white when
powered on and orange when powered off.
Remote Control Sensor – This is the window through which
all of the remote control signals pass to the sensor. Point the
remote control directly at this window for the best response to
the remote signal.
1.2 Right Side Panel Controls
Power ( ) – Switch the VW32L HDTV40A on by pressing the button once. Press the button again to
the VW32L HDTV40A off.
Menu – This button activates the On Screen Display (OSD).
Pressing it a second time will select the first option or feature
of the OSD. If an option or feature which requires the display
of the slide bar is selected, pressing this button will toggle
between displaying the slide bar and the last OSD menu.
Channel +/- – Use these buttons to step up or down the TV
channels. While the OSD is active, these buttons function as
up and down controls in the OSD menus.
Volume +/- – Use these buttons to increase or decrease to
the speaker volume. While the OSD is active, these buttons
function as left and right controls in the OSD menus.
Input – Repeated pressing
of this buttons steps
through the input sources
in the following sequence:
TV, AV (S-VIDEO),
COMP1, COMP2, RGB,
HDMI1 and HDMI2. Once
you have stepped through
the entire sequence, you
will return to the beginning.
When the OSD is on, if a
sub-menu is active,
pressing this button will
return to the previous
menu level.
