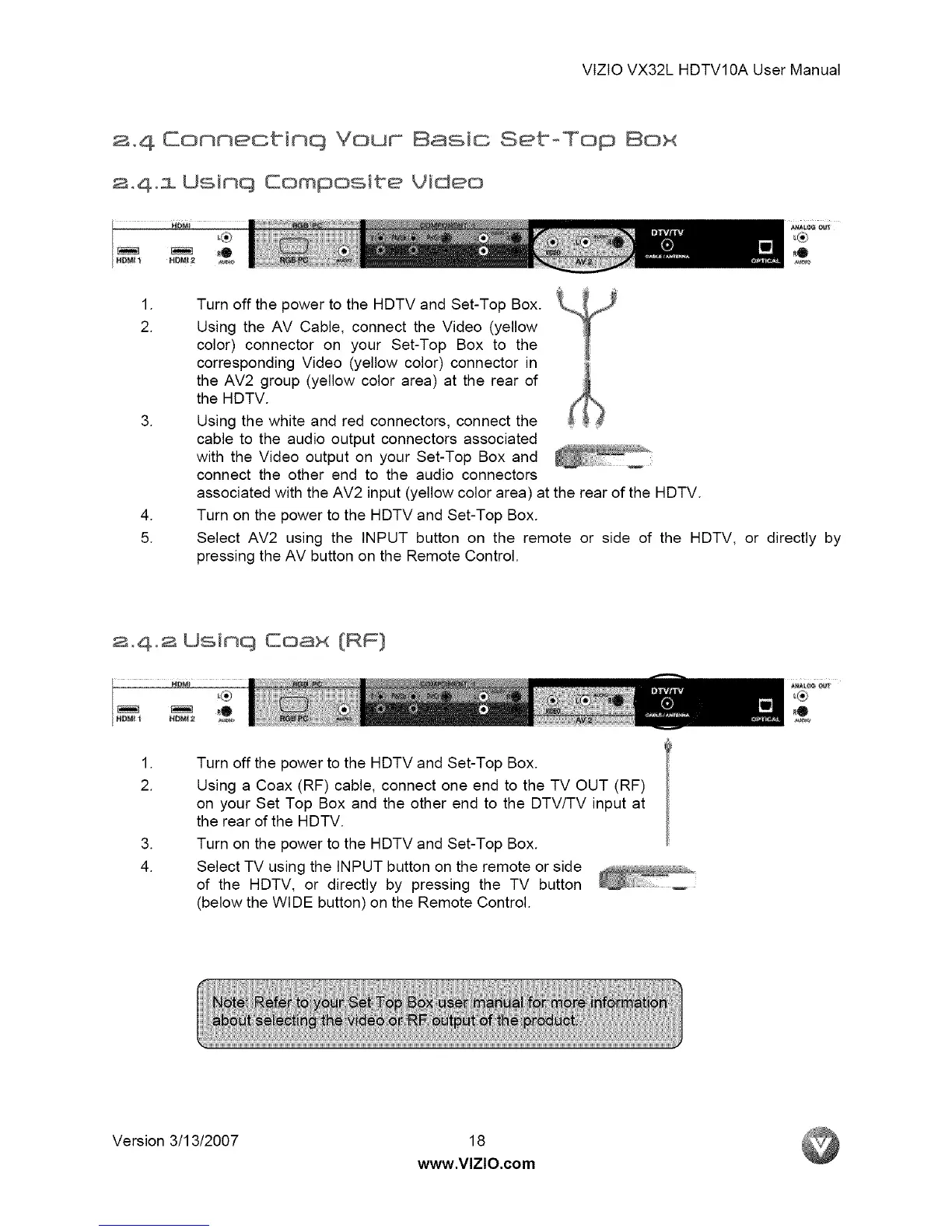

VlZlOVX32LHDTV10AUserManual
Conneotinq roof Basic SetoTop 8ox
2,4,i Usinq Composite Video
_®
_O
.
2.
.
.
5.
Turn off the power to the HDTV and Set-Top Box.
Using the AV Cable, connect the Video (yellow
color) connector on your Set-Top Box to the
corresponding Video (yellow color) connector in
the AV2 group (yellow color area) at the rear of
the HDTV.
Using the white and red connectors, connect the
cable to the audio output connectors associated
with the Video output on your Set-Top Box and
connect the other end to the audio connectors
associated with the AV2 input (yellow color area) at the rear of the HDTV.
Turn on the power to the HDTV and Set-Top Box.
Select AV2 using the INPUT button on the remote or side of the HDTV, or directly by
pressing the AV button on the Remote Control.
8,4,8 Usinq Coax (RF}
.
2.
.
4.
Turn off the power to the HDTV and Set-Top Box.
Using a Coax (RF) cable, connect one end to the TV OUT (RF)
on your Set Top Box and the other end to the DTV/TV input at
the rear of the HDTV.
Turn on the power to the HDTV and Set-Top Box.
Select TV using the INPUT button on the remote or side
of the HDTV, or directly by pressing the TV button
(below the WIDE button) on the Remote Control.
Version 3/13/2007 18
www.VlZlO.com
