Battery
Fuse
+
Relay
Remote
Switch
PREDATAIR60
Battery
Fuse or circuit breaker
30A
R
e
l
ay
PREDATAIR60
Remote switch
see table1 for correct wire gauge
18 AWG
18 AWG
*
*
*
*
Ground to chassis or back
to battery negative termina
l
Red
Green

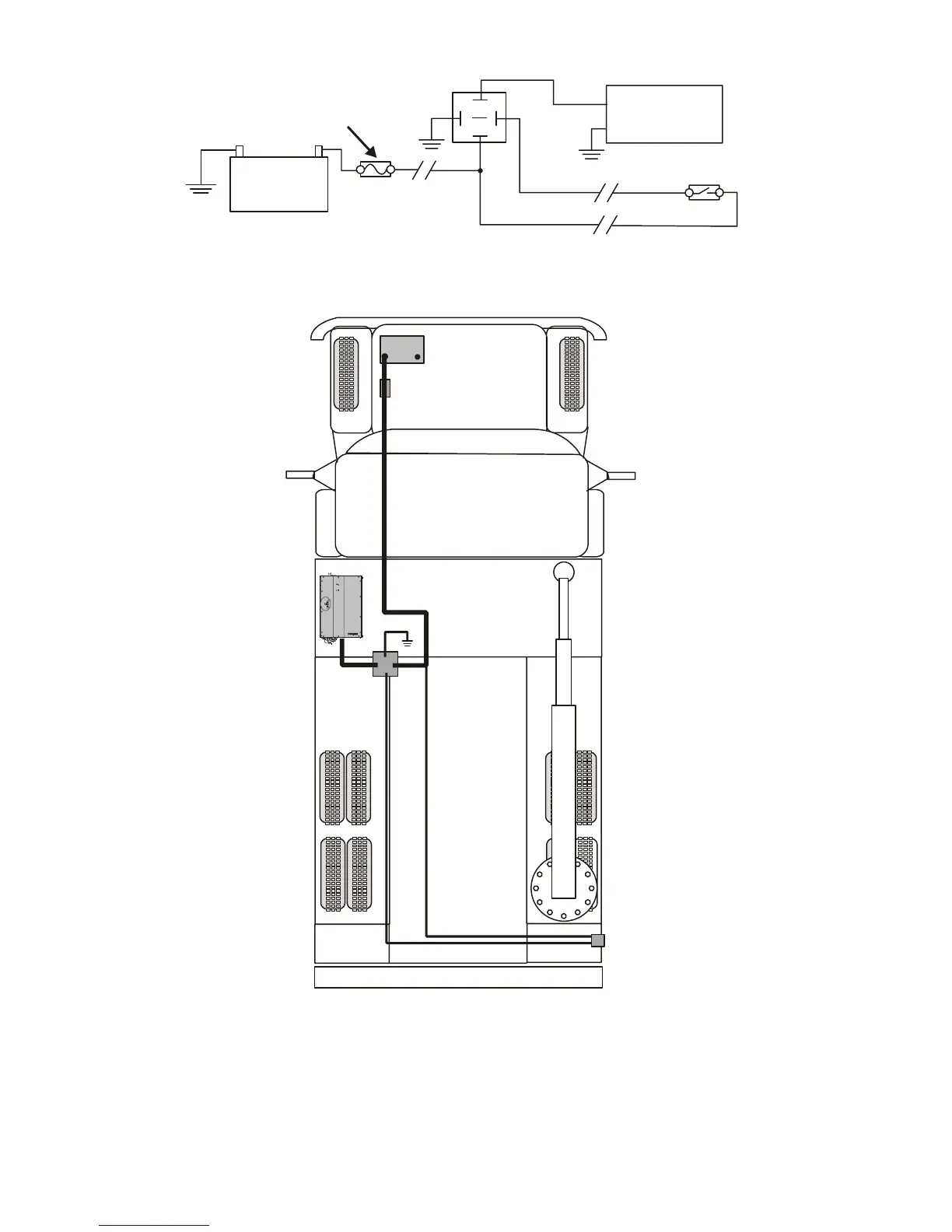

Figure 12 – Power actuating
This method keeps heavy current-carrying wires short.
