30

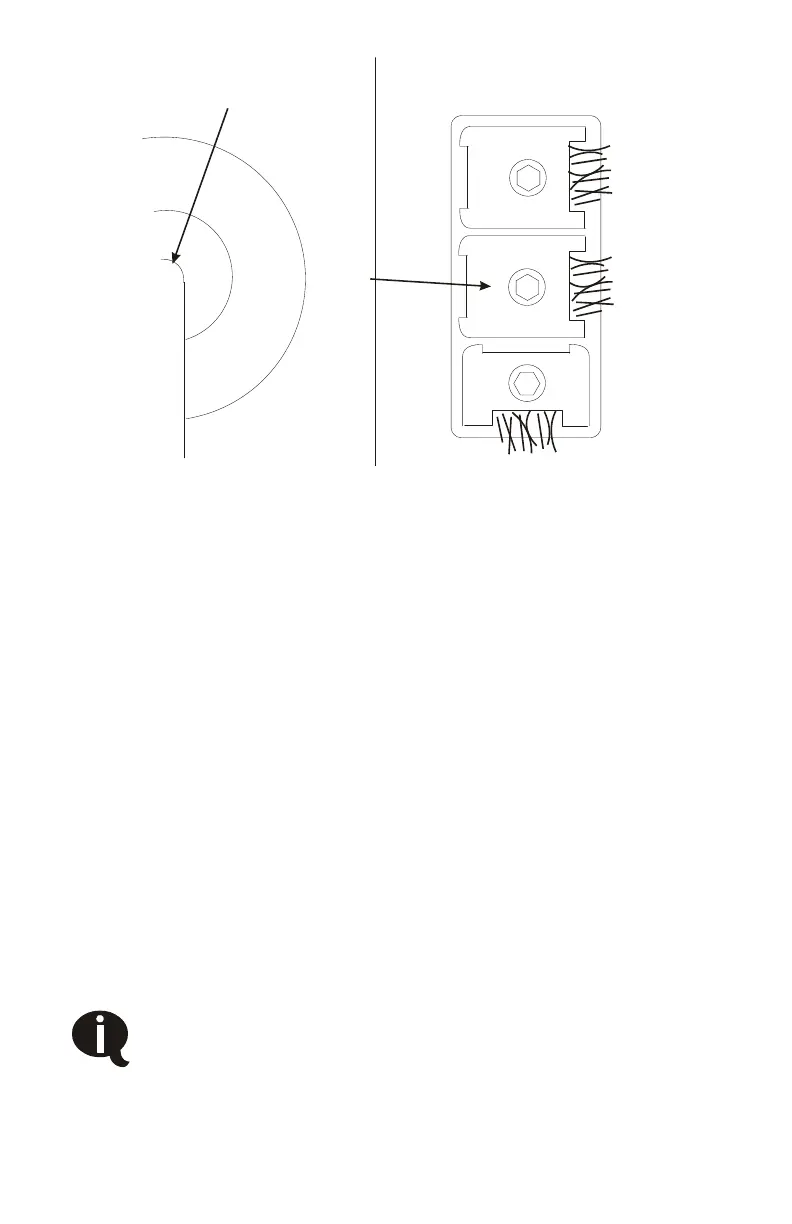

Steering column
Middle connector
ENGINE COMPARTMENT
FIREWALL CONNECTORS
Figure 4.7
□ Connect the long black jumper wire with the piggyback spade
connector to the black wire at the interface connector. Tape this
connection.
4.2.1 Vehicles with Automatic Transmissions
□ Mount the Drive Disable Circuit (DDC) under the dash near the
throttle control using nylon ties.
□ Connect the black wire with the male spade connector from the
DDC to the black wire with the female spade connector at the
interface cable.
□ Connect the yellow wire from the DDC to the yellow wire at the
interface cable.
□ Solder the black wire to the wire at the air brake pressure switch
that is tan with two red stripes and protect the connection with
electrical tape.
Identify the transmission type as either WTEC MD or
Allison 2000/2400. These transmissions will have
different connections. Pay careful attention to the
following information.
