31

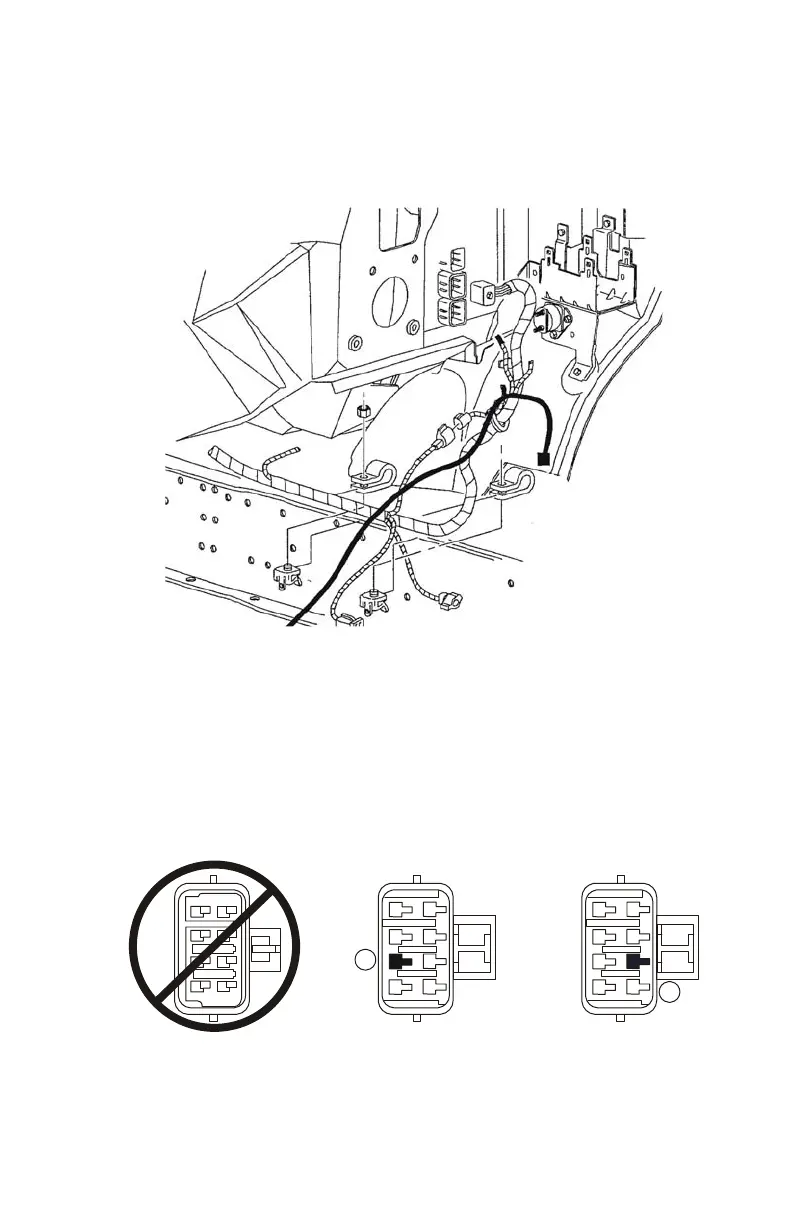

Locate the connectors near the front dash panel between the
engine and the driver’s side wheel well (Figure 4.8). There will be
one connector on trucks with the 2000/2400 transmission and
two connectors on trucks with WTEC MD transmission.
Figure 4.8
Identify the connector in Figure 4.9 that matches the
transmission type. Note that there are two connectors on
vehicles with WTEC transmissions; use the 7205 connector.
WTEC MD
Connector
7206
WTEC MD
Connector
7205
2000/2400
Connector
7306
E
F
E
F
G
H
G
H
D
C
B
A
D
C
B
A
Figure 4.9
