4 Cable and Wiring
4.4 Cyclone glanded connector wiring
• Remove both M6 bolts from the rear of the
connector plate
• Undo the glanded connectors from the rear
of the connector plate and remove the rubber
plugs from the connectors.
• Insert the cable through the glanded
connectors and tighten.

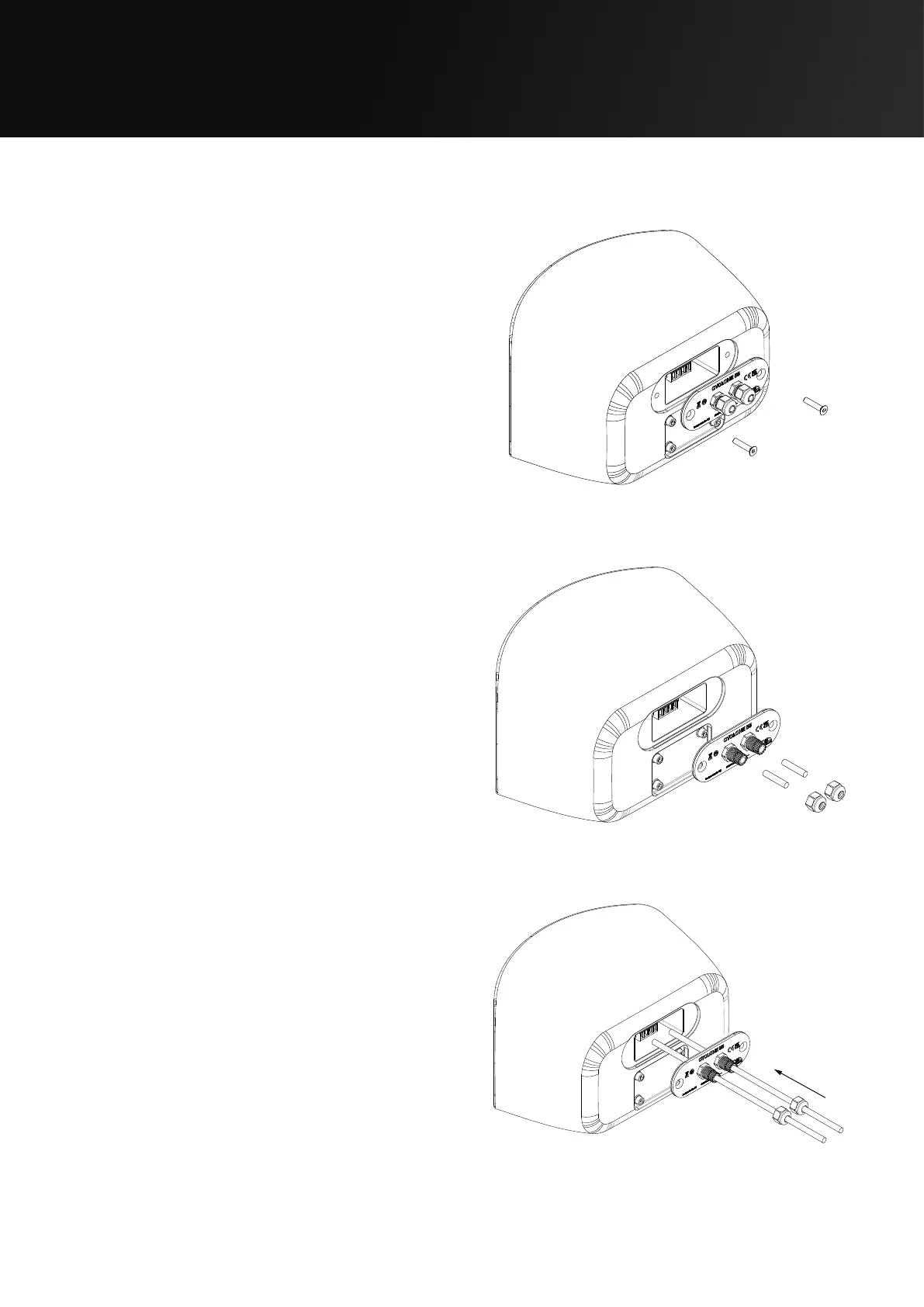

Figure 4.2: Connector plate removal
Figure 4.3: Glanded connector removal
Figure 4.4: Cable connection
