Page 15UG10583-2.0 - Cyclone 55 User Guide V2.0
5.2 Wall Mounting

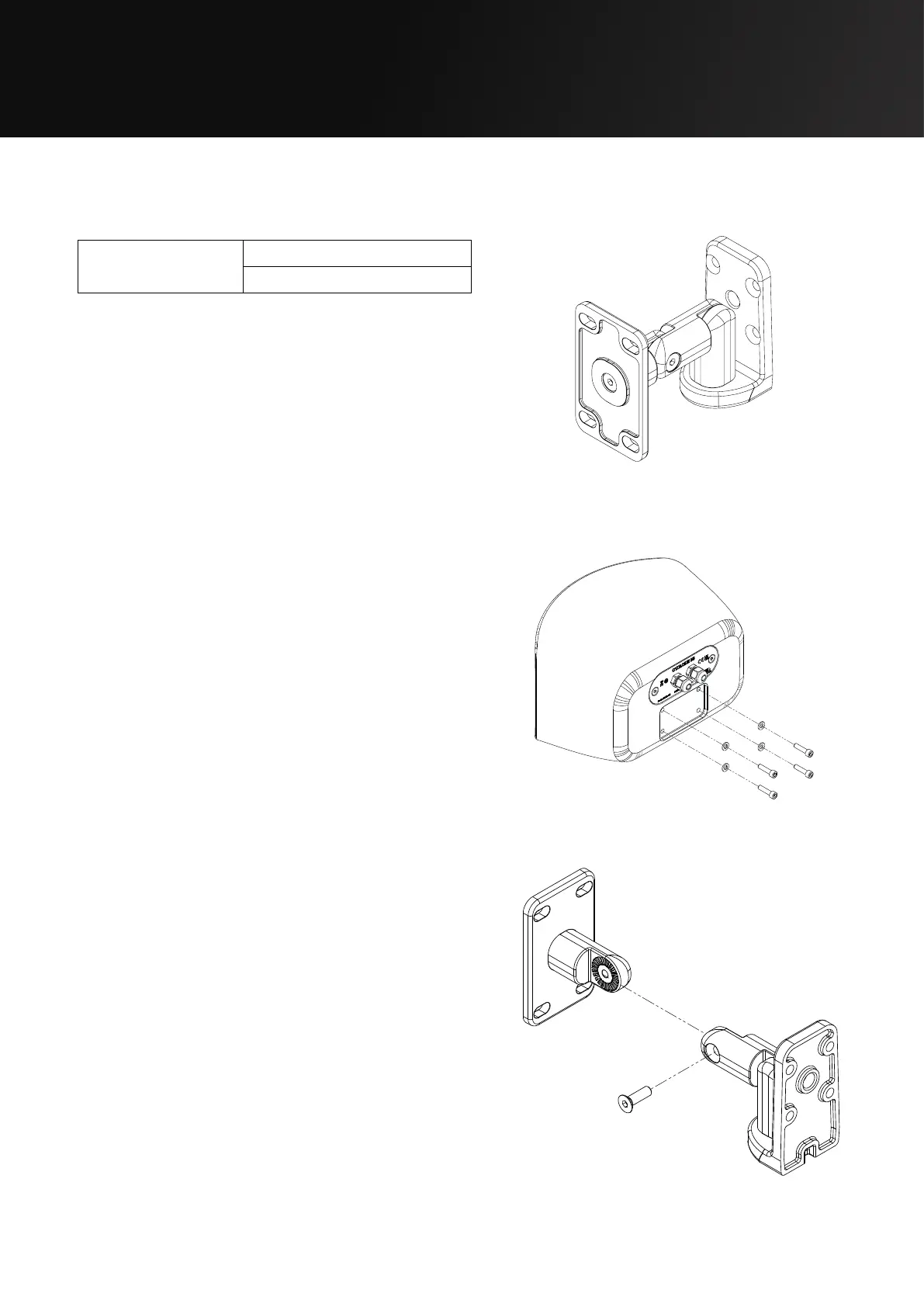

Figure 5.1: T51 bracket
Parts required:
4 mm Allen key
T51 - Wall Bracket
White - IT2992 (supplied)
Black - IT3031 (supplied)
Figure 5.2: Bolt removal
Step 1:
Remove all four M6 bolts from the rear of the
loudspeaker.
Step 2:
Remove the mounting plate from the wall
bracket by removing the M6 countersink as
shown.
Figure 5.3: Mounting plate
