5.3 Ceiling Mounting
Part required:
T51 - Ceiling Bracket
White - IT3802
Black - IT3354
4 mm Allen key
19 mm spanner

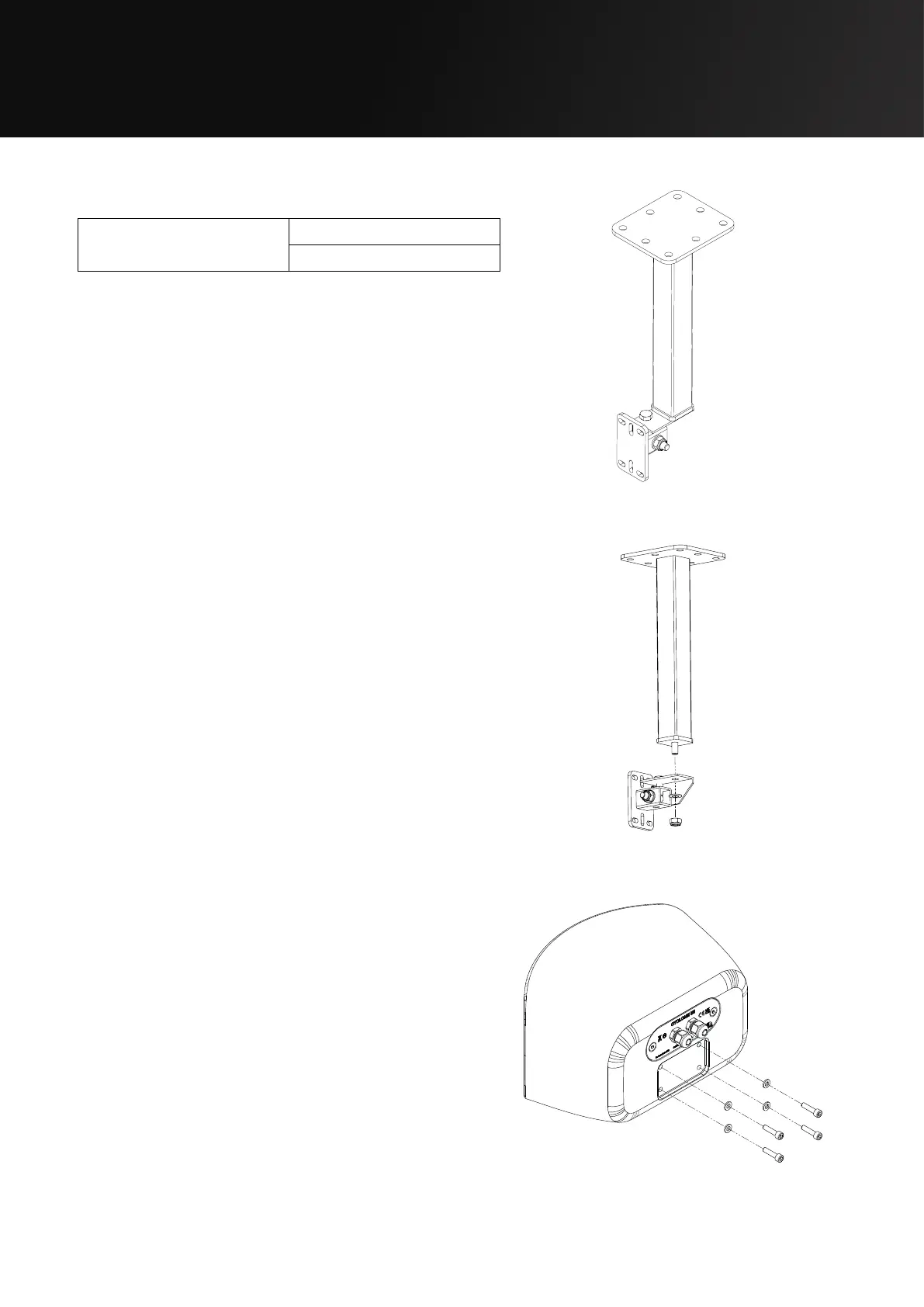

Figure 5.7: T51 ceiling bracket
Step 1:
Remove the mounting plate from the bracket by
removing the M12 bolt as shown
Figure 5.8: Mounting plate removal
Step 2:
Remove all four M6 bolts from the rear of the
loudspeaker.
Figure 5.9: Bolt removal
To Next Page
