Step 5b:
When adjusting the loudspeaker into position
if the intention is to have maximum horizontal
rotation then use adjust the bracket to the
configuration shown in figure 5.6b.
Max horizontal rotation: ±54°
Max vertical rotation: -70°, +60°

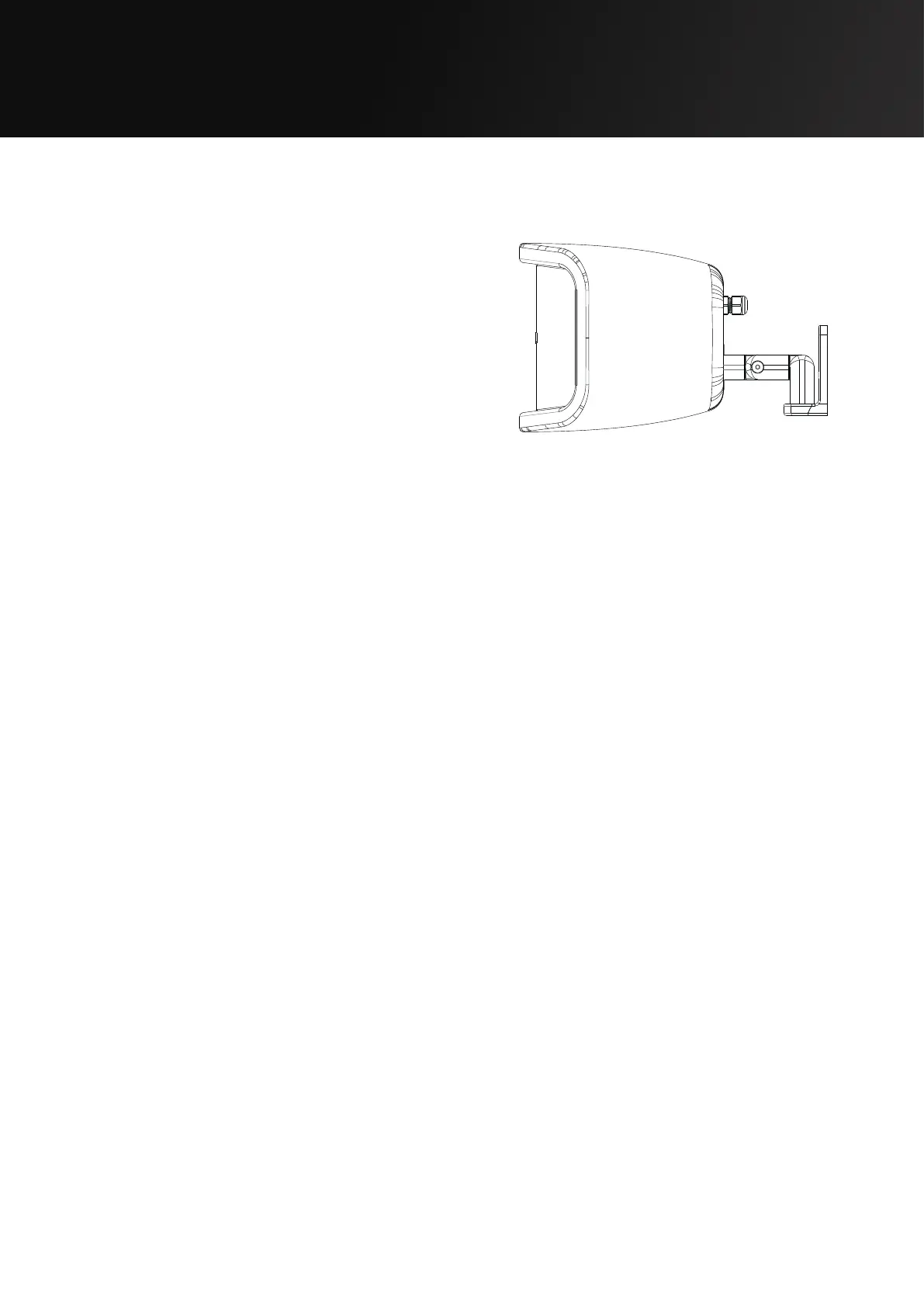

Figure 5.6a: Vertical bracket mounting
5.2 Wall Mounting
