Step 3:
Attach the mounting bracket to the rear of the
loudspeaker using all four M6 bolts

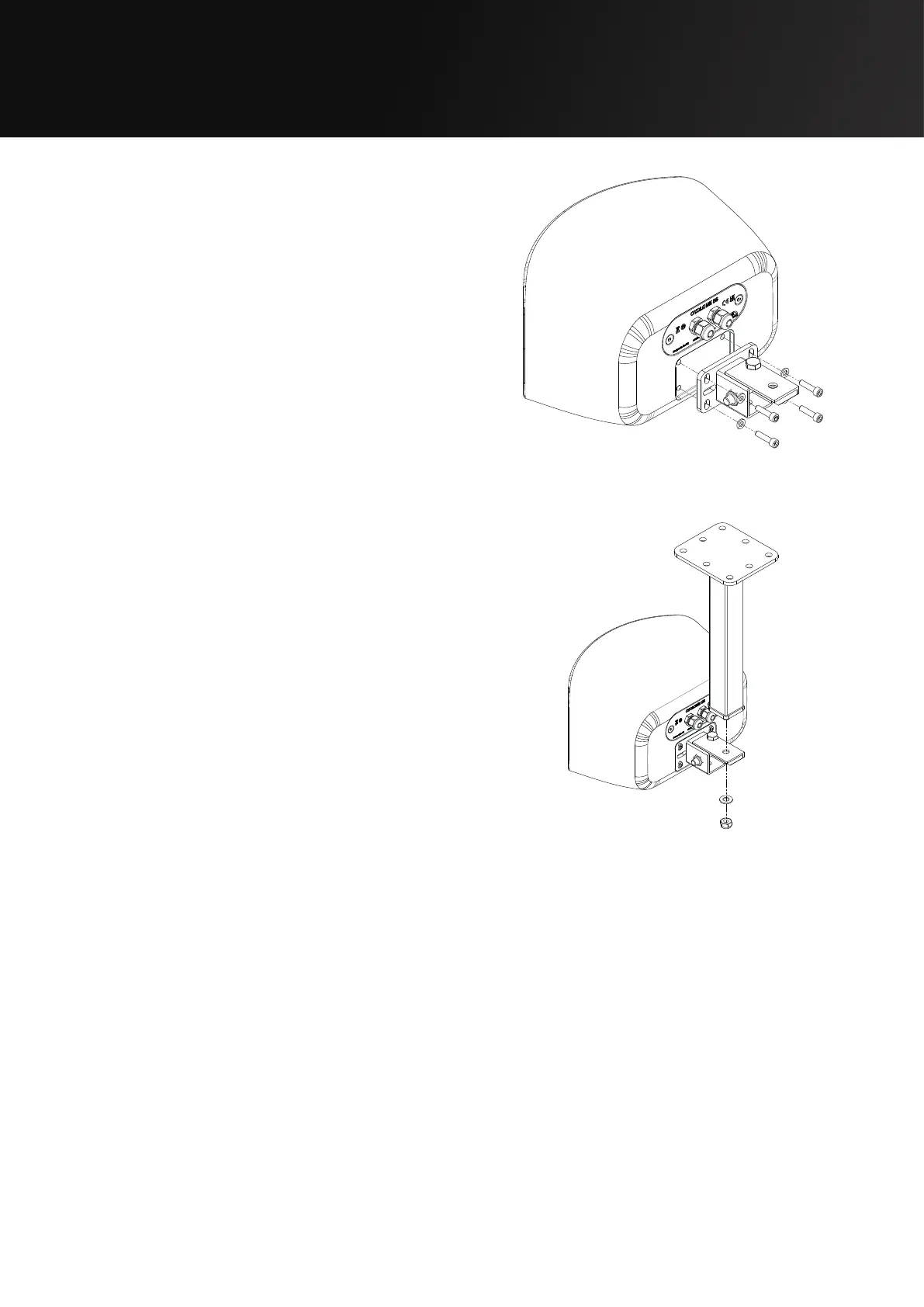

Figure 5.10: Mounting plate
Step 4:
Fix the bracket to the ceiling using all eight bolts.
Once it is secure lift the Air 8 with the mounting
plate fixed to it into position and fix it to the
bracket using the M12 nut that was removed in
step 1.
Max horizontal rotation: 360°
Max vertical rotation: ±12°
Figure 5.11: Ceiling mounting
5.3 Ceiling Mounting
