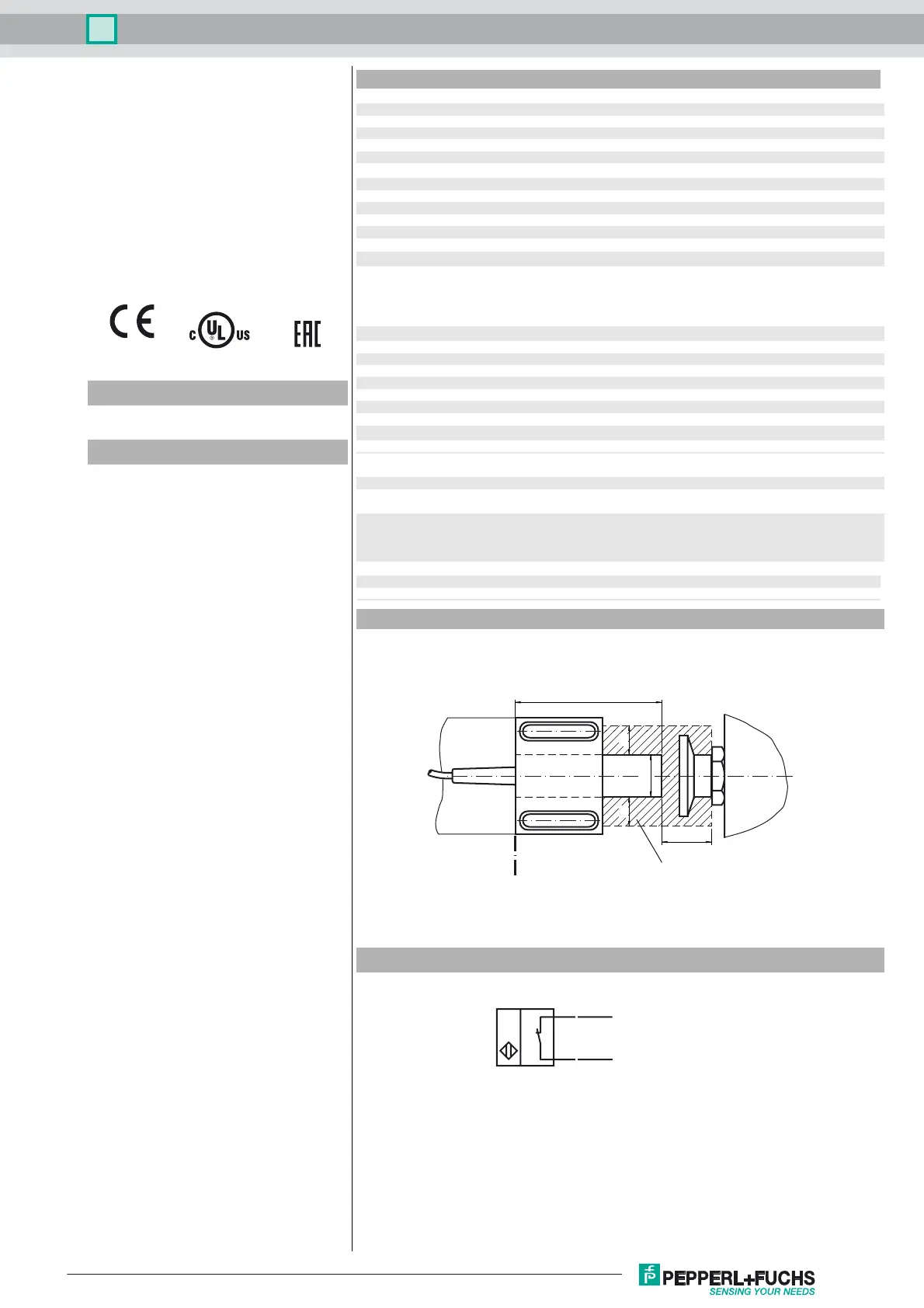

Inductive sensor NJ10-22-N-E93-Y246869
Release date: 2017-12-13 09:46 Date of issue: 2017-12-13 246869_eng.xml
Germany: +49 621 776 4411Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: +1 330 486 0001 Singapore: +65 6779 9091
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com
fa-info@de.pepperl-fuchs.com
0102
Model Number
NJ10-22-N-E93-Y246869
Features
• Comfort series
• 10 mm non-flush
Technical Data
General specifications
Rated operating distance s
n
10 mm
Installation non-flush
Output polarity NAMUR
Assured operating distance s
a
0 ... 10 mm
Output type 2-wire
Nominal ratings
Nominal voltage U
o
8 V
Switching frequency f 0 ... 1000 Hz
Hysteresis H typ. 5 %
Current consumption
Measuring plate not detected
≥ 3 mA
Measuring plate detected
≤ 1 mA
Ambient conditions
Ambient temperature -40 ... 100 °C (-40 ... 212 °F)
Also observe the maximum permissible ambient temperature
stated in the data for application in connection with hazardous
areas.
Keep to the lower of the two values.
Mechanical specifications
Connection type cable silicone , 10 m
Core cross-section 0.75 mm
2
Housing material PBT
Sensing face PBT
Degree of protection IP68
Cable
Bending radius
> 10 x cable diameter
General information
Use in the hazardous area see instruction manuals
Compliance with standards and
directives
Standard conformity
NAMUR
EN 60947-5-6:2000
IEC 60947-5-6:1999
Standards
EN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
Approvals and certificates
EAC conformity TR CU 012/2011
UL approval cULus Listed, General Purpose
Dimensions
Electrical Connection
Initiator embeddable
with mounting flange
In this area
no metal parts
Turbo
coupling
75
Ø 22
min. 15
1515
BN
L+
L-
BU
