3 Radiator, radiator fan
⇒ “3.1 Assembly overview - radiator/radiator fan”, page 154
⇒ “3.2 Removing and installing radiator”, page 155
⇒ “3.3 Removing and installing radiator cowl with radiator fan”,
page 157
⇒ “3.4 Removing and installing radiator fan”, page 159

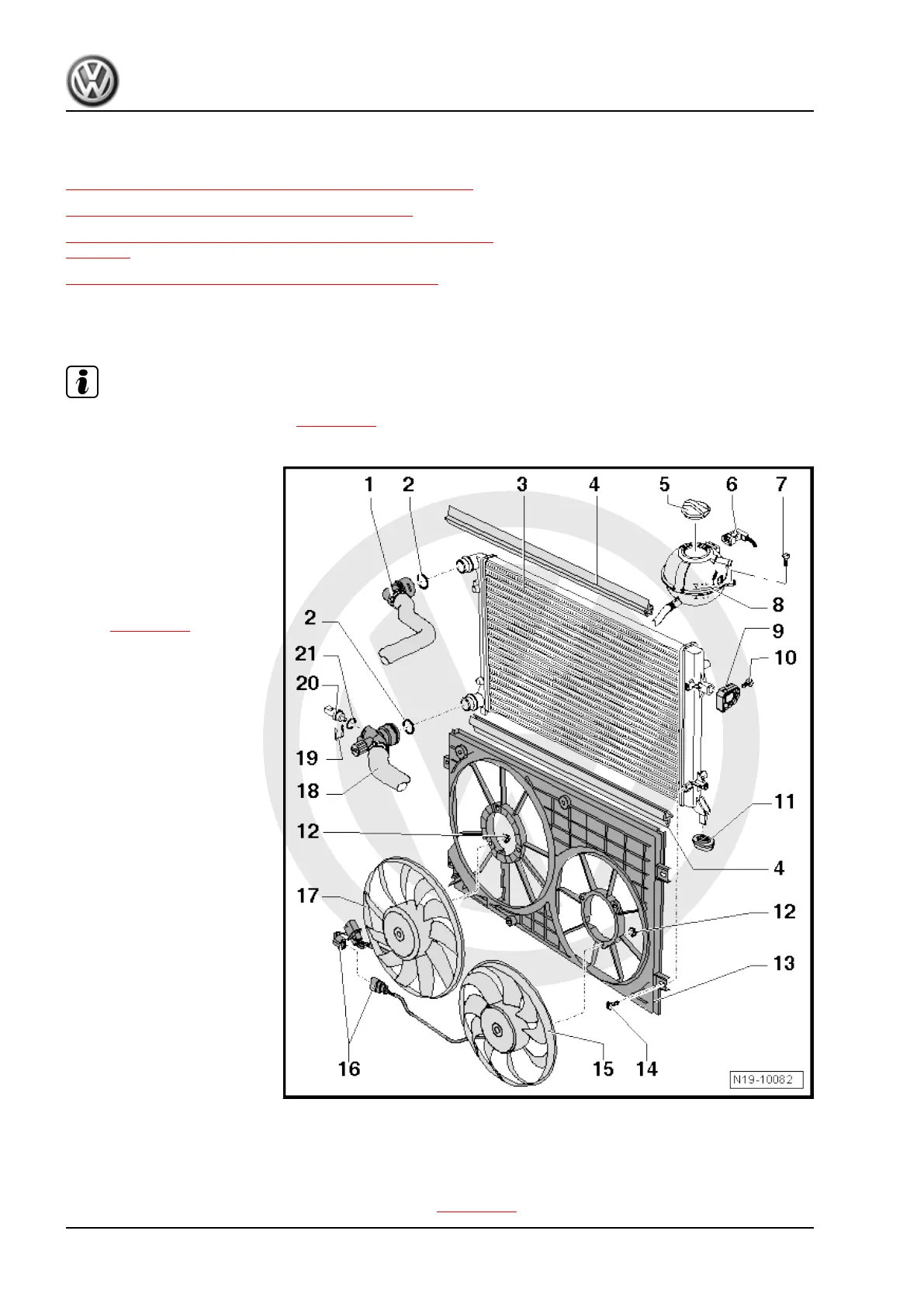

3.1 Assembly overview - radiator/radiator
fan
Note
Coolant hose schematic diagram ⇒ page 138
1 - Upper coolant hose
❑ To connection on cylin‐
der head.
2 - O-ring
❑ Renew if damaged
3 - Radiator/cooler
❑ Removing and installing
⇒ page 155
❑
After renewing, renew
entire coolant.
4 - Seal
5 - Cap
❑ Check using cooling
system tester - V.A.G
1274- and adapter for
cooling system tester -
V.A.G 1274/9-
❑ Pressure relief valve
must open at between
1.4 and 1.6 bar
6 - Connector
7 - 5 Nm
8 - Expansion tank
❑ Check cooling system
for leaks using cooling
system tester - V.A.G
1274- and adapter for
cooling system tester -
V.A.G 1274/8-
9 - Holder
❑ For radiator
10 - 5 Nm
11 - Support
12 - 10 Nm
13 - Radiator cowl
❑ Removing and installing radiator cowl with fans
⇒ page 157 .
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
154 Rep. gr.19 - Cooling
