Volkswagen CC 2012 User Manual

24 – Mixture preparation - injection
1 Injection system
⇒ “1.1 Overview of fitting locations - injection system”,
page 160

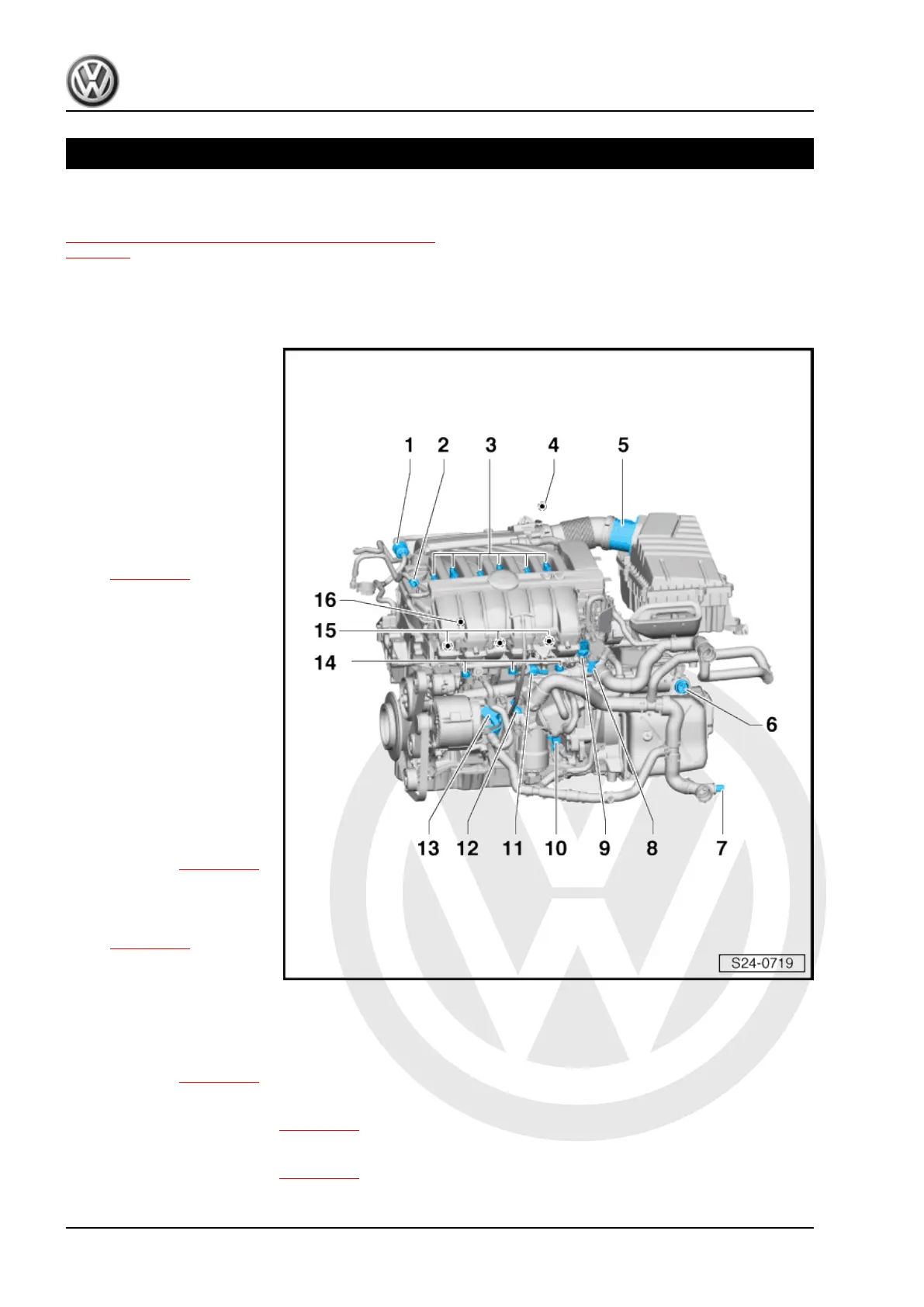

1.1 Overview of fitting locations - injection system
Part 1
1 - Activated charcoal filter sol‐
enoid valve 1 - N80-
2 - Fuel pressure sender for
low-pressure - G410 -
3 - Ignition coil with output
stage - N70, N127, N291,
N292, N323, N324-
4 - Engine control unit - J623 -
❑ Fitting location: in ple‐
num chamber
❑ Removing and installing
⇒ page 189
5 - Air mass meter - G70-
6 - Connection for gearbox me‐
chatronic unit
7 - Radiator outlet coolant tem‐
perature sender - G83-
8 - Fuel pressure regulating
valve - N276-
❑ in the high pressure
pump
9 - Fuel pressure sender -
G247-
❑ in the fuel rail for Cylin‐
ders 2, 4 and 6
❑ Checking ⇒ page 186
10 - Engine speed sender -
G28-
❑ Removing and installing
⇒ page 215
11 - Knock sensor 2 - G66-
❑ Fitting location: be‐
tween cylinder 4 and cylinder 6
12 - Oil pressure switch - F1-
❑ 0.9 bar switch
❑ Checking ⇒ page 135
13 - Continued coolant circulation pump - V51-
❑ Removing and installing ⇒ page 153
14 - Injector, cylinder 2 - N31- , injector, cylinder 4 - N33- , injector, cylinder 6 - N84- .
❑ Removing and installing ⇒ page 166
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
160 Rep. gr.24 - Mixture preparation - injection
