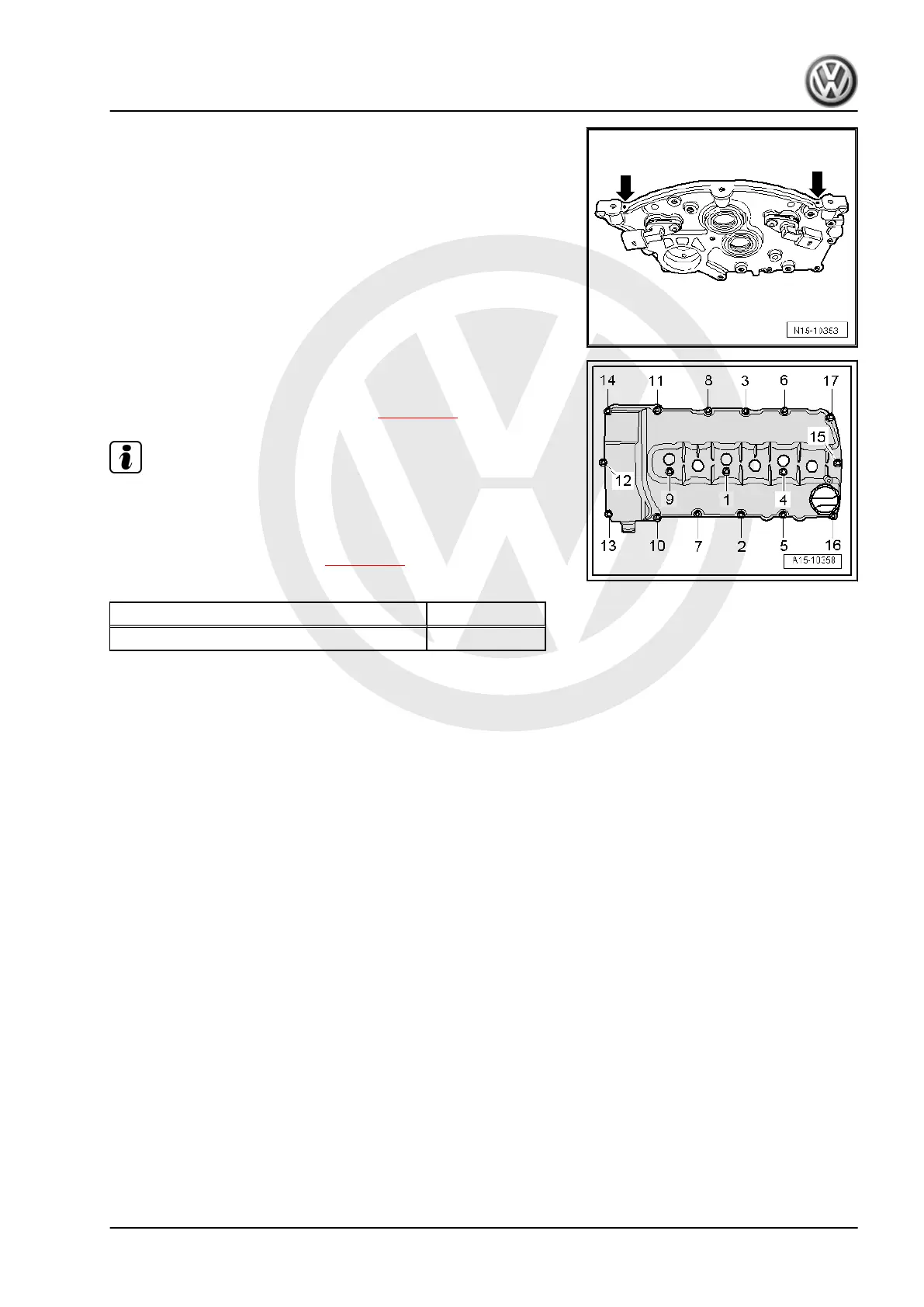

Installing:
– Apply a small amount of sealant - D 454 300 A2- to cover at
positions marked -arrows-.
– Fit cylinder head cover and tighten the bolts equally from in‐
side out -1…17-.
– Install upper part of intake manifold ⇒ page 181 .
Note
♦
Renew cylinder head cover if damaged or leaking.
♦
Ensure fuel hoses are seated correctly.
– If necessary fill with coolant ⇒ page 142 .
Torque settings
Bolted connection Torque setting
Cylinder head cover to cylinder head 10 Nm
1.4 Assembly overview - vacuum pump
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
1. Cylinder head 69
