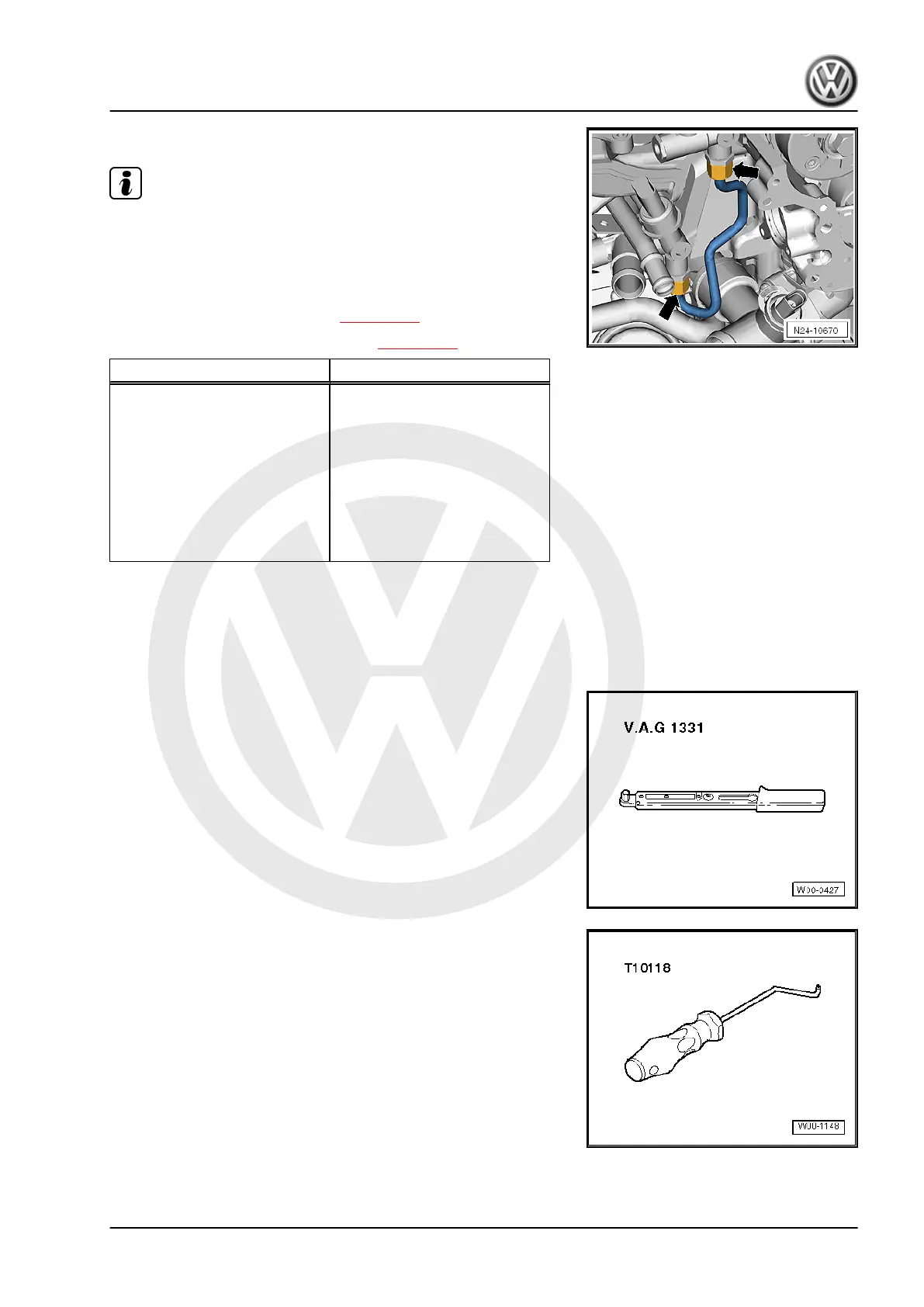

– Install connecting pipe of fuel rail.
Note
♦
First tighten union nuts for connection pipe hand tight, then
tighten to specified torque.
♦
Make sure that the connecting pipe does not touch any other
components.
– Installing high-pressure pump ⇒ page 195 .
– Install upper part of intake manifold ⇒ page 181 .
Bolted connection Torque setting
Intake manifold lower part to
cylinder head
8 Nm
Fuel rail to cylinder head
4)
30 Nm + 90° (
1
/
4
turn) further
High-pressure pump to cylinder
head
10 Nm
Union nuts for high-pressure
fuel line
28 Nm
Union nuts for fuel rail connect‐
ing line
28 Nm
4) Renew
4.3 Removing and installing intake manifold
upper part
Special tools and workshop equipment required
♦ Torque wrench - V.A.G 1331-
♦ Assembly tool - T10118-
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
4. Intake manifold 181
