– The gap between markings of camshaft adjuster must be ex‐
actly 16 rollers of camshaft timing chain.
If the markings do not align:
– Adjust valve timing ⇒ page 93 .
If the markings align:
– Install cylinder head cover ⇒ page 68 .
– Install upper part of intake manifold ⇒ page 181 .

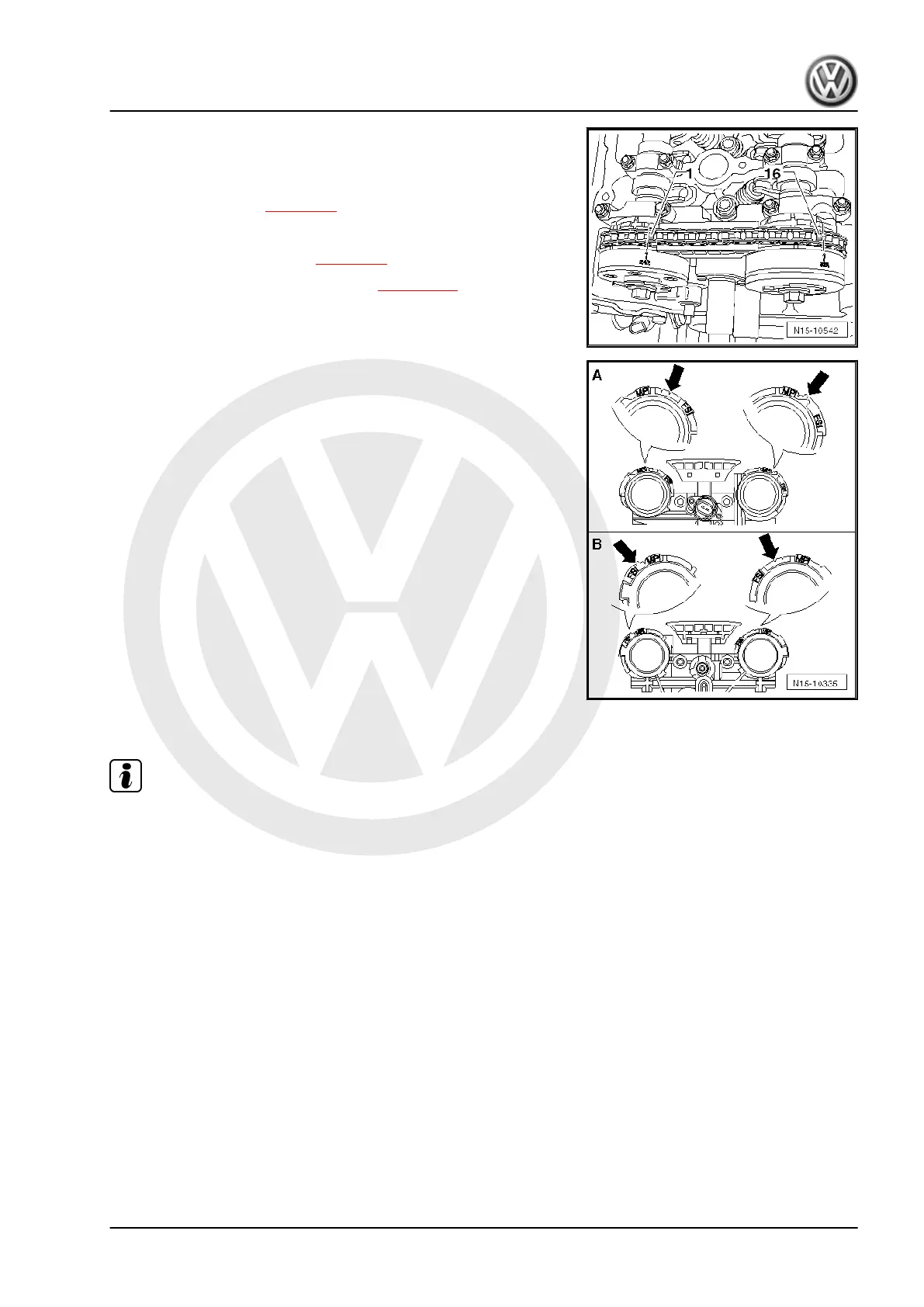

Markings on timing housing on FSI engines
-A- View from flywheel end
-B- View from vibration damper end
The markings on camshaft adjusters must align with notches
-arrows-.
3.6 Adjusting valve timing
Note
Procedure is possible only with gearbox removed.
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
3. Chain drive 93
