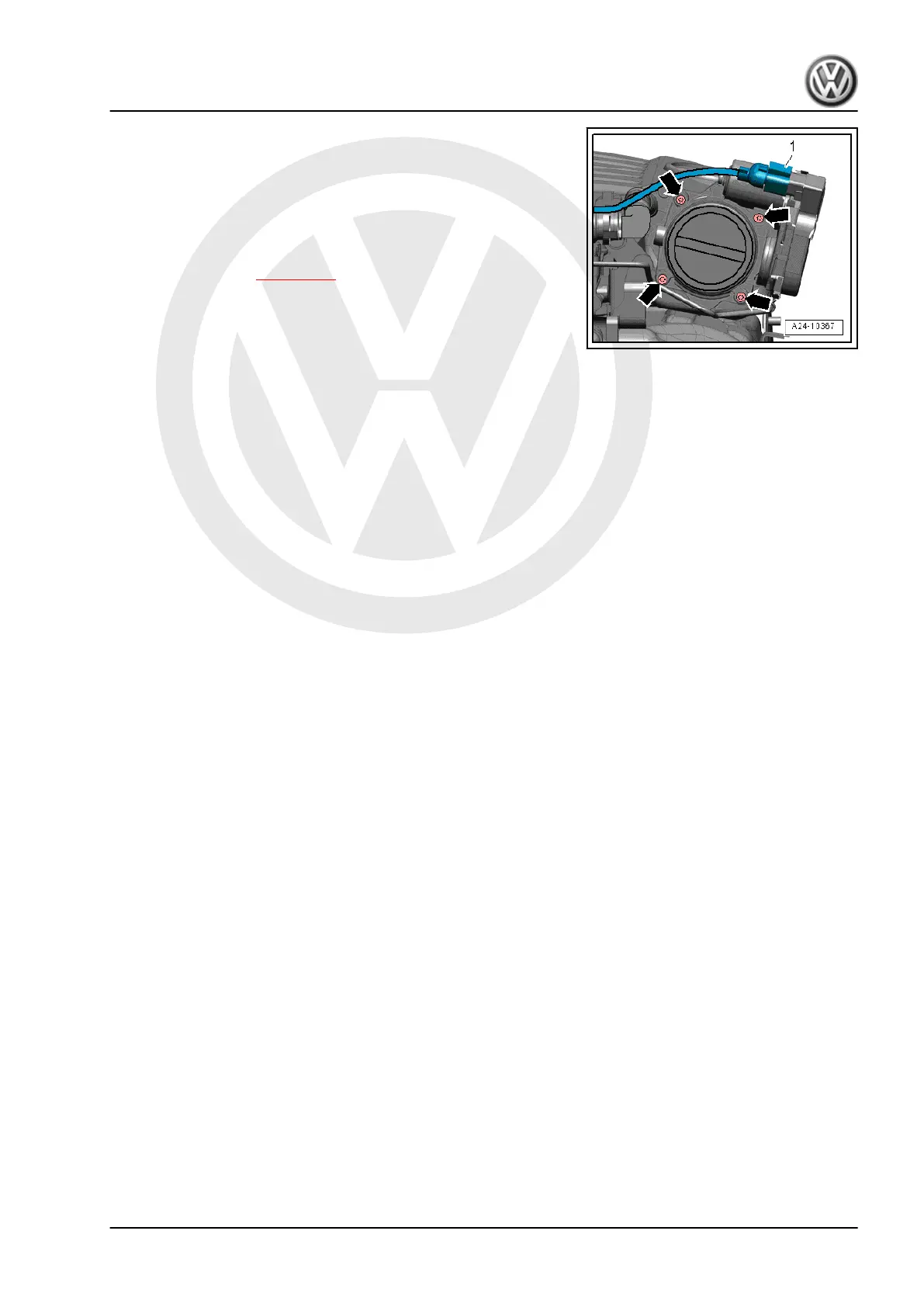

– Separate electrical connector -1- on throttle valve module -
J338- .
– Remove bolts -arrows- and detach throttle valve module -
J338- .
Installing:
Install in reverse order of removal, observing the following.
– Specified torques ⇒ page 176 .
– Make sure that gasket is correctly seated in intake manifold.
– If throttle valve module - J338- is renewed, adapt engine con‐
trol unit to throttle valve module - J338- ⇒ Vehicle diagnostic
tester “Guided Functions”.
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
4. Intake manifold 185
