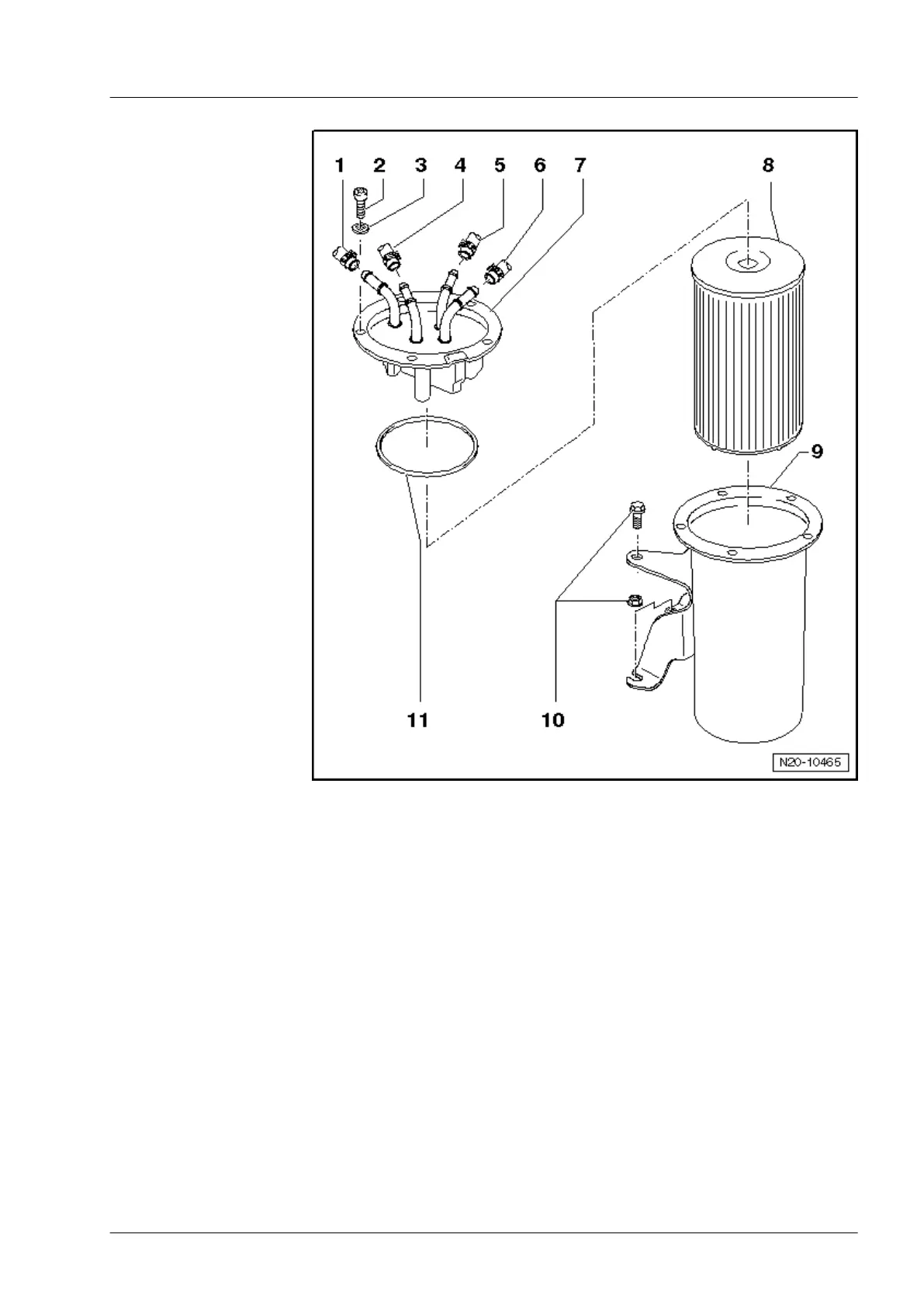

1 - Fuel line
q Make sure it is firm-
ly seated
q Connection over-
view ⇒ Page 305.
2 - 5 Nm
3 - Washer
4 - Fuel line
q
Make sure it is firm-
ly seated
q
Connection over-
view ⇒ Page 305.
5 -
Fuel line
q
Make sure it is firm-
ly seated
q
Connection over-
view ⇒ Page 305.
6 - Fuel line
q Make sure it is firm-
ly seated
q Connection over-
view ⇒ Page 305.
7 - Upper part of fuel fil-
ter
q
Observe various
types ⇒ Page 305
q
Connection over-
view ⇒ Page 305.
q Removing and in-
stalling ⇒ Page 305
8 - Filter insert
9 - Lower part of fuel filter
10 - 10 Nm
11 - Seal
q Renew
1.4.2 Upper part of fuel filter
Type A ⇒ Fig. on page 306
Type B ⇒ Fig. on page 306
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
3
1 Removing and installing parts of fuel supply system
