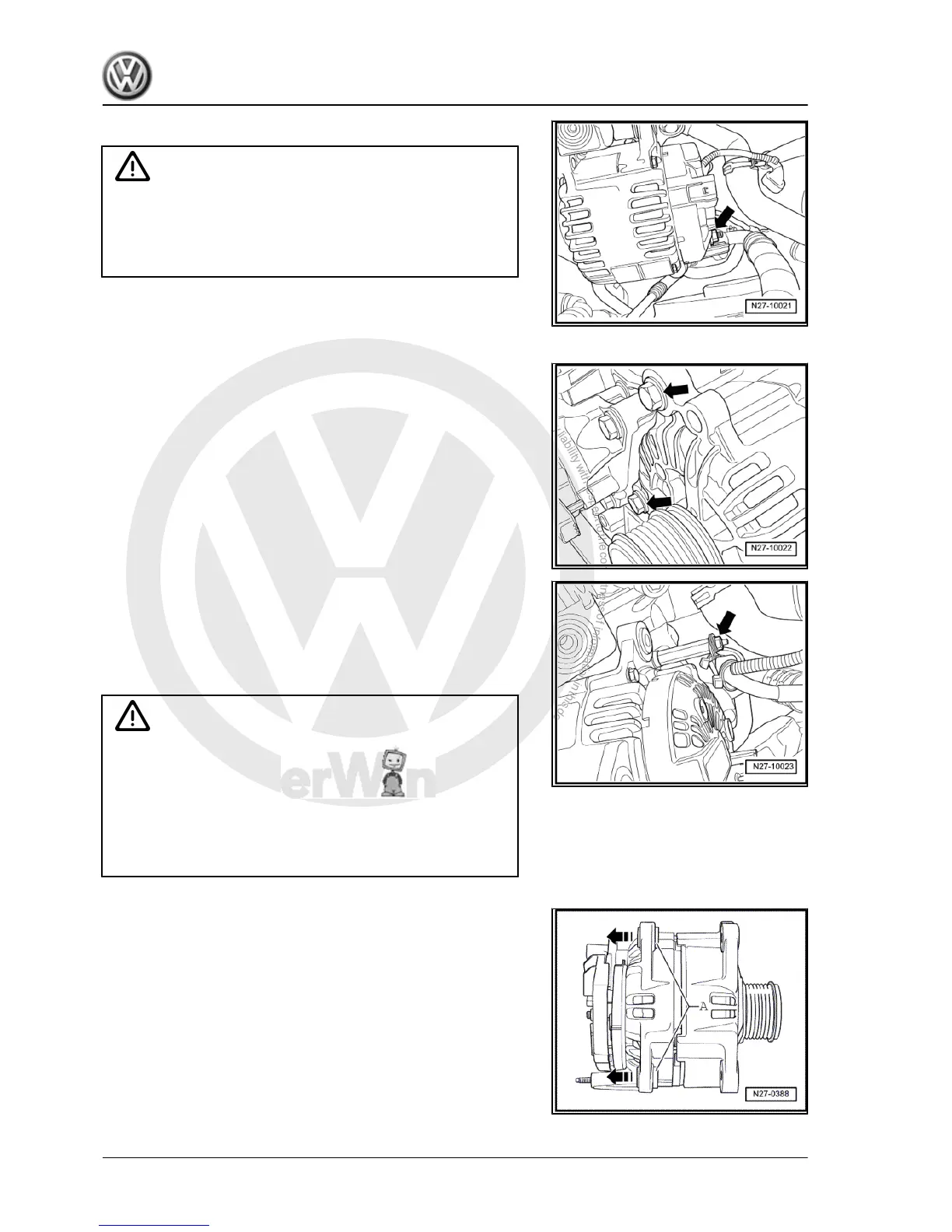

– Unscrew B+ wire -arrow- from alternator -C- .
Caution
Before removing, mark the top side and direction of rotation of
the poly V-belt. When installing, ensure correct fitting position
and direction of rotation. If the belt is installed in the wrong
position or against direction of rotation, the belt will be de‐
stroyed!
– Remove the upper idler wheel, lower idler wheel and the poly
V-belt tensioner for alternator -C- and coolant pump ⇒ Engine;
Rep. gr. 13 .
– Remove bolts of alternator -C- -arrows-.
– Unscrew wiring retainer from alternator -C- -arrow-.
– Take alternator -C- out upwards.
Installing
Install in the reverse order of removal. When doing this, note the
following:
Caution
♦ When installing used poly V-belts observe the direction of
rotation marked on removal!
♦ Before installing poly V-belt, make sure all assemblies
( alternator -C- / air conditioner compressor) are firmly in
position.
♦ When fitting belt, ensure that poly V-belt seats correctly in
pulleys!
– Drive threaded sleeves -A- roughly 4 mm in direction of arrow
out of alternator -C- housing.
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
130 Rep. gr.27 - Starter, current supply, CCS
