3 Rear window wiper system
Note
Additional information:
⇒ Operating instructions

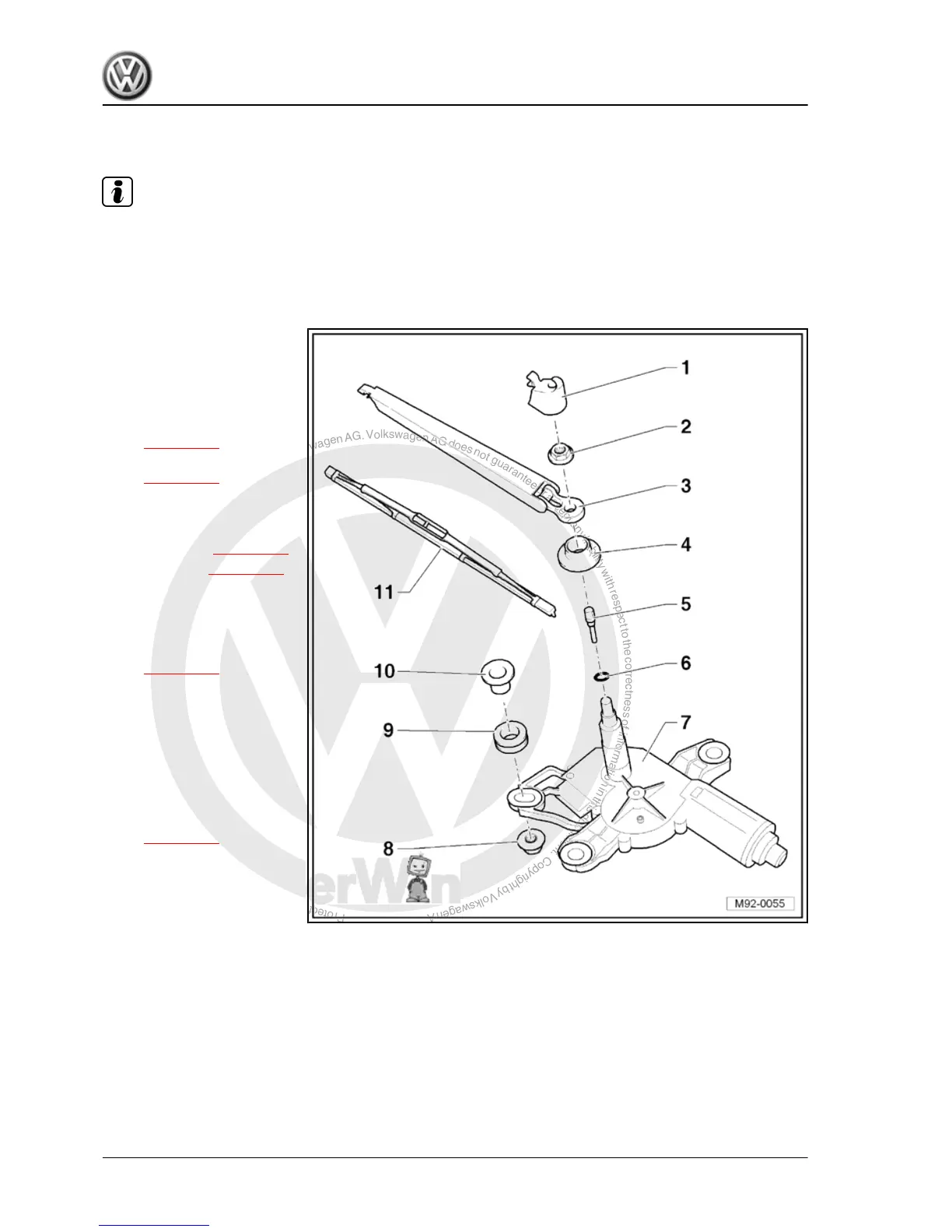

3.1 Assembly overview - rear window wiper system
1 - Cover cap
2 - Nut
❑ 12 Nm
3 - Wiper arm
❑ Removing and installing
⇒ page 200
❑ Adjusting park position
⇒ page 202
4 - Seal
5 - Spray jet
❑ Renewing ⇒ page 206
❑ Adjusting ⇒ page 206
6 - Seal
7 - Rear window wiper motor -
V12-
❑ Removing and installing
⇒ page 201
8 - Nut
❑ 8 Nm
9 - Rubber ring
10 - Spacer
11 - Wiper blade
❑ Removing and installing
aerodynamic wipers
⇒ page 203 .
3.2 Removing rear window wiper
3.2.1 Removing and installing wiper arm
Removing
– To place wiper motor in its park position, switch rear window
wiper on and off with ignition on.
– Lift up and unclip cap -1- of rear window wiper.
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
200 Rep. gr.92 - Windscreen wash/wipe system
