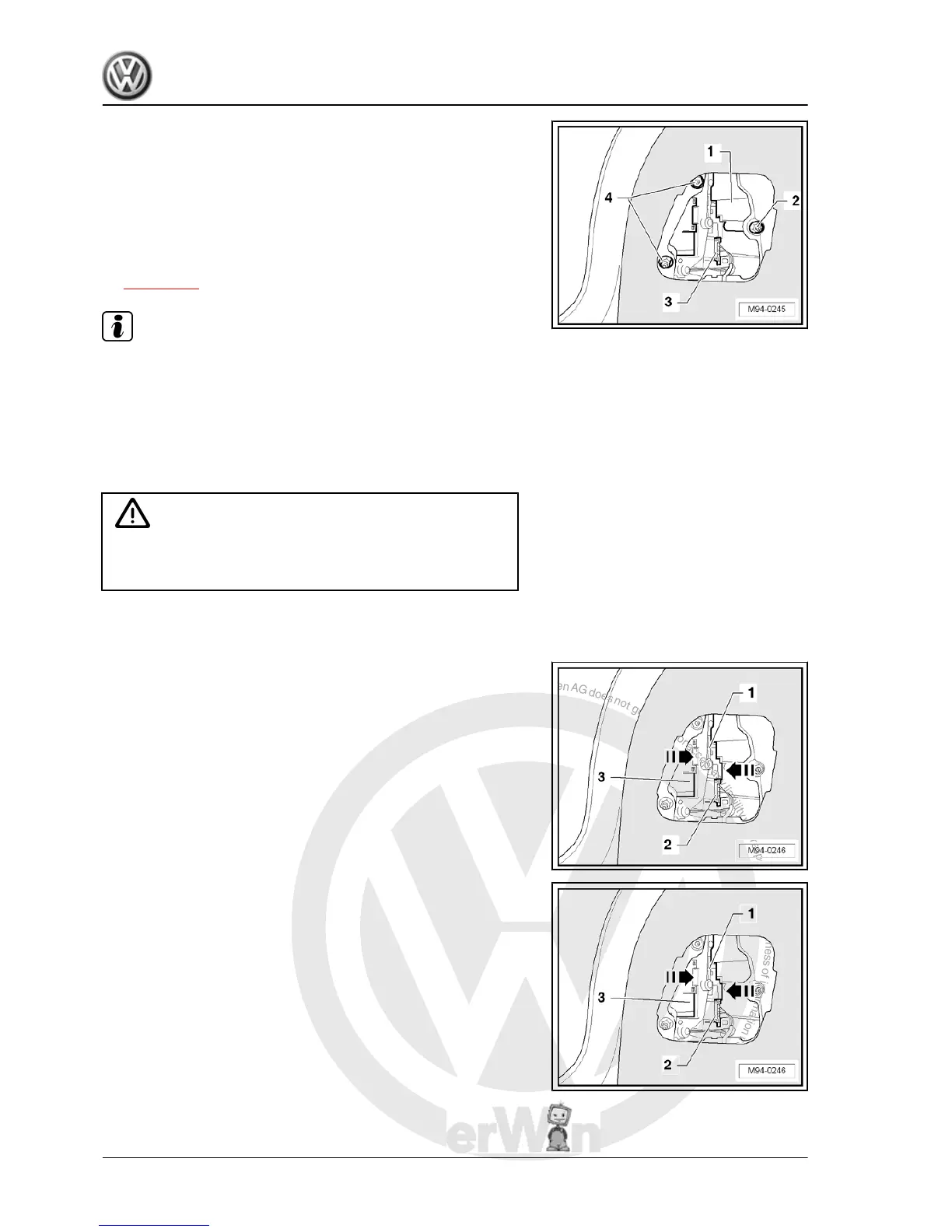

– Disconnect connector -3-.
– Unscrew nuts -2- and -4- for tail light -1-.
– Remove tail light -1-.
Installing
Carry out installation in the reverse sequence, noting the follow‐
ing:
– Tighten all threaded connections to specified torques
⇒ page 313 .
Note
Tail light connector in side panel should engage „audibly“.
– When installation is complete, check gap/shut lines of tail light
to body.
9.11 Removing and installing tail light bulb
holder - Variant
Caution
♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
Removing
– Push side panel trim/cover to the side.
– Disconnect connector -2-.
– Unclip fastening tabs -in direction of arrow- and unhook bulb
carrier -1- from tail light housing -3-.
Installing
Installation is carried out in reverse order of removal.
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
314 Rep. gr.94 - Lights, bulbs, switches - exterior
