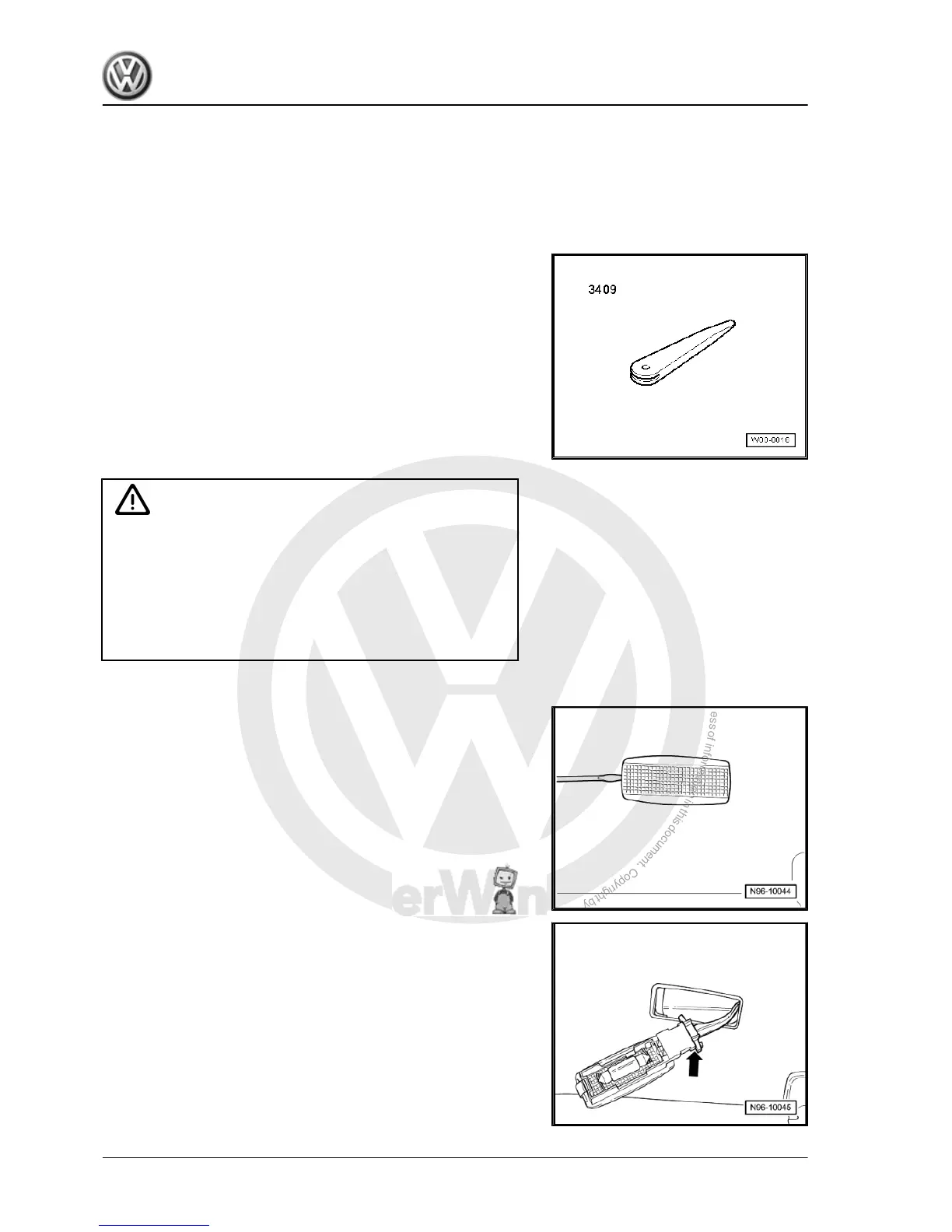

6.5 Removing and installing illuminated
vanity mirrors
The procedure for removing and installing front passenger side
illuminated vanity mirror -W14- / driver side illuminated vanity mir‐
ror -W20- is the same and is described for one only.
Special tools and workshop equipment required
♦ Removal wedge -VAS 3409-
Caution
♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view
(switches, covers, trim), mask off areas where tools ( re‐
moval wedge -VAS 3409- , screwdriver) are used to lever
out those components using commercially available
masking tape.
Removing
– Use removal wedge -VAS 3409- to prise front passenger side
illuminated vanity mirror -W14- carefully out of roof trim.
– Disconnect connector -arrow-.
Renewing bulb:
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
416 Rep. gr.96 - Lights, bulbs, switches - interior
