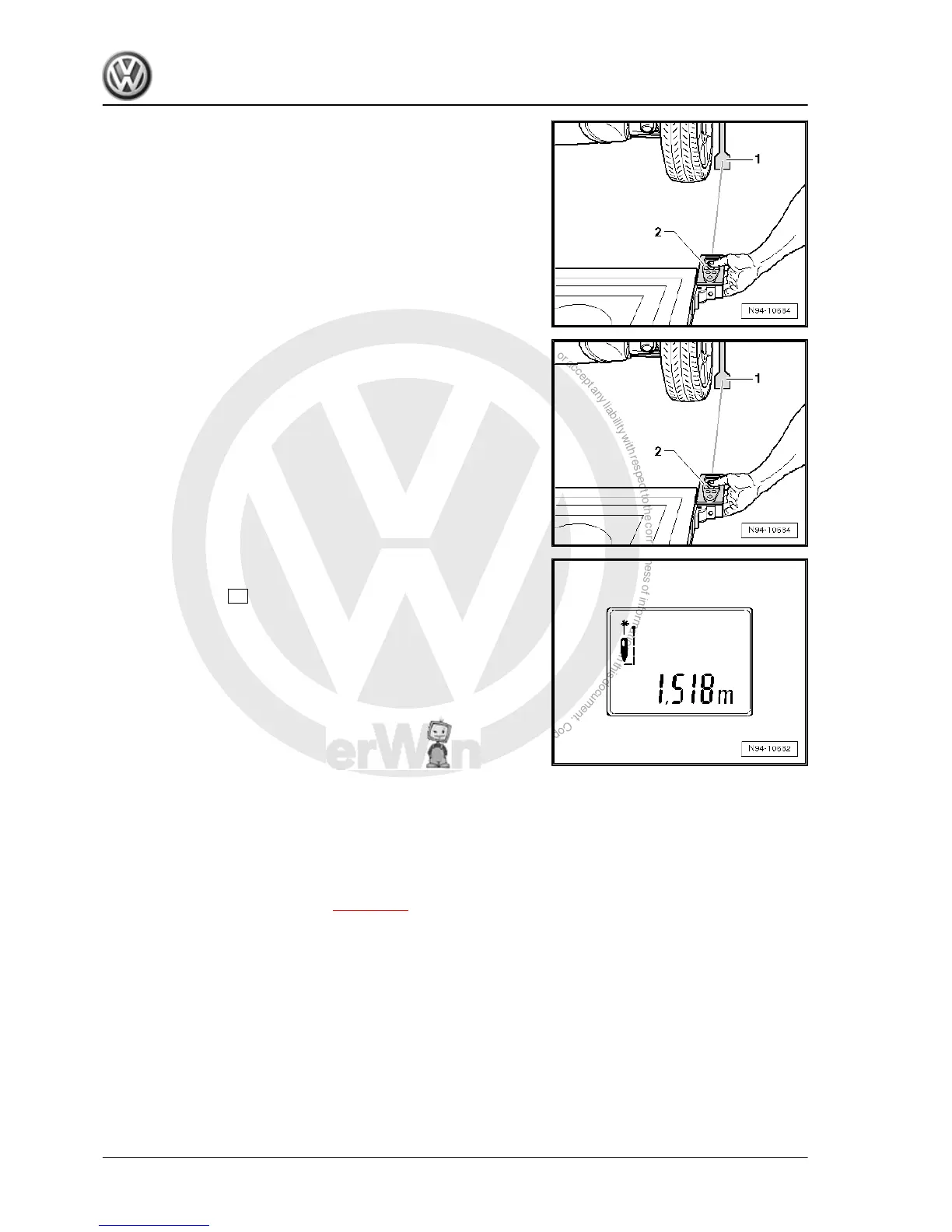

– Hold spacing laser -VAS 6350/2- -2- as shown in illustration
flush against bracket on one side of calibration unit -VAS
6350/4- so that spacing laser -VAS 6350/2- lies firmly against
bracket.
– Make sure that laser beam of from spacing laser -VAS 6350/2-
hits lower, enlarged part of paddle -1-.
If this is not the case, adjust paddles accordingly on wheel mount‐
ing -VAS 6350/1- using clamping bolts.
– Hold spacing laser -VAS 6350/2- in bracket on calibration de‐
vice -VAS 6350/4- while laser beam is visible on paddle. Now
briefly press the ON button to measure distance. The following
appears in the display:
The distance is shown on the display in „metres“.
– Note the measured value.
– Repeat measuring process in same manner for other rear
wheel on other side of calibration unit -VAS 6350/4- .
Measured distance value must be identical on both sides. If value
is not identical, adjust calibration unit -VAS 6350/4- until values
on both sides are identical.
When adjusting the calibration unit -VAS 6350/4- , ensure that the
laser beam of the linear laser -VAS 6350/3- continues to hit the
vehicle centrally above the VW logo and that the spirit level indi‐
cator remains in the centre. Adjust accordingly if required.
The distance measured must be entered in „millimetres“ in the
vehicle diagnostic, testing and information system -VAS 5051B-
during calibration.
Calibrate reversing camera system ⇒ page 378 .
16.4.2 Calibrating reversing camera system
Special tools and workshop equipment required
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
378 Rep. gr.94 - Lights, bulbs, switches - exterior
