12 - Power output module for left headlight -J667- / power output module for right headlight -J668-
13 - Front end support part
14 - Vehicle level sender
❑ Removing and installing ⇒ page 294
15 - Bolts
❑ 5 Nm
16 - Headlight range control unit -J431-
❑ 1.5 Nm
❑ Removing and installing ⇒ page 290
❑ Coding ⇒ page 291
4.3 Removing and installing headlight
Note
♦ You do not have to disconnect the earth wire of the battery -
A- .
♦ Illustrations show removal and installation of the left headlight.
Removal and installation of the right headlight are carried out
in the same way.
♦ If a headlight is removed, it should always be adjusted follow‐
ing installation ⇒ Maintenance ; Booklet 20.1 ; Description of
work .

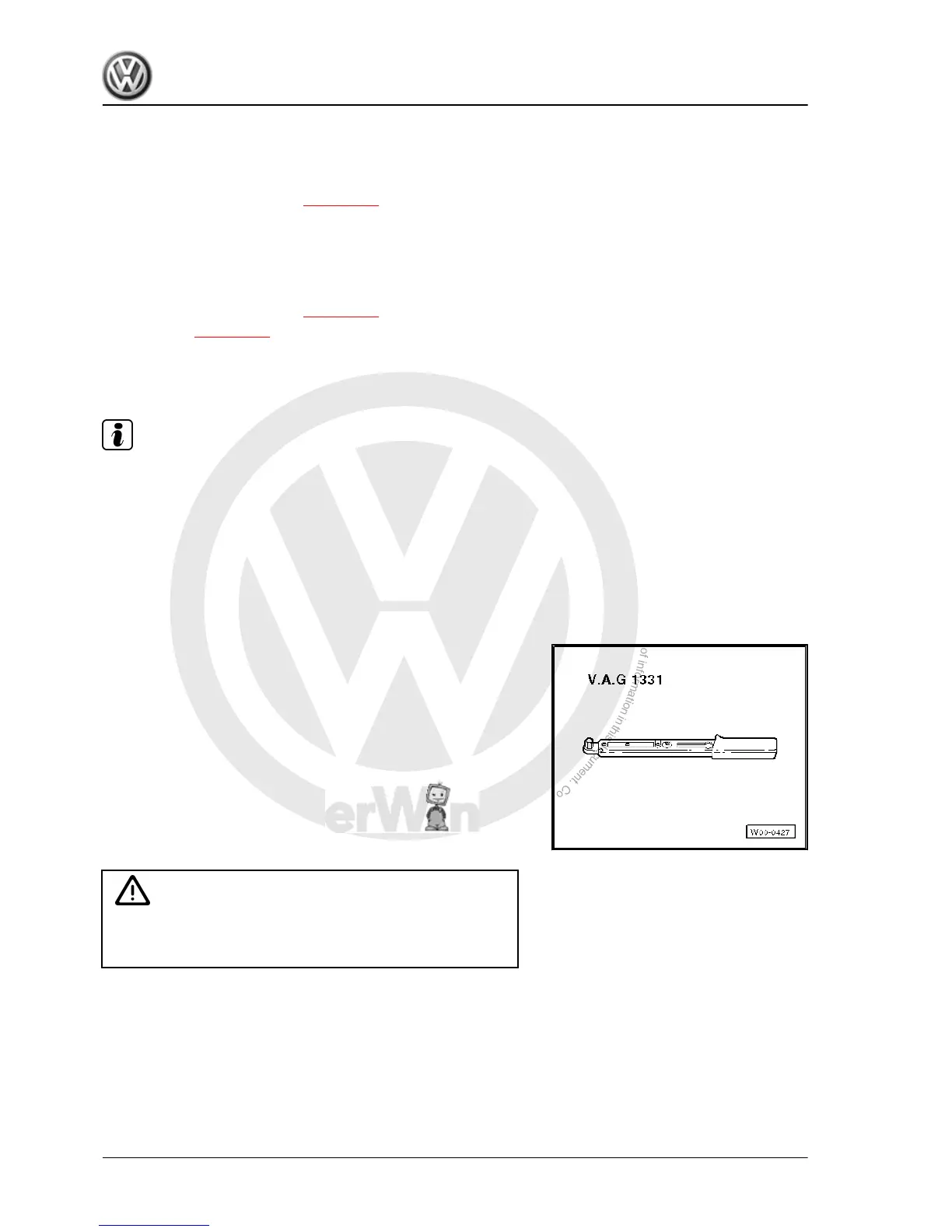

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-
Caution
♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
Removing
– Remove the radiator grille ⇒ General body repairs, exterior;
Rep. gr. 66 .
– Remove front bumper cover ⇒ General body repairs, exterior;
Rep. gr. 63 .
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
280 Rep. gr.94 - Lights, bulbs, switches - exterior
