6.3 Removing and installing starter -B-
(DSG)

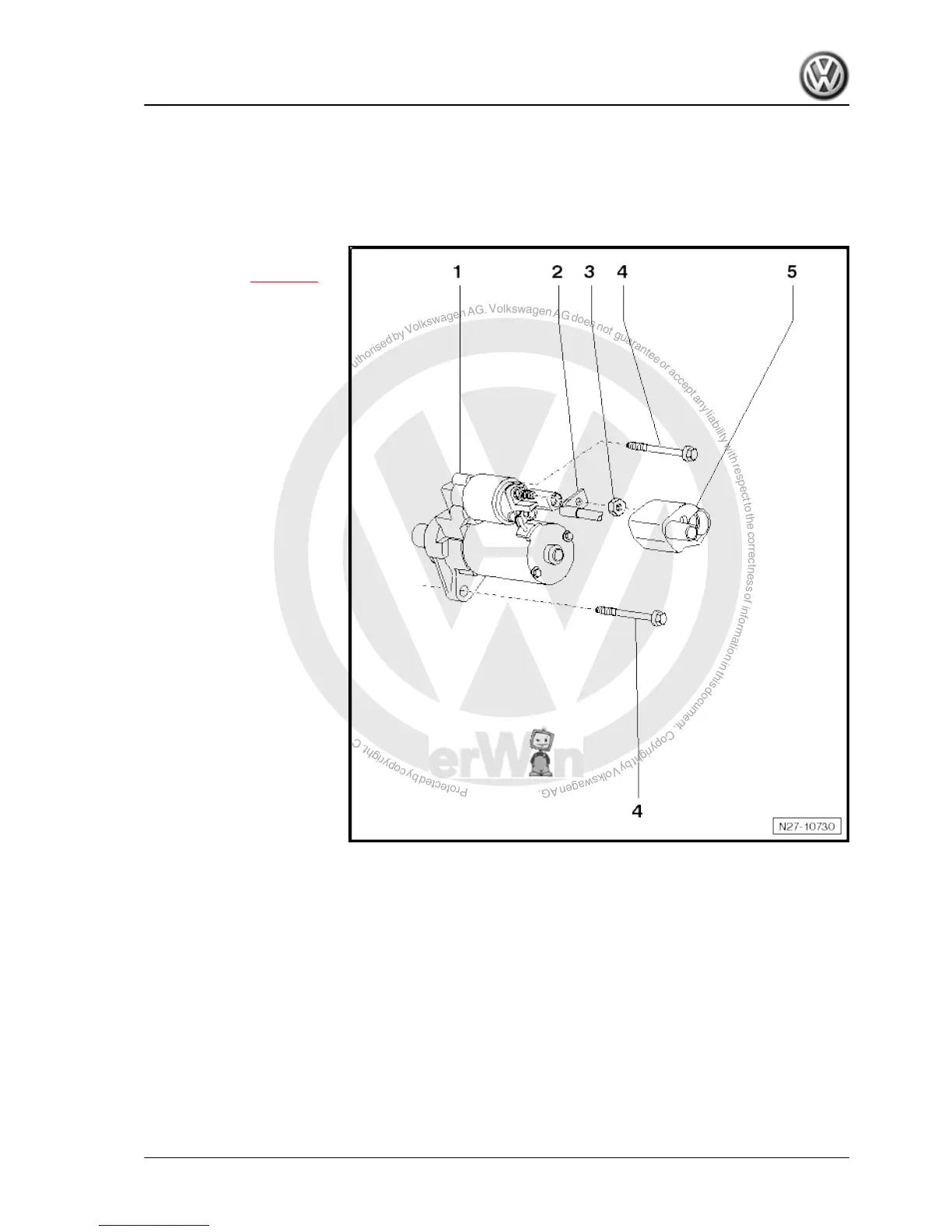

6.3.1 Assembly overview - starter -B-
1 - Starter -B-
Checking ⇒ page 13
2 - Battery positive wire con‐
nection to starter -B-
3 - Nut
20 Nm
4 - Bolt
M12 = 75 Nm
M10 = 40 Nm
5 - Protective cap
Not illustrated
Air filter housing bolt to body: 10 Nm
6.3.2 Vehicles with 1.4l TSI engine (90kW)
Special tools and workshop equipment required
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
6. Starter B 35
