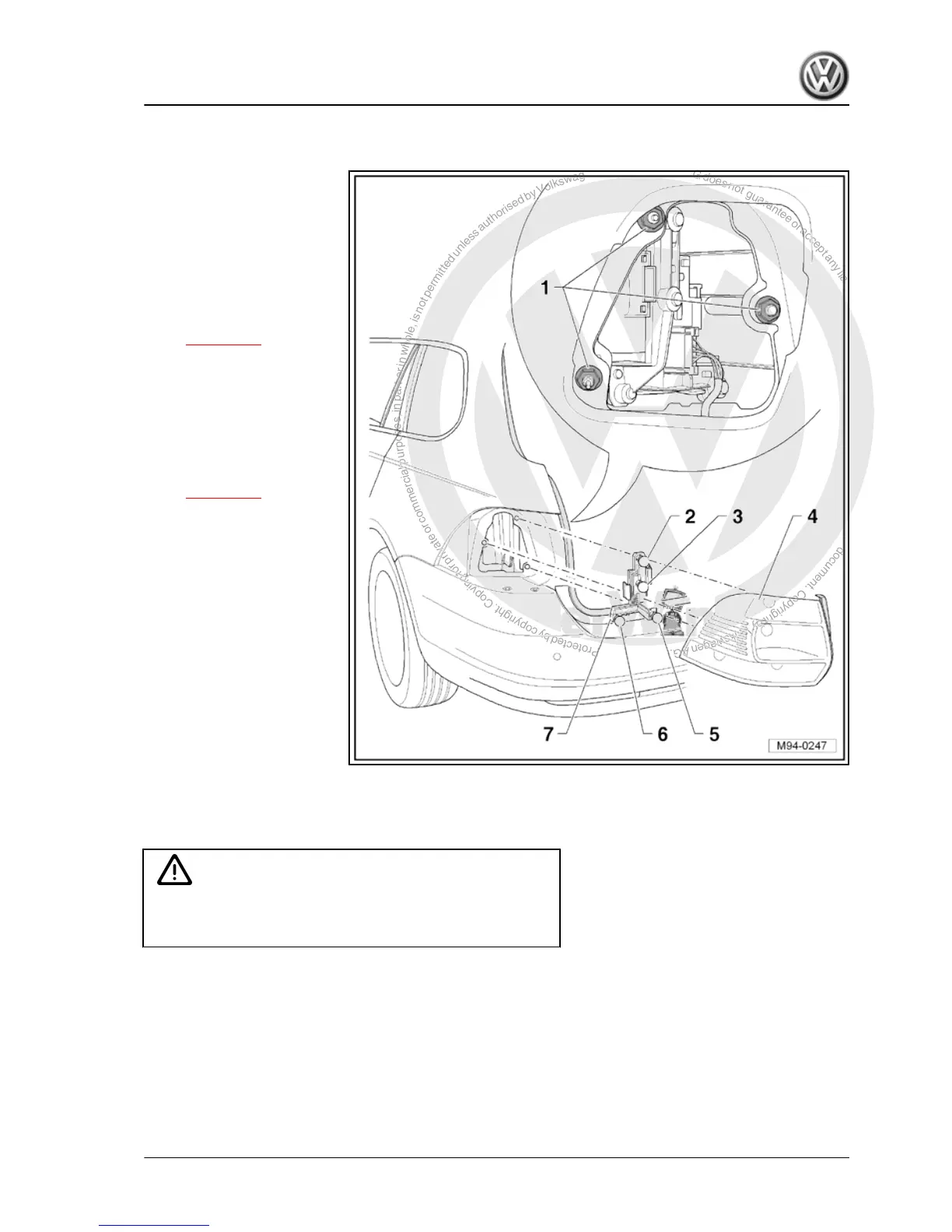

9.9 Assembly overview - tail light - Variant
1 - Nut
❑ 3.5 Nm
2 - Left brake light bulb -M9- /
right brake light bulb -M10-
3 - Right tail light bulb -M2- / left
tail light bulb -M4-
4 - Tail light housing
❑ Removing and installing
⇒ page 313
5 - Rear fog light bulb -L20- /
right reversing light bulb -M17-
6 - Rear left turn signal bulb -
M6- / rear right turn signal bulb
-M8-
7 - Bulb carrier
❑ Removing and installing
⇒ page 314
9.10 Removing and installing tail light - Var‐
iant
Caution
♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
Removing
– Push side panel trim/cover to the side.
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
9. Tail lights 313
