10 Horn
10.1 Removing and installing treble horn -
H2- / bass horn -H7-
The treble horn -H2- / bass horn -H7- are actuated in parallel by
the onboard supply control unit -J519- .
Treble horn -H2- / bass horn -H7- are installed on the left and right
next to the longitudinal members.
Treble horn -H2- / bass horn -H7- are installed and removed in
same way.
Caution
♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

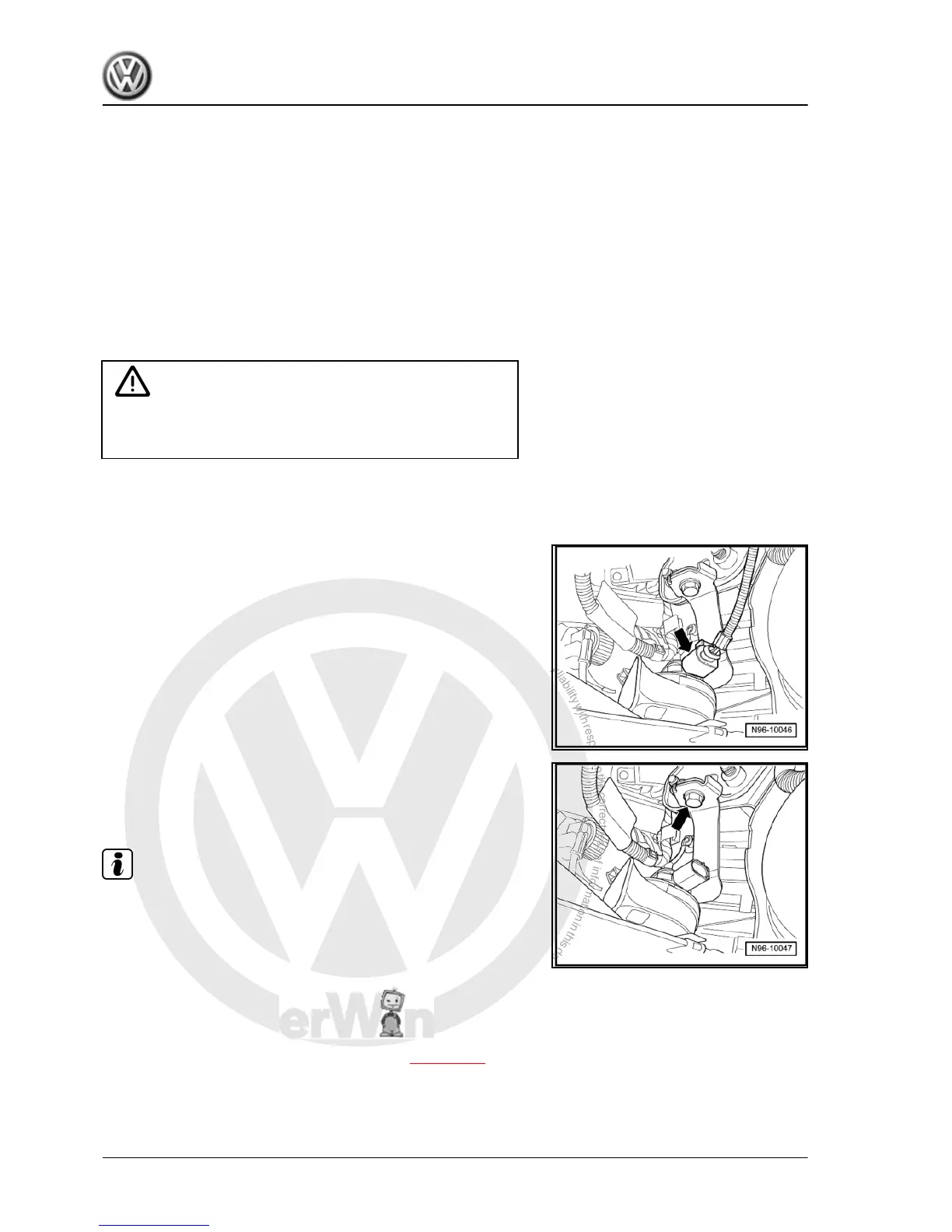

Removing
– Remove noise insulation ⇒ General body repairs, exterior;
Rep. gr. 50 .
– Disconnect connector -arrow-.
– Remove screw -arrow- and take out treble horn -H2- .
Installing
Installation is carried out in reverse order of removal.
Note
When installing, position the horn so it is not in contact with ad‐
jacent components.
– Tighten bracket bolt on longitudinal member to 20 Nm.
10.2 Checking treble horn -H2- / bass horn -
H7-
Treble horn -H2- / bass horn -H7- can be checked in final control
diagnosis of onboard supply control unit -J519- ⇒ page 453 .
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
438 Rep. gr.96 - Lights, bulbs, switches - interior
