3.2 Fuel tank, vehicles with four-wheel drive

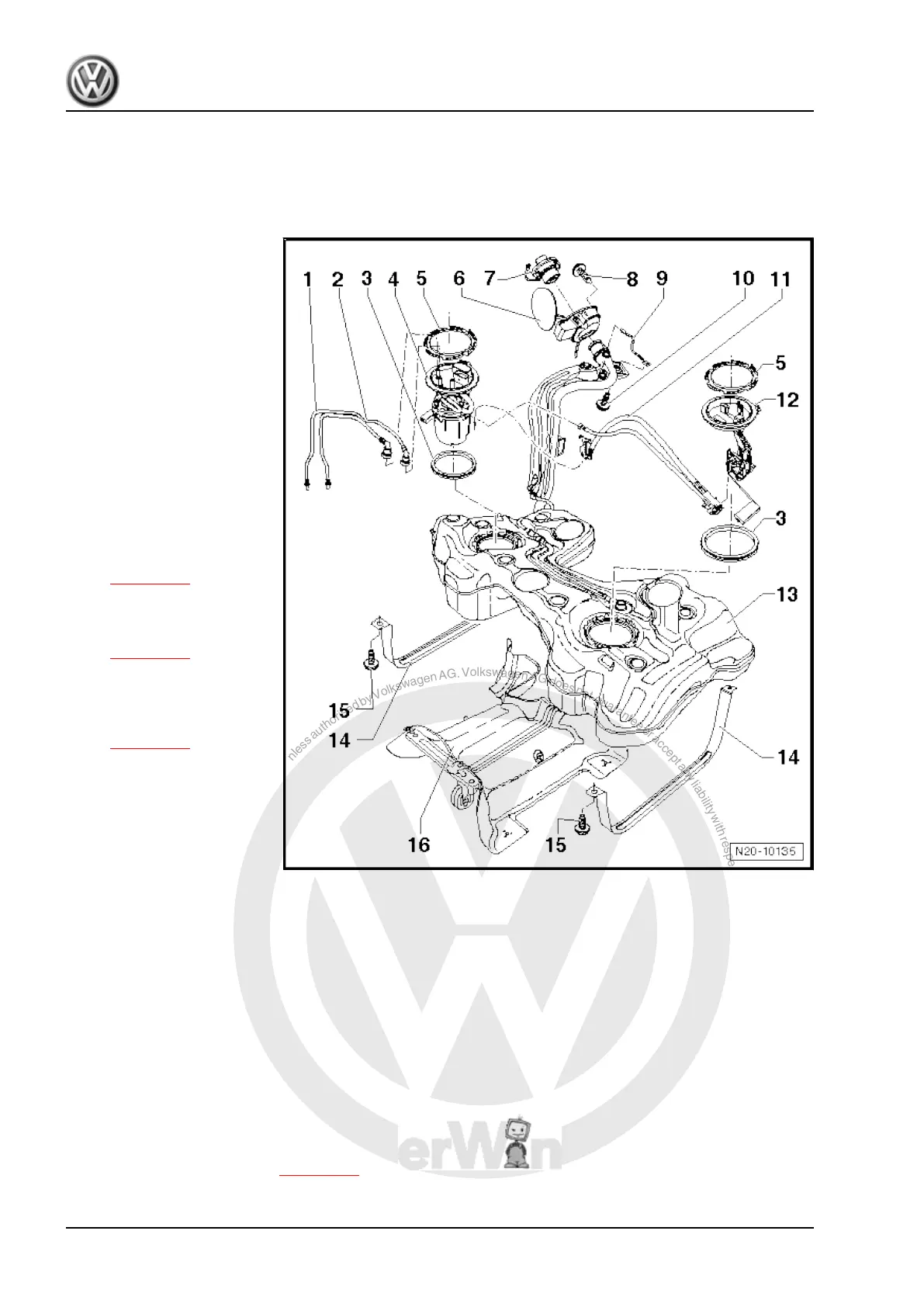

3.2.1 Assembly overview - fuel tank
1 - Supply line
❑ Black
❑ Check for secure seat‐
ing.
2 - Return line
❑ Blue
❑ Check for secure seat‐
ing.
3 - Seal
❑ Renew.
❑ When installing, fit dry in
fuel tank opening.
❑ Moisten with fuel only
when installing flange.
4 - Fuel delivery unit
❑ Removing and installing
⇒ page 164 .
❑ Checking fuel pump
❑ Note installation posi‐
tion on fuel tank
⇒ page 157 .
❑ With fuel gauge sender
-G- .
❑ Removing and installing
fuel gauge sender
⇒ page 186 .
5 - Locking ring, 110 Nm
❑ Check for secure seat‐
ing.
❑ Remove and install us‐
ing wrench -T10202- .
6 - Tank flap unit
❑ With rubber cup.
❑ Removing and installing ⇒ General body repairs, exterior; Rep. gr. 55 ; Tank flap unit; Removing and
installing fuel tank flap unit .
7 - Cap
❑ Renew if damaged.
8 - Securing bolt
❑ Tighten to 1.5 Nm.
9 - Earth connection
❑ Check for secure seating.
10 - 10 Nm
11 - Suction-jet pump
❑ Clipped onto fuel gauge sender 2 -G169-
❑ Removing and installing ⇒ page 161 .
Golf 2004 ➤ , Golf Plus 2005 ➤ , Passat 2006 ➤ , Touran 2003 ➤
4-cylinder diesel engine (2.0 l engine, 4 valve) - Edition 02.2011
156 Rep. gr.20 - Fuel supply system
