VOLTCRAFT VSP 2206 User Manual

31

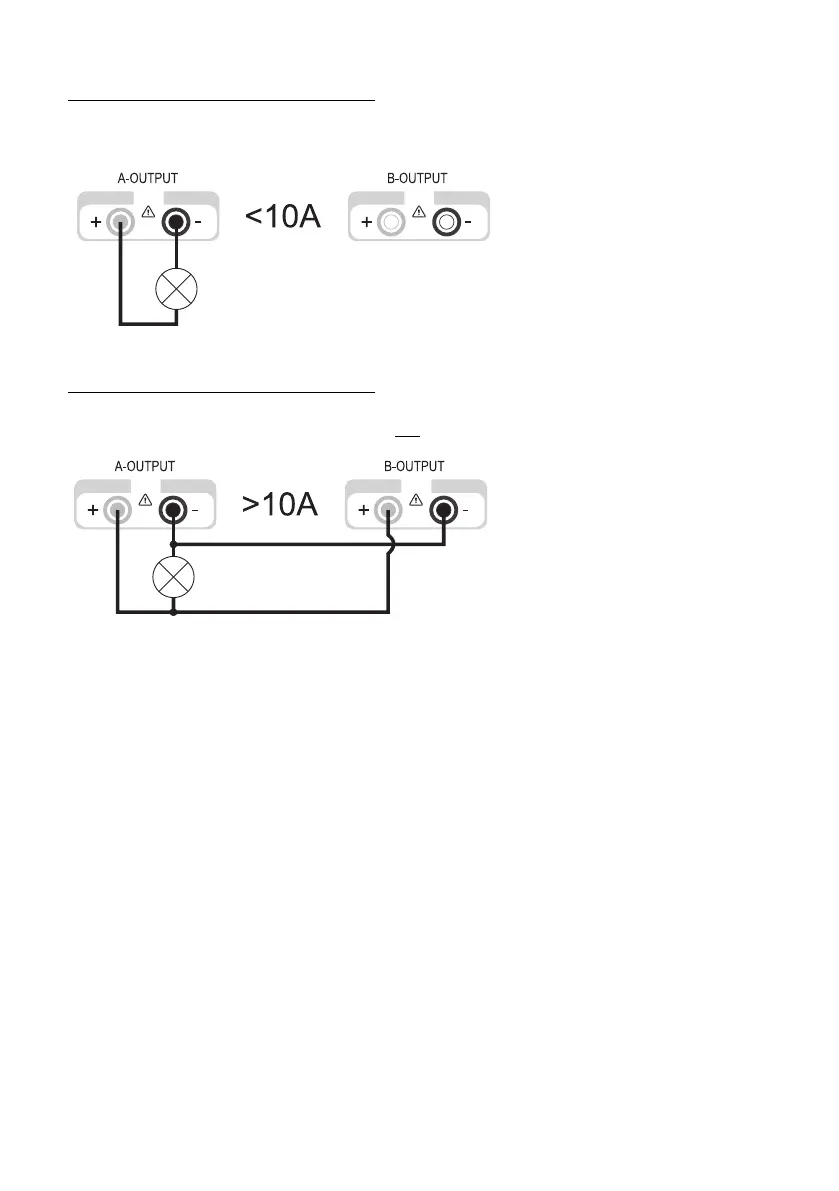

Connection with a total output current of <10
A:
Connect the positive terminal (+) of the consumer with the red socket “+” and the negative terminal (-) of
the consumer with the blue socket “-” of output A.
Connection with a total output current of >10
A:
Connect the positive terminal (+) of the consumer with the red socket “+” and the negative terminal (-) of
the consumer with the blue socket “-” of outputs A and
B.
☞
The double connection increases the conductor cross-section and reduces the voltage
loss in the lines. Use connection lines of the same length and the same conductor cross-
section.
Now you can switch on the connected consumer.
The current consumption of the connected consumer is displayed in Ampere (A) in the power display.
The sum of both current displays corresponds to the output current.

VOLTCRAFT VSP 2206 Specifications

General

Brand	VOLTCRAFT
Model	VSP 2206
Category	Laboratory Equipment
Language	English
