- Rpm intervals, 2500–9000 rpm in 500 rpm stages.
Set 4000 rpm.
- Speed, on/off.
- Speed intervals, 10–100 knots in 10 knot stages.
- Graph intervals: 2 min, 10 min, 30 min, 60 min, 2 h,
4 h or 8 h.
- Speed (Speed): KNOTS, MPH, KM/H

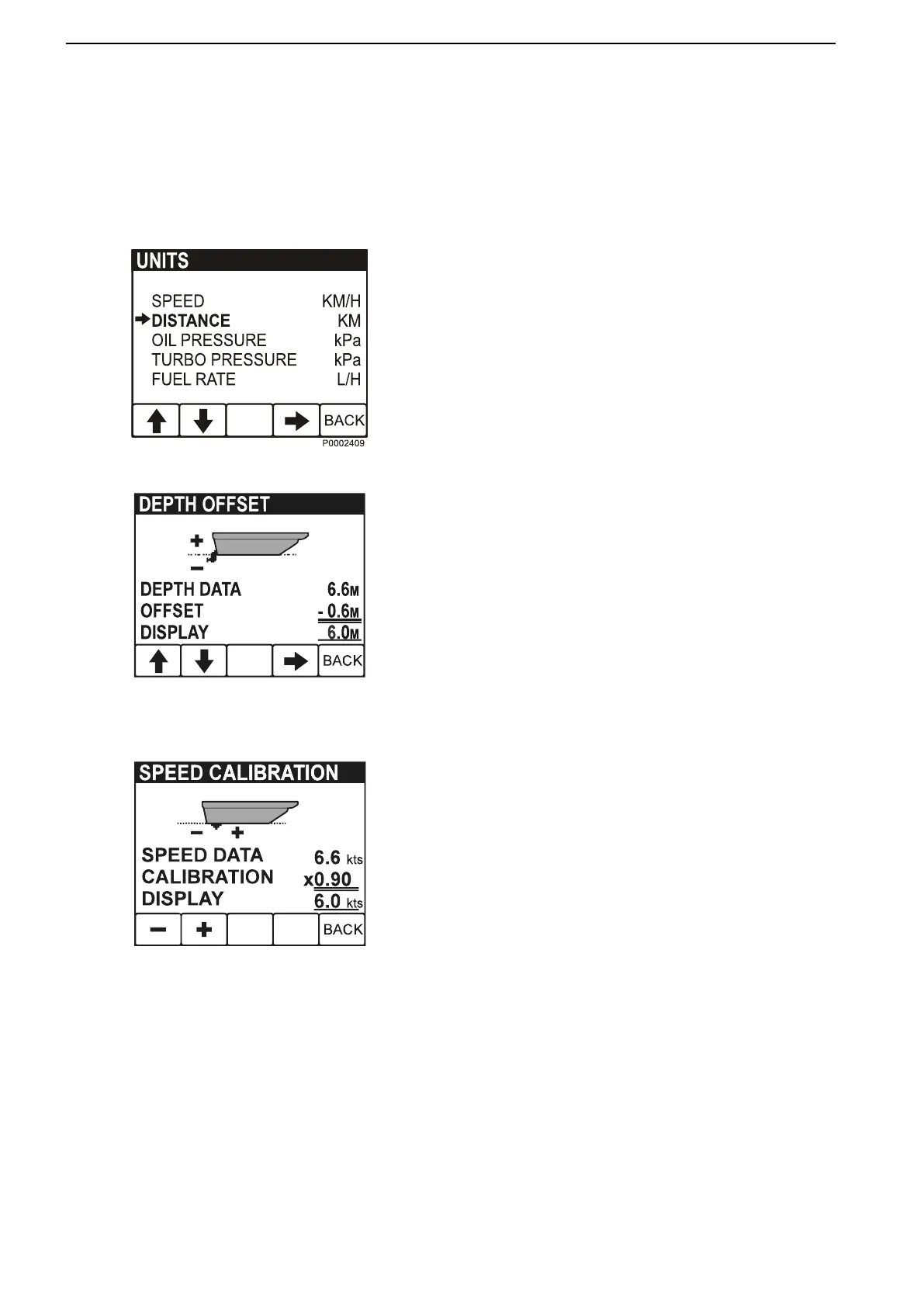

Units: Selection of operational information units to be
shown (this menu is only displayed if “Local” is selected
in the settings menu: “Local” must always be selected
for D1/D2 engines).
- Distance: NM, MILE, KM
- Oil pressure/Turbo pressure: kPa, psi
- Fuel rate: L/H, GAL/H, IGAL/H
- Temperature: °C, °F
Calibration: the engine must be switched on during
calibration.
Depth compensation
Setting the Volvo Penta echo sounder. The echo-soun-
der can be installed anywhere between the waterline
and the boat's deepest point. Set the deviation – off set
– so that the display value shows one of these points.
To adjust the value up (+), set the distance between
the echo-sounder and the waterline; to adjust the value
down (–), set the distance between the echo-sounder
and the boat's deepest point. The value can be set in
0.1 unit stages.
Store the set value by depressing BACK (button 5).
Speed factor
The speed factor must be set while the boat is under
way. Compare the displayed boat speed value with
GPS data (or another boat) and adjust the speed factor
until the values agree.
The speed sensor calibration value can be adjusted
upwards (+) or downwards (-) in stages of 0.01 units
(+ or - 1%). Store the adjusted value by depressing
BACK (button 5).
P0003002
P0003005
Instruments and Controls
16 47702088 05-2011
