Gauge Range: setting instrument maximum range.
Boat Speed: 10 – 100 knots in 10 knot stages.
Engine Speed: 2500/3000/4000/5000/6000 rpm.
Propeller speed: 1000/2000/3000 rpm.
EVC Information: this information cannot be changed.
Features: installed functions are marked blue.
Components: press
OK
to see installed compo-
nents.
Software: information regarding the software ID
number.
Calibration
The following is only displayed if the function is instal-
led. For further information refer to the appropriate
section in the Settings Menu page 119 chapter.
Speed Correction: setting the speed factor.
Depth: setting the echo sounder depth alarm. Fol-
low the instructions on the screen.
Fuel Tank: fuel tank calibration. Follow the instruc-
tions on the screen.
ACP Info: setting the ACP protection position.
PTA: PTA calibration. Follow the instructions on the
screen.
Warning Manager
If the system discovers a fault, the helmsman is
informed by a message on the display. The fault mes-
sage must be acknowledged by pressing
OK
.
All faults are stored in the Warning Manager.
A fault message indicates the drivetrain affected,
describes the fault and suggests suitable actions.
For further information on fault messages, refer to
Fault Handling page 63.
3
4
1
2
5
P0001049

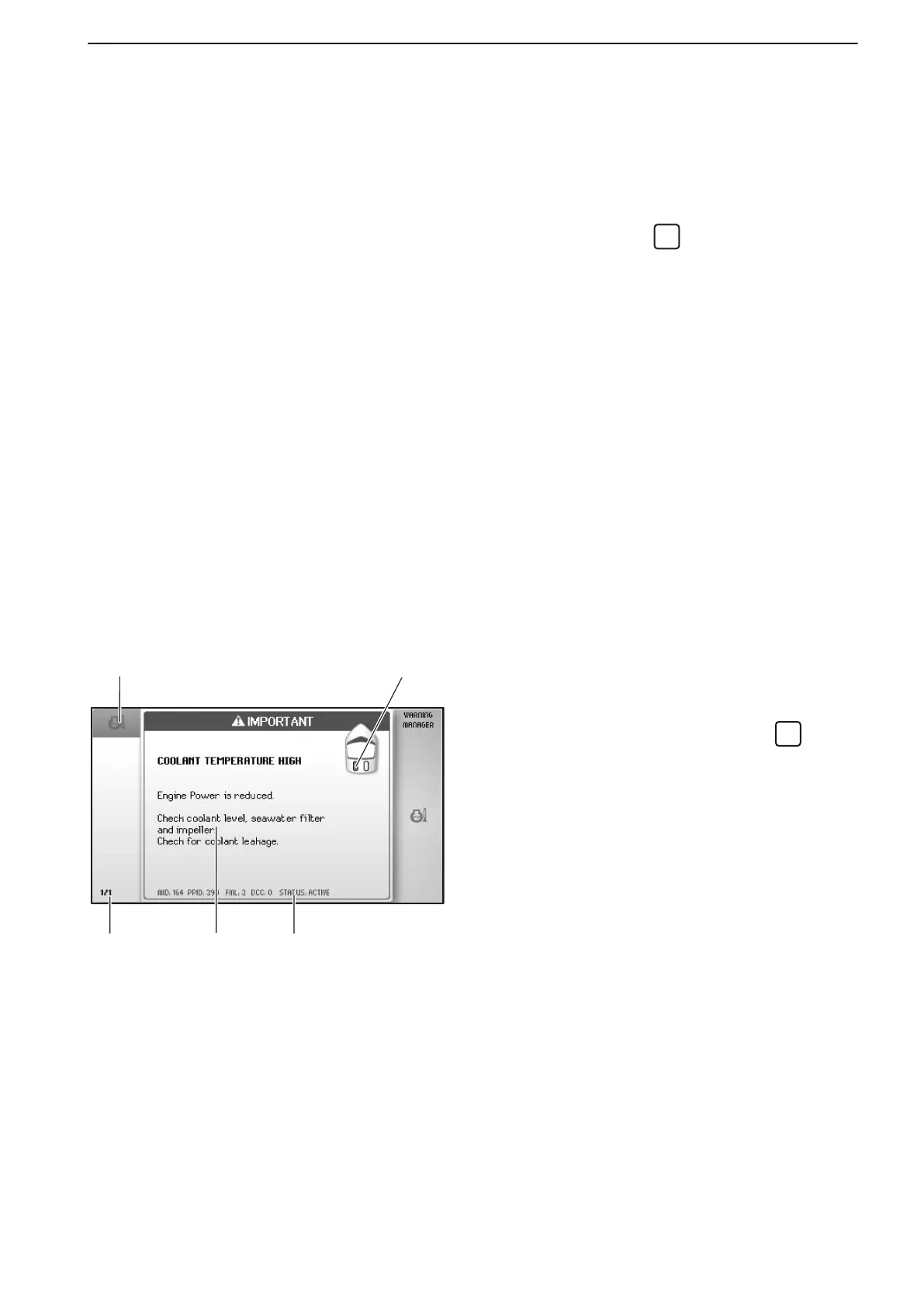

1 Symbol
2 Shows which driveline the fault was detected in.
3 List of registered faults; turn the knob to browse.
4 Fault message with description and suggestion for action.
5 Service information.
