Side mounted levers
1 TRIM
Trim the drive out//in.
For twin engine installations the adjustment of the
drives are synchronized.
For further information on Power Trim see Instru-
ments and Controls page 32.
2
Neutral position. The symbol shows that the drive/
reverse gear is disengaged.
The warning triangle lights up if the system discov-
ers a fault; refer to Fault Handling page 63 for
information.
This function is not available.
3 + / -
Fine tune the locked engine speed for tow mode (4)
or cruise control (5) by increasing (+) or reducing (-)
engine rpm.
4 TOW MODE
Accelerates the boat to a preset rpm.
Switch on toe mode by pressing the button.
Fine tune the locked engine speed by increasing (+)
or reducing (-) engine rpm with button (3).
5 CRUISE CONTROL (optional)
Switch on cruise control by pressing the button.
Fine tune the locked engine speed by increasing (+)
or reducing (-) engine rpm with button (3).
6 TRIM ASSIST (optional)
The Power Trim Assistant, PTA, adjusts the trim
angel automatically according to engine speed
(rpm), see Power Trim Assistant page 34 for infor-
mation.
7 THROTTLE ONLY
Disconnects the shift function so that the control
lever only affects engine speed; refer to "Disengag-
ing shift function" in this chapter for further informa-
tion.
8 Neutral interlock
The neutral interlock prevents acidentally moving
the throttle out of neutral.
Depress the interlock button to move control out of
neutral.
The neutral interlock will automatically re-engage
when the control handle is returned to the neutral
position.
TRIM
+
-
TOW
CRUISE
TRIM
ASSIST
1
2
3
4
5
6

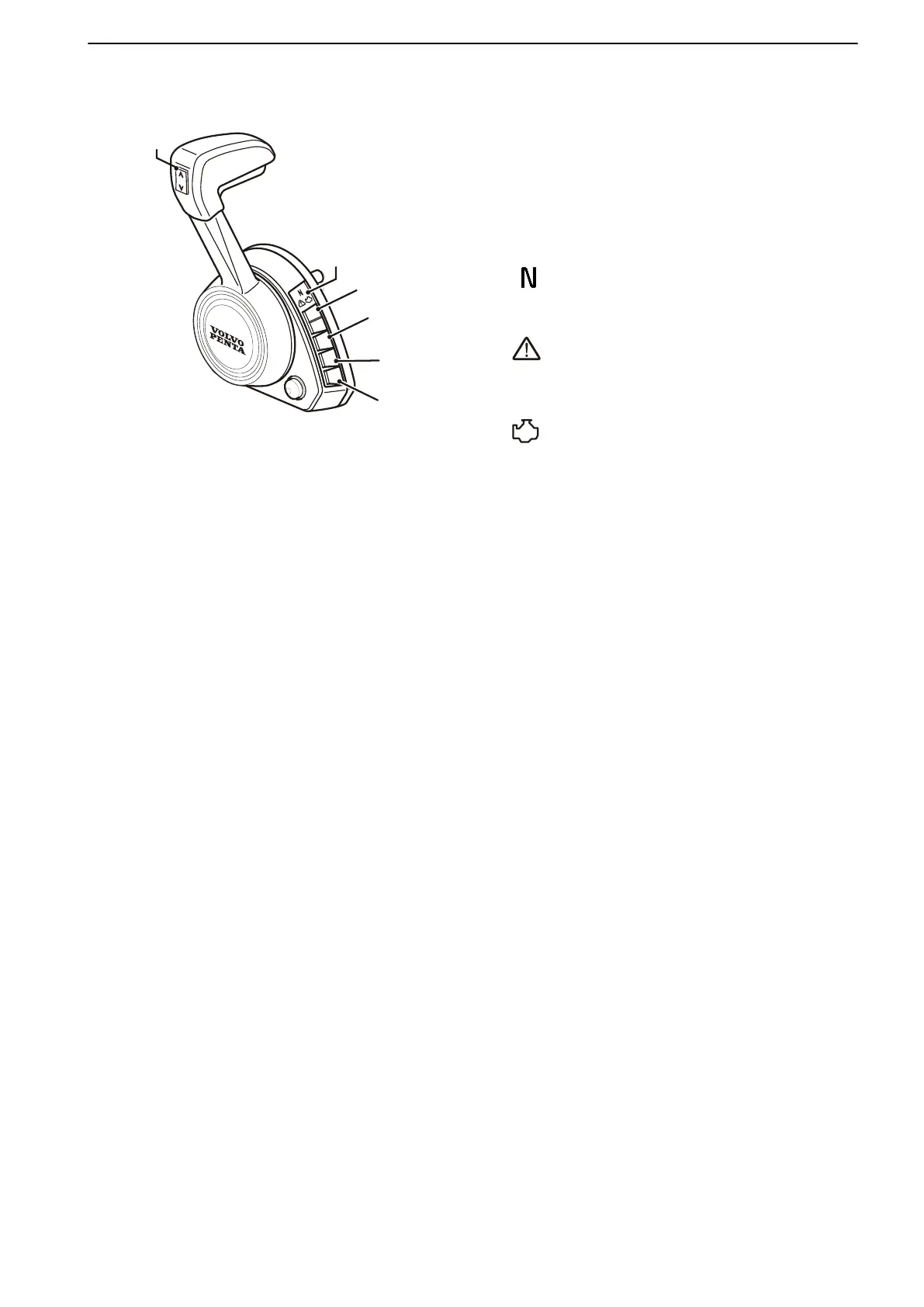

P0013210
