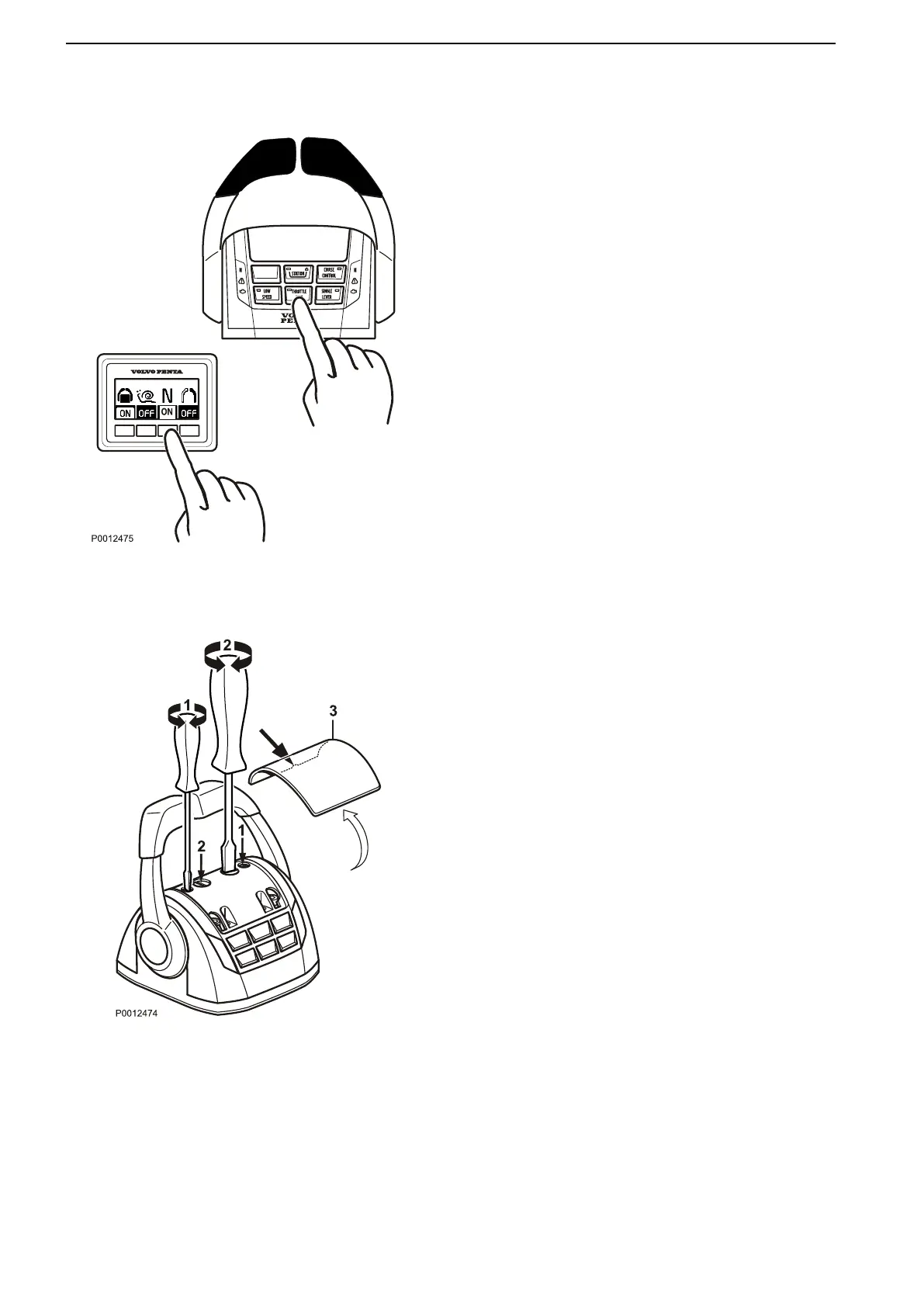

Disengaging the Shift Function
The gearshift function can be disconnected so that the
control lever only operates the throttle.
1 Put the control levers in neutral.
2 Press the control “Throttle Only” button or the
neutral button (N) on the helm station panel.
3 Release the button. The N symbol on the control
will light up as confirmation that the gearshift
function is disengaged and that the lever will
only affect engine revolutions.
To exit neutral mode, press the button again.
Adjusting the friction brake
Top mounted lever
The control lever has a friction brake that can be
adjusted for lighter or stiffer lever movement. Resist-
ance in click mode can also be adjusted.
1 Switch off the engine.
2 Remove the cover (3).
3 Adjust the friction brake (1) and/or click mode (2) by
turning the screw clockwise for stiffer lever move-
ment, and counterclockwise for lighter lever move-
ment.
4 Replace the cover.
Instruments and Controls
40 47705992 05-2015 © AB VOLVO PENTA
