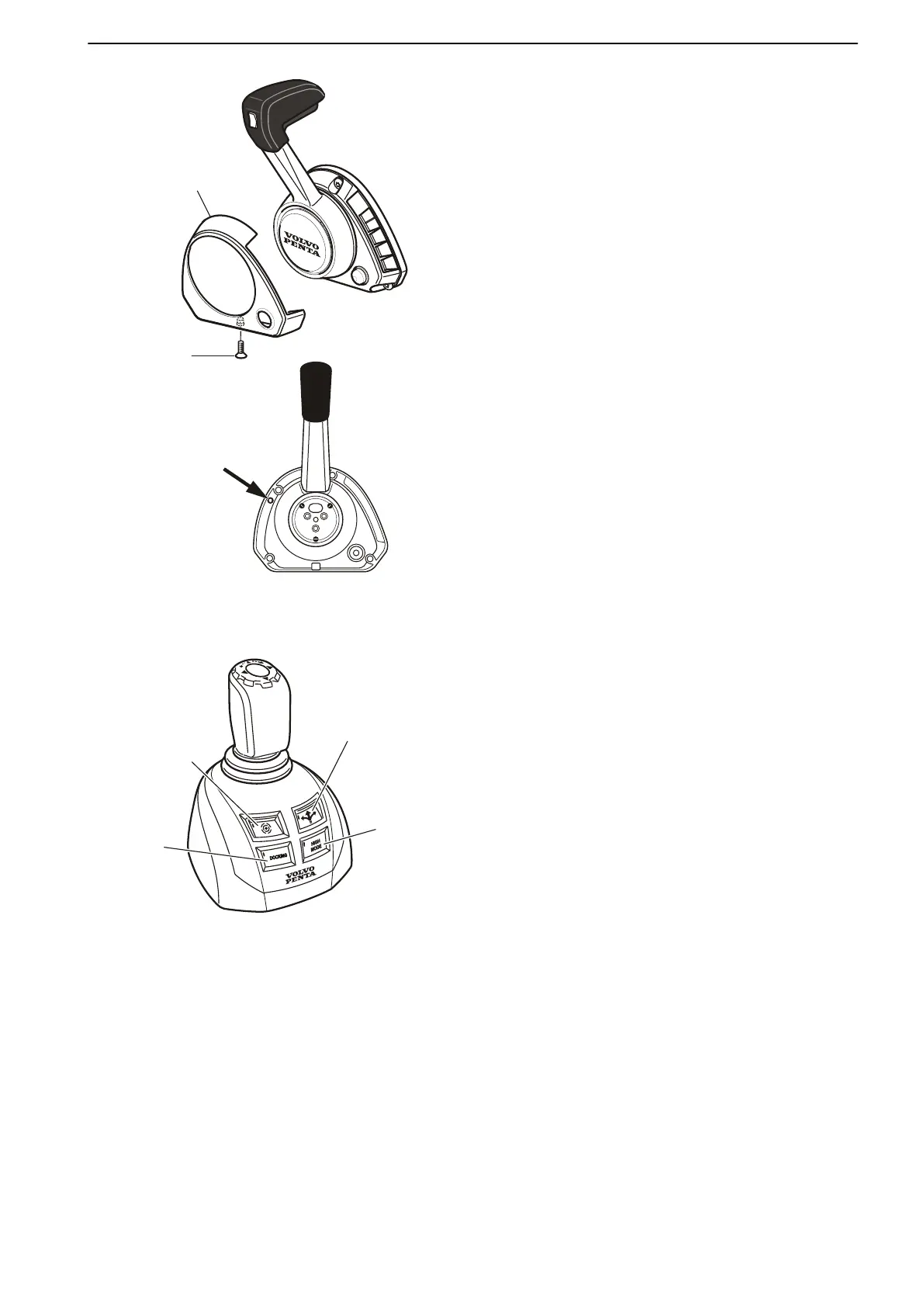

Side mounted levers
Adjust the resistance in the lever click mode.
1 Switch off the engine.
2 Unscrew the screw (1) and remove the cover (2).
3 Adjust the detention by turning the screw (3) with a
2.5 mm hex wrench. Turn the screw clockwise for
an increased detent , and counterclockwise to
decrease the detent.
4 Replace the cover.
Joystick
The joystick is optional. The features are controlled
with push buttons on the control. What buttons and
functions available is depending on the installation.
1 Docking
For operation and further function information, refer
to Joystick for docking page 43.
2 Dynamic Positioning System
For operation and further function information, refer
to Dynamic Positioning System.
3 Joystick Driving
For operation and further function information, refer
to Joystick Driving page 46.
4 High Mode
For operation and further function information, refer
to Joystick for docking page 43.
2
1
3
P0013443
1
2
3
4
P0016686
